hth Spare parts for Easiflo 1

Spare parts for Easiflo 1

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
hth Emergency Shut Off Valve Assembly E1 E3	hth Emergency Shut Off Valve Assembly E1 E3	13616	71496	£273.37 £227.81	- +	1 In stock
hth Rubber Gasket Emergency Shut Off Valve E1 E3	hth Rubber Gasket Emergency Shut Off Valve E1 E3	13617	71910	£22.62 £18.85	- +	1 In stock

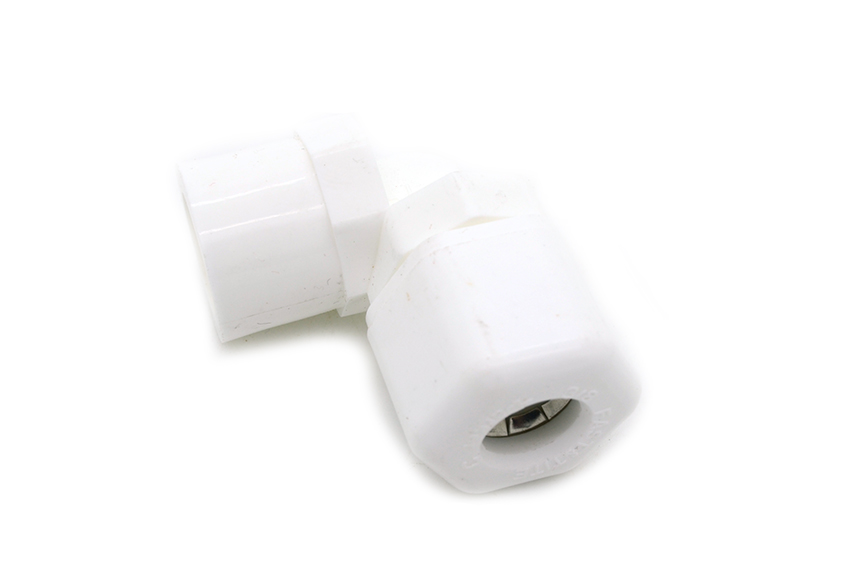

hth Parker Fitting FEM E1	hth Parker Fitting FEM E1	13618	74059	£27.90 £23.25	- +	Available for Back Order
hth Elbow 3/8 inch E1 E3	hth Elbow 3/8 inch E1 E3	13619	71619	£24.55 £20.46	- +	Available for Back Order
hth Emergency Shut Off Valve With Arm Only E1 E3	hth Emergency Shut Off Valve With Arm Only E1 E3	13621	71535	£164.09 £136.74	- +	Available for Back Order
hth Emergency Shut Off Float Plate PVC Nut E1 E3	hth Emergency Shut Off Float Plate PVC Nut E1 E3	13622	71538	£7.16 £5.97	- +	1 In stock
hth Emergency Shut Off Overflow Float E1 E3	hth Emergency Shut Off Overflow Float E1 E3	13623	71540	£32.26 £26.88	- +	2 In stock
hth Emergency Shut Off Float Plate E1 E3	hth Emergency Shut Off Float Plate E1 E3	13624	71539	£32.66 £27.22	- +	Available for Back Order
hth Emergency Shut Off Mounting Plate E1 E3	hth Emergency Shut Off Mounting Plate E1 E3	13625	71536	£17.24 £14.37	- +	1 In stock
hth Emergency Shut Off Mounting PVC Screws E1 (1/4 x 20 x 2 1/4)	hth Emergency Shut Off Mounting PVC Screws E1 (1/4 x 20 x 2 1/4)	13626	71537	£27.82 £23.18	- +	Available for Back Order
hth Discharge Valve Locknut E1 E3	hth Discharge Valve Locknut E1 E3	13627	71583	£9.65 £8.04	- +	Available for Back Order
hth Tube Connector 1/2 inch E1 E3	hth Tube Connector 1/2 inch E1 E3	13629	71614	£21.68 £18.07	- +	Available for Back Order
hth 1/2 inch x 1/2 inch Female Connector E1, E3	hth 1/2 inch x 1/2 inch Female Connector E1, E3	13630	71588	£39.62 £33.02	- +	Available for Back Order
hth 1/2 inch O.D PE Tubing - 1m length	hth 1/2 inch O.D PE Tubing - 1m length	13632	71626	£28.01 £23.34	- +	Available for Back Order
hth 1/2 inch PVC Closed Nipple E1 E3	hth 1/2 inch PVC Closed Nipple E1 E3	13633	71611	£21.47 £17.89	- +	Available for Back Order
hth Discharge Valve Gasket E1 E3 E4	hth Discharge Valve Gasket E1 E3 E4	13634	71576	£17.03 £14.19	- +	Available for Back Order
hth 1/2 inch Ball Valve MM (inlet)	hth 1/2 inch Ball Valve MM (inlet)	13636	71621	£187.76 £156.47	- +	Available for Back Order
hth 1/2 inch Ball Valve MF (outlet)	hth 1/2 inch Ball Valve MF (outlet)	13637	71627	£105.01 £87.51	- +	Available for Back Order
hth 3/8 inch PE Tubing - price per metre	hth 3/8 inch PE Tubing - price per metre	13638	71618	£2.53 £2.11	- +	1 In stock

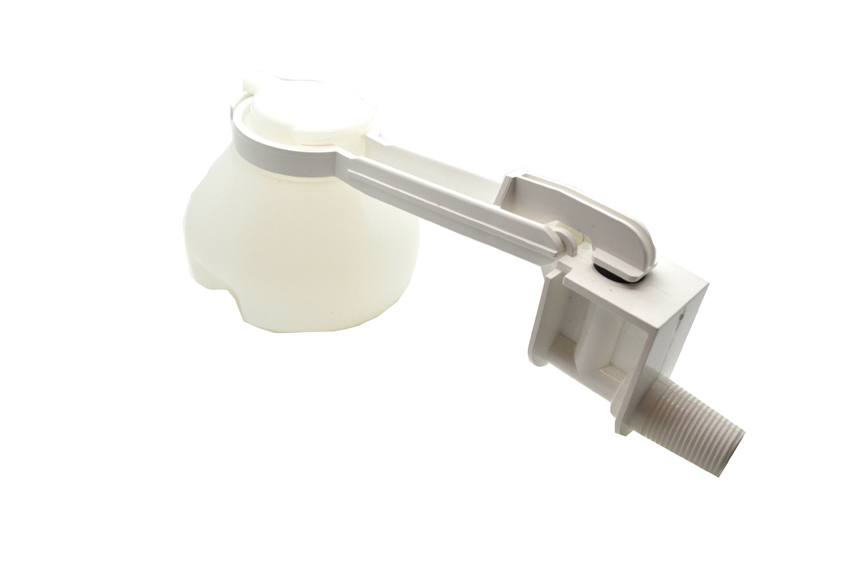

hth New Discharge Valve Assembly without Non Return Valve	hth New Discharge Valve Assembly without Non Return Valve	13897	79804	£217.98 £181.65	- +	Available for Back Order
hth New Discharge Valve Body - E1, E3	hth New Discharge Valve Body - E1, E3	19103	79806	£46.08 £38.40	- +	Available for Back Order

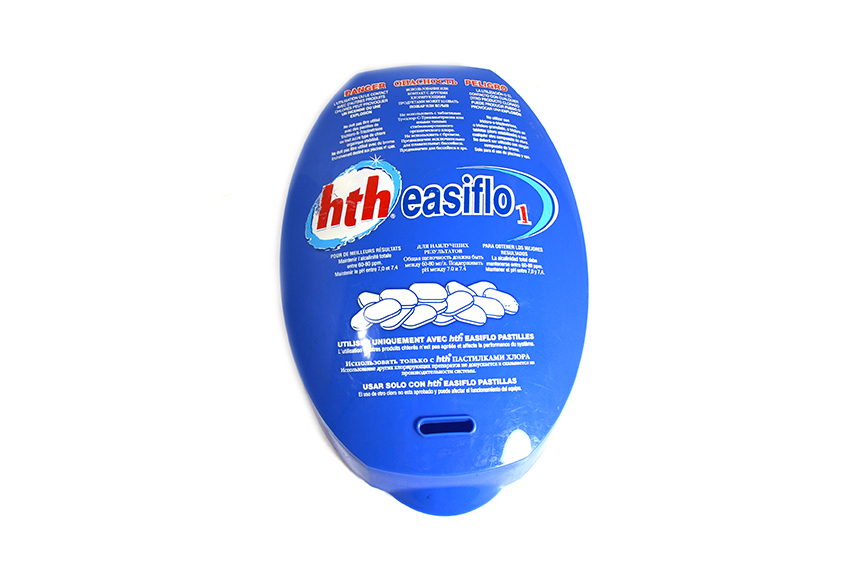

hth New Lid E1 EN/AR/GR	hth New Lid E1 EN/AR/GR	22064	79879	£170.70 £142.25	- +	1 In stock
hth Pin For Hinge (To adapt new lid to old hopper)	hth Pin For Hinge (To adapt new lid to old hopper)	22067	77333	£1.33 £1.11	- +	Available for Back Order
hth Discharge Valve Assembly with Non Return Valve	hth Discharge Valve Assembly with Non Return Valve	22216	79217	£266.87 £222.39	- +	Available for Back Order
hth Non Return Valve	hth Non Return Valve	22217	79218	£141.68 £118.07	- +	Available for Back Order
hth Grid E1 new with raised spikes Mid-High, Mid-Low	hth Grid E1 new with raised spikes Mid-High, Mid-Low	32510	71448	£21.06 £17.55	- +	Available for Back Order

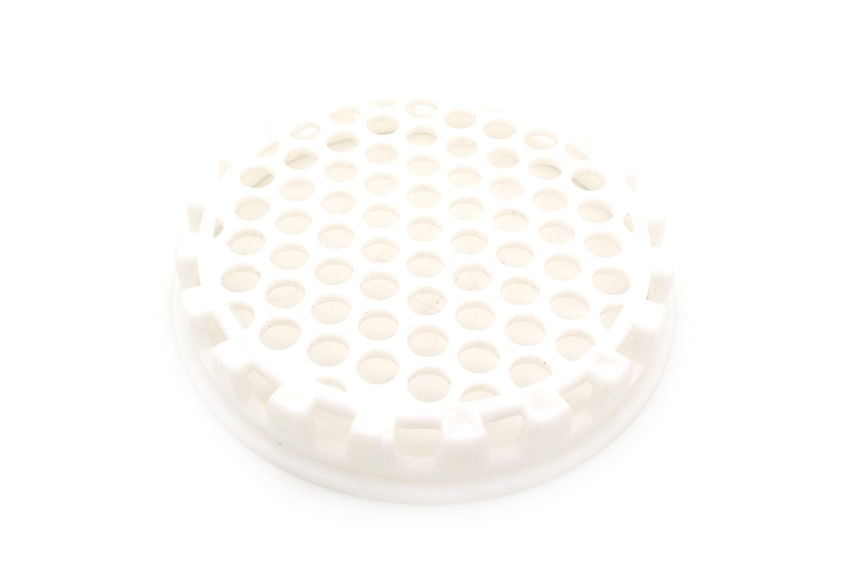

hth Grid E1 New Pan Shape	hth Grid E1 New Pan Shape	32513	77332	£18.01 £15.01	- +	Available for Back Order
hth Hopper E1 New Type	hth Hopper E1 New Type	32514	77334	£254.35 £211.96	- +	Available for Back Order
Hopper Grid Retaining Ring	Hopper Grid Retaining Ring	45433		£12.86 £10.72	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Spare parts for Easiflo 1

Specifications

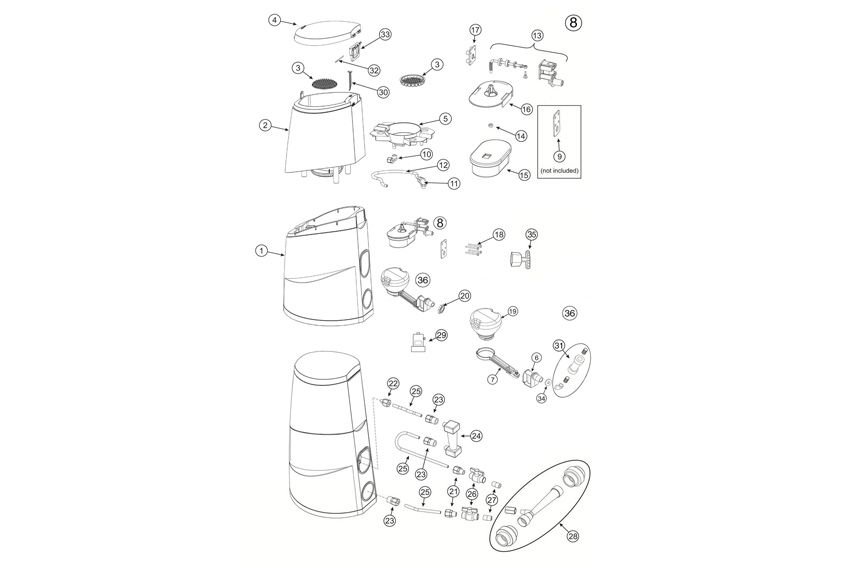

Sku	Description	Product Code	Picture Number	Additional Information
13612	Base E1	SPHTHEF74066	1
13615	Dissolving Cup With Nozzles Assembly E1	SPHTHEF74062	5	Fits early models & creates a fountain spray
13616	Emergency Shut Off Valve Assembly E1 E3	SPHTHEF71496	8	Requires parts 71910 & 71537 when fitting
13617	Rubber Gasket Emergency Shut Off Valve E1 E3	SPHTHEF71910	9
13618	Parker Fitting FEM E1	SPHTHEF74059	10
13619	Elbow 3/8 inch E1 E3	SPHTHEF71619	11
13621	Emergency Shut Off Valve With Arm Only E1 E3	SPHTHEF71535	13	Part 71910 required when fitting
13622	Emergency Shut Off Float Plate PVC Nut E1 E3	SPHTHEF71538	14
13623	Emergency Shut Off Overflow Float E1 E3	SPHTHEF71540	15
13624	Emergency Shut Off Float Plate E1 E3	SPHTHEF71539	16
13625	Emergency Shut Off Mounting Plate E1 E3	SPHTHEF71536	17	Secured by 71537 x4 not included
13626	Emergency Shut Off Mounting PVC Screws E1 (1/4 x 20 x 2 1/4)	SPHTHEF71537	18	This is for a pack of 4 Screws
13627	Discharge Valve Locknut E1 E3	SPHTHEF71583	20	Valve is sealed by part 71576 not included
13628	1/2 inch X 3/8 inch Male Connector Parker E4	71590		E4 only
13629	Tube Connector 1/2 inch E1 E3	SPHTHEF71614	22
13630	1/2 inch x 1/2 inch Female Connector E1, E3	SPHTHEF71588	23
13631	Flow Indicator E1	SPHTHEF74060	24
13632	1/2 inch O.D PE Tubing - 1m length	SPHTHEF71626	25
13633	1/2 inch PVC Closed Nipple E1 E3	SPHTHEF71611	27
13634	Discharge Valve Gasket E1 E3 E4	SPHTHEF71576	34 (Included with part 6)	While stocks last
13636	1/2 inch Ball Valve MM (inlet)	SPHTHEF71621	26
13637	1/2 inch Ball Valve MF (outlet)	SPHTHEF71627	26
13638	3/8 inch PE Tubing - price per metre	SPHTHEF71618	12
13639	3/8 inch PE Tubing - price per metre	SPHTHEF71574	12	When gone use 71558
13640	Solenoid Valve E1 E3	SPHTHEF77020	29
13897	New Discharge Valve Assembly without Non Return Valve	SPHTHEF79804	36
19103	New Discharge Valve Body - E1, E3	SPHTHEF79806	6
22064	New Lid E1 EN/AR/GR	SPHTHEF79879	4	79879 / 77336 / 77333 required to replace an old type lid
22065	Dissolving Cup With Nozzles Assembly E1 - New Wave Type	SPHTHEF77331	5	Requires to be used with New Type Hopper 77334 and Grids 77332 & 71448
22066	Hinge For Lid (To adapt new lid to old hopper)	SPHTHEF77336	33	79879 / 77336 / 77333 required to replace an old type lid
22067	Pin For Hinge (To adapt new lid to old hopper)	SPHTHEF77333	32	79879 / 77336 / 77333 required to replace an old type lid
22216	Discharge Valve Assembly with Non Return Valve	SPHTHEF79217	36
22217	Non Return Valve	SPHTHEF79218	31
32510	Grid E1 new with raised spikes Mid-High, Mid-Low	SPHTHEF71448	3	Goes with part 77332
32511	Hopper E1 old type	SPHTHEF74065	2
32512	E1 Lid	SPHTHEF74067	4
32513	Grid E1 New Pan Shape	SPHTHEF77332	3	Goes with part 71488
32514	Hopper E1 New Type	SPHTHEF77334	2	Used in conjunction with wave spray dissolving cup 77331 & grids 77332 & 71488

Can Be Used With

hth Easiflo Complete Feeder Units

Additional Info

SKU	MPN	Description	Picture Number	Additional Information
13612	74066	Base E1	1
13615	74062	Dissolving Cup With Nozzles Assembly E1	5	Fits early models & creates a fountain spray
13616	71496	Emergency Shut Off Valve Assembly E1 E3	8	Requires parts 71910 & 71537 when fitting
13617	71910	Rubber Gasket Emergency Shut Off Valve E1 E3	9
13618	74059	Parker Fitting FEM E1	10
13619	71619	Elbow 3/8 inch E1 E3	11
13621	71535	Emergency Shut Off Valve With Arm Only E1 E3	13	Part 71910 required when fitting
13622	71538	Emergency Shut Off Float Plate PVC Nut E1 E3	14
13623	71540	Emergency Shut Off Overflow Float E1 E3	15
13624	71539	Emergency Shut Off Float Plate E1 E3	16
13625	71536	Emergency Shut Off Mounting Plate E1 E3	17	Secured by 71537 x4 not included
13626	71537	Emergency Shut Off Mounting PVC Screws E1 (1/4 x 20 x 2 1/4)	18	This is for a pack of 4 Screws
13627	71583	Discharge Valve Locknut E1 E3	20	Valve is sealed by part 71576 not included
13628		1/2 inch X 3/8 inch Male Connector Parker E4		E4 only
13629	71614	Tube Connector 1/2 inch E1 E3	22
13630	71588	1/2 inch x 1/2 inch Female Connector E1, E3	23
13631	74060	Flow Indicator E1	24
13632	71626	1/2 inch O.D PE Tubing - 1m length	25
13633	71611	1/2 inch PVC Closed Nipple E1 E3	27
13634	71576	Discharge Valve Gasket E1 E3 E4	34 (Included with part 6)	While stocks last
13636	71621	1/2 inch Ball Valve MM (inlet)	26
13637	71627	1/2 inch Ball Valve MF (outlet)	26
13638	71618	3/8 inch PE Tubing - price per metre	12
13639	71574	3/8 inch PE Tubing - price per metre	12	When gone use 71558
13640	77020	Solenoid Valve E1 E3	29
13897	79804	New Discharge Valve Assembly without Non Return Valve	36
19103	79806	New Discharge Valve Body - E1, E3	6
22064	79879	New Lid E1 EN/AR/GR	4	79879 / 77336 / 77333 required to replace an old type lid
22065	77331	Dissolving Cup With Nozzles Assembly E1 - New Wave Type	5	Requires to be used with New Type Hopper 77334 and Grids 77332 & 71448
22066	77336	Hinge For Lid (To adapt new lid to old hopper)	33	79879 / 77336 / 77333 required to replace an old type lid
22067	77333	Pin For Hinge (To adapt new lid to old hopper)	32	79879 / 77336 / 77333 required to replace an old type lid
22216	79217	Discharge Valve Assembly with Non Return Valve	36
22217	79218	Non Return Valve	31
32510	71448	Grid E1 new with raised spikes Mid-High, Mid-Low	3	Goes with part 77332
32511	74065	Hopper E1 old type	2
32512	74067	E1 Lid	4
32513	77332	Grid E1 New Pan Shape	3	Goes with part 71488
32514	77334	Hopper E1 New Type	2	Used in conjunction with wave spray dissolving cup 77331 & grids 77332 & 71488
