SKU
G2221

Hydroquip Universal Lo Flow Rite-Fit Heaters

3Kw & 4Kw Lo-Flo heater assembly commonly found on Vita Spas.
Grouped product items
Product Name SKU MPN Price Qty Stock
Hydroquip Universal Lo Flow Rite-Fit Heaters - 3Kw Hydroquip Universal Lo Flow Rite-Fit Heaters - 3Kw 2705 27-V310-4T-K
£427.90 £356.58
- +
2 In stock
Hydroquip Universal Lo Flow Rite-Fit Heaters - 4Kw Hydroquip Universal Lo Flow Rite-Fit Heaters - 4Kw 4246 27-V310-5T-K
£427.90 £356.58
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

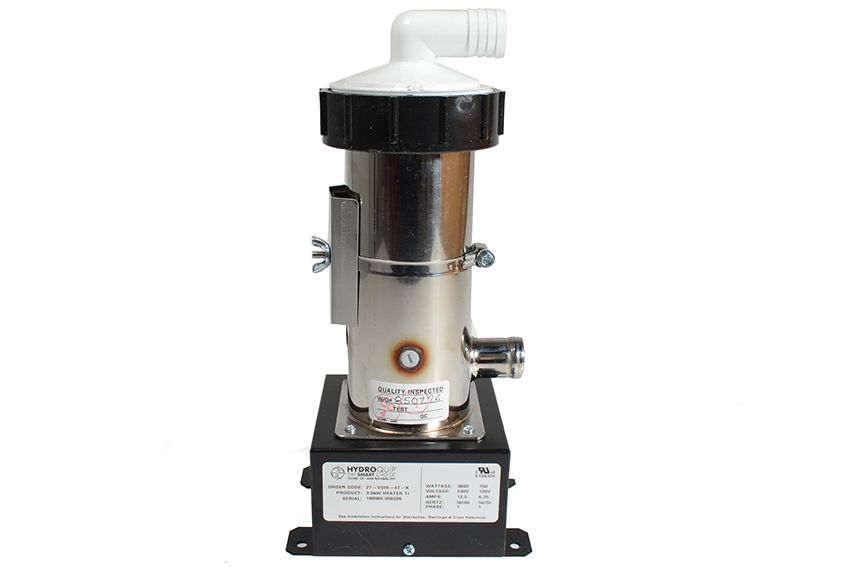

This is the Hydroquip Universal Lo Flow Rite-Fit Heater available in 3kW and 4kW titanium variants commonly found on some Vita Sps models. It is designed to replace a wide range of discontinued heaters as listed below and benefits from upgraded features.

  • Titanium Heater Element
  • Heater "On" Indicator Light
  • Hi-Limit Tripped Indicator Light
  • Built-In Manual Reset Hi-Limit
  • 3 Pressure Switch Tabs
  • Reversible Foot Bracket
  • Adjustable Sensor Cover Kit
  • Does not include pressure switch or sensors

Heater Height: 12 inches
Heater Tube Diameter: 4 inches
Heater width (Terminal box): 4.5 inches
Heater Inlet and Outlet: 1 inch (supplied with a 1" to 3/4" reducing kit) if you need more 1" pipe look here

27-V310-4T-K
kW Rating: 3 Kw
AMPs: 12.5
Volts: 240v
Hertz: 50/60
Phase: 1

27-V310-5T-K
kW Rating: 4 Kw
AMPs: 16.7
Volts: 240v
Hertz: 50/60
Phase: 1

Can be used as a replacement for the following discontinued heater codes:

3kW:
Aquatemp 20-00542
Aquatemp 26-08116
Thermcore E2300-0012
Thermcore E2300-0126ET
Thermcore E2300-0127ETX
Thermcore E2300-0321
Thermcore E2300-0321ET
Thermcore E2300-0542ET
Thermcore E2400-0003

4kW:
Aquatemp 26-00141
Aquatemp 26-00107
Thermcore E2400-0127ETX
Thermcore E2400-0202
Thermcore E2400-0202-1
Thermcore E2400-0204
Thermcore E2400-0204ET
Thermcore E2400-0003

Commonly used on Vita Spas

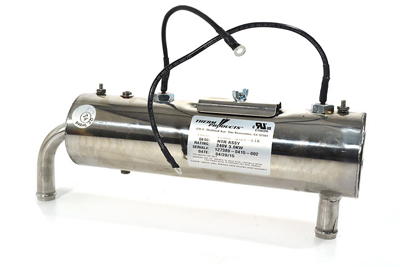

This heater is supplied with a separate 3-core power cable complete with 4-pin AMP plug. It also comes with a 1" to 3/4" reducing kit to connect to existing 3/4" pipe work which is required when replacing the discontinued Thermcore heater as shown below. Please see the manual in the associated documents above for installation.



Icon Label Type Size Download
pdf Lo-Flo Heater Manual pdf 4.9 MB Download
