Original Hotsprings Heater relay board 77119, it is specific to Caldera Spas and Hotspring spas
In-stock orders dispatched:14:00

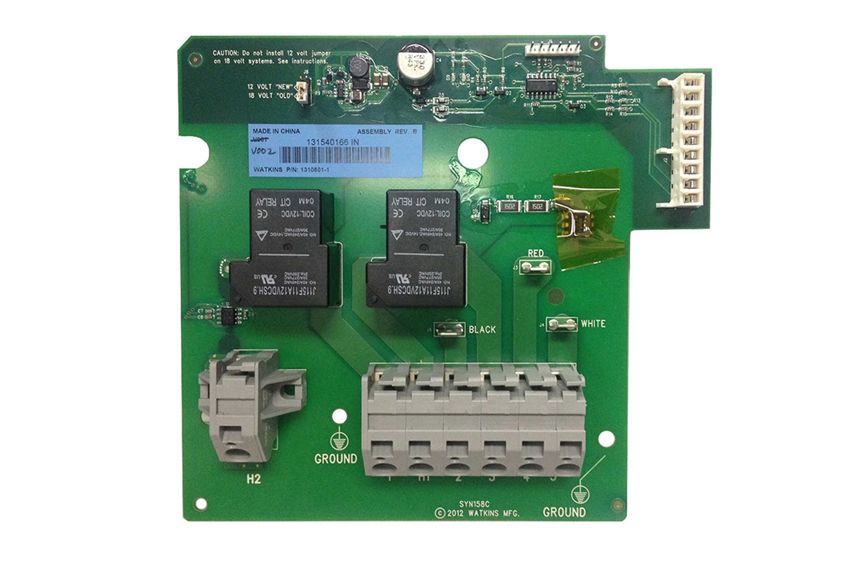

This is the original Heater Relay Board for Caldera, Hot Spring, Tiger River and Lime Light hot tubs.
Older boards have three relays, the newer boards have two.
This board is compatible with the IQ2020 packs, known formerly as 74618. Watkins P/N 1310801-1.
Also compatible with the IQ2020 Circuit Board 77088.
This hot tub circuit board must only be fitted to the hot tub control system specified, it should be fitted by a competent individual as all our boards are tested prior to sending out, so we recommend you read our easy to understand PCB installation notes in our troubleshooting section.
IMPORTANT INFORMATION:
Circuit boards and other computerised equipment are exempt from our returns policy if they have been opened or installed.
If the board is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the board is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.
This new board has a voltage jumper in the upper left corner that is factory set; although there is reference to instructions, No field action is required relative to this jumper at this time (it is for potential future use).
Known As:Hot Springs 77119Caldera 77119Tiger River 77119Lime Light 77119Watkins 77119Hot Springs 77119
