Rising Dragon Evolution Lighting System

Please remember that water and electricity are a deadly combination and do not mix. Use any of the information contained herein AT YOUR OWN RISK.

We will not be held liable for any injuries that may result from the troubleshooting advice or installation of any electrical components in your hot tub spa unit.

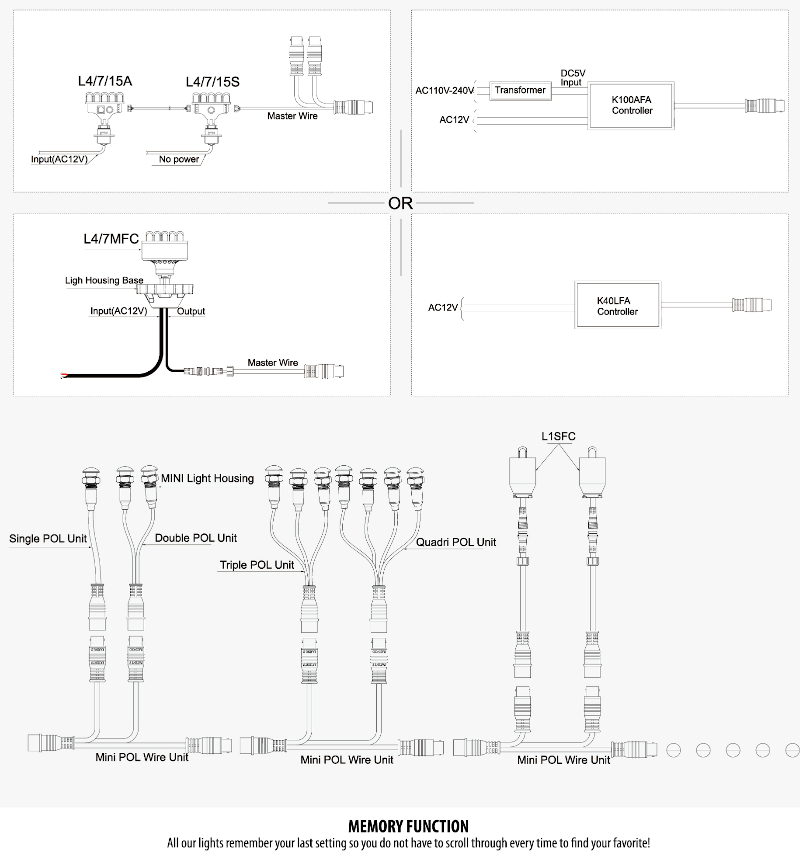

The Rising Dragon's Evolution system is molded plug daisy chain cording system, the system connects to your pack via a 12V AC source.

This either connects to your master main lights or to a separate controller. The master light or controller then connects to one or more slave lights, which are either large main lights or a harness array of POL's point of lights.

The multicolor LED lighting system giving six solid colors red, blue, green, yellow, white and purple and many light effects.

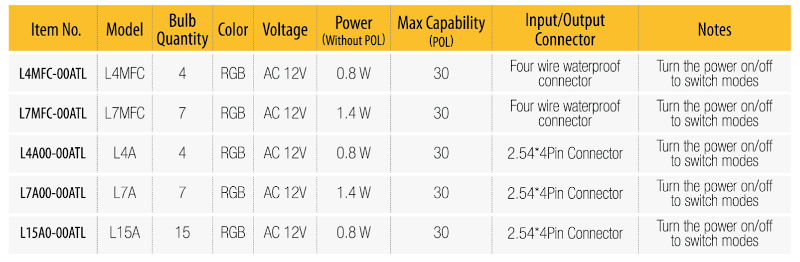

Master Lights

L4MFC-00ATL
L7MFC-00ATL
L15A0-00ATL

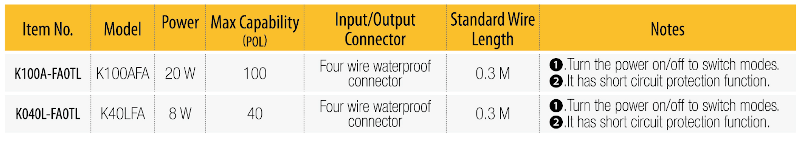

Controllers

K100A-FA0TL
K040L-FA0TL

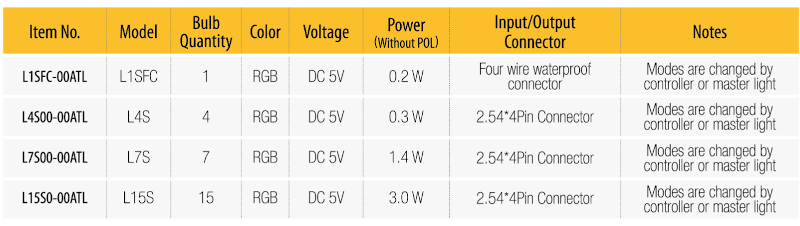

Slave Lights

L7S00-00ATL
L15S0-00ATL

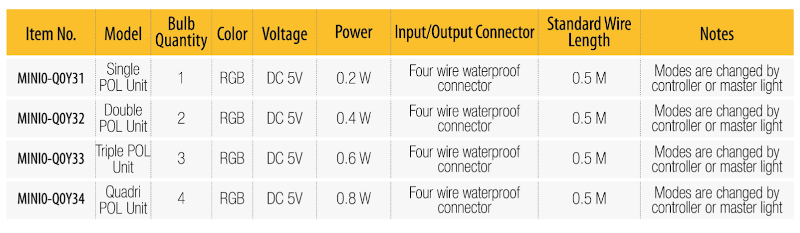

Mini POL's

MINI0-Q1Y31
MINI0-Q1Y32
MINI0-QY133
MINI0-QY134


Housing

Clear Housing
Opague Housings
POL Nut Housing
