Hydroquip Reference Chart.

Please remember that water and electricity are a deadly combination and do not mix. Use any of the information contained herein AT YOUR OWN RISK.

We will not be held liable for any injuries that may result from the troubleshooting advice or installation of any electrical components in your hot tub spa unit.



Hydroquip Reference Chart.

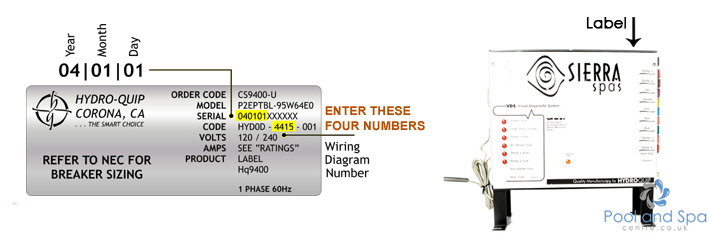

Identifying your requirements is easy with Hydroquip ? all information can be found by locating the label (found in the position below), from this you will be able to glean the following information:

Order code: This is the product number
Model: A breakdown of the unit
Serial Number: Product ID and date manufactured
Code: Diagram number of the unit

From this, access http://www.hotwatercontrols.com/doc.search.html using the highlighted information above to find the correct diagram ? be careful to enter the correct date as this ensures you are viewing the correct PCB revision.

Product Number Circuit Board Spaside Control Temp Sensor Hi-Limit Sensor
CS6100 / 9100* 33-0014R-R8 34-0207 34-0203 34-0201
CS6200 / 9200* 33-0024R-R6* 34-0208 34-0203D 34-0201D
CS6220 / 9220* 33-0024D-R3* 34-0208 34-0203D 34-0201D
CS6230 / 9230* 33-0024B-R4* 34-0197 34-0203D 34-0201D
CS6330 / 9330* 33-0024E 34-0197 34-0203D 34-0201D
CS6500 33-0012-R1 34-0208 34-0203D 34-0201D
CS7500 33-0012-R1 34-0200 34-0203D 34-0201D
CS9300 33-0018-R5 34-0190 34-0203 34-0201
CS9400 33-0025-R8** 34-0190 34-0203D 34-0201D
CS9700 33-0025A-R8 34-0190A 34-0203D 34-0201D

*Do not support fiber optics

** Packs manufactured prior to 2003 will require new a temp sensor (34-0203D), hi limit (34-0201D) and a new transformer kit (48-0099)
