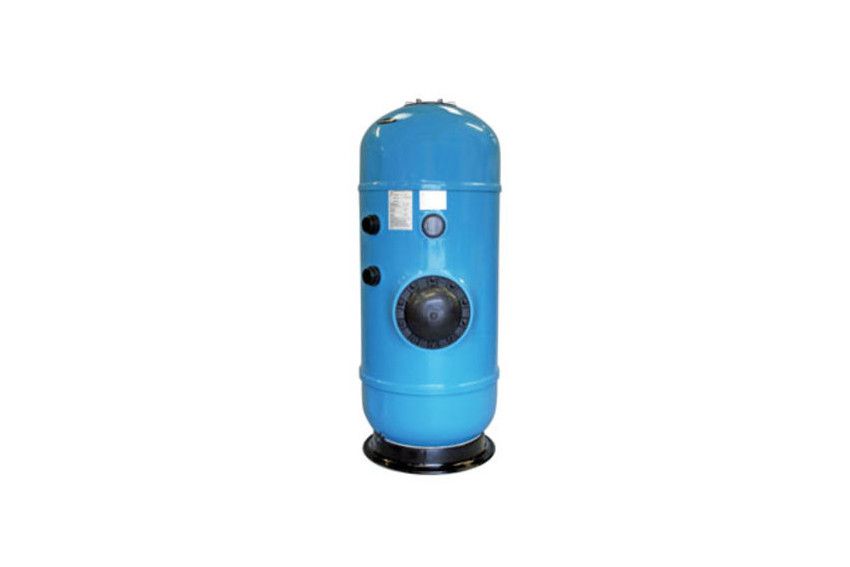

Lacron DBF Commercial Filters (Deep Bed Finaflow)

Lacron DBF Commercial Filters (Deep Bed Finaflow)
Grouped product items
Product Name SKU MPN Price Qty Stock
No options of this product are available.
Add to Wishlist

In-stock orders dispatched:14:00

The Lacron DBF (Deep Bed Filter) are ideal for commercial and domestic pools and spas which operate with warmer water and have a higher bathing load.



Lacron Deep Bed Finaflow Filters

Inside the filter all internal parts and pipe work are graded to the highest commercial standard, ensuring long life and minimal servicing. The DBF filter’s deep media bed ensures that finer dirt particles and colloidal substances are retained to a far greater level than with a filter with a shallower bed depth.


  • The main tank structure is made from extremely hard wearing glass reinforced polyester.
  • The smooth high glass internal and external finish ensures free flow and easy cleaning.
  • Lacron DBF filters are tested to 4 Bar and are designed to operate at a maximum pressure of 2.5 Bar.
  • Lacron Finaflow DBF with Side Hatch, Sight Glass and connecting unions.
  • Please note the Side Hatch and Sight Glass are not available on DBF-18
Filter Model A B C D E F G H I J X
DBF-24 230 625 260 1250 1750 1775 80 275 500 80 1300
DBF-30 230 780 275 1350 1860 1910 95 295 710 85 1525
DBF-36 230 948 300 1375 1900 1960 90 300 745 90 1550
DBF-42 230 1130 300 1400 1985 2010 105 325 1050 90 1580



Filter Model Tank Diameter
(mm)
Bed Depth
(mm)
Filter Area
(m²)
Valve Size
(Inch)
Pea Gravel
(KG)
Sand
(KG)
Max. flow
(m³/hr)
DBF-24 610 1300 0.300 2 75 500 15
DBF-30 760 1525 0.450 2 100 775 22.5
DBF-36 915 1500 0.660 3 150 950 33
DBF-42 1100 1580 0.970 3 150 1650 48.5
