G63

Laing 1.5Kw Triple Bend Heater (replacement)

This is the replacement for the Hot Springs Heater - triple bend 1.5Kw
Grouped product items
Product Name SKU MPN Price Qty Stock
Laing 1.5Kw Triple Bend Heater - Without Flow Switch Laing 1.5Kw Triple Bend Heater - Without Flow Switch 77 26-C3182-1S
£379.48 £316.23
- +
Available for
Back Order
Laing 1.5Kw Triple Bend Heater - With Flow Switch Laing 1.5Kw Triple Bend Heater - With Flow Switch 18491 26-C3073-1T-KF
£428.90 £357.42
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

A hugely popular heater for Hotsprings, this unit is a revision of the types shown below - its name reflects the fact that poor water chemistry maintenance can no longer be a cause to void the heater warranty - it is next generation...

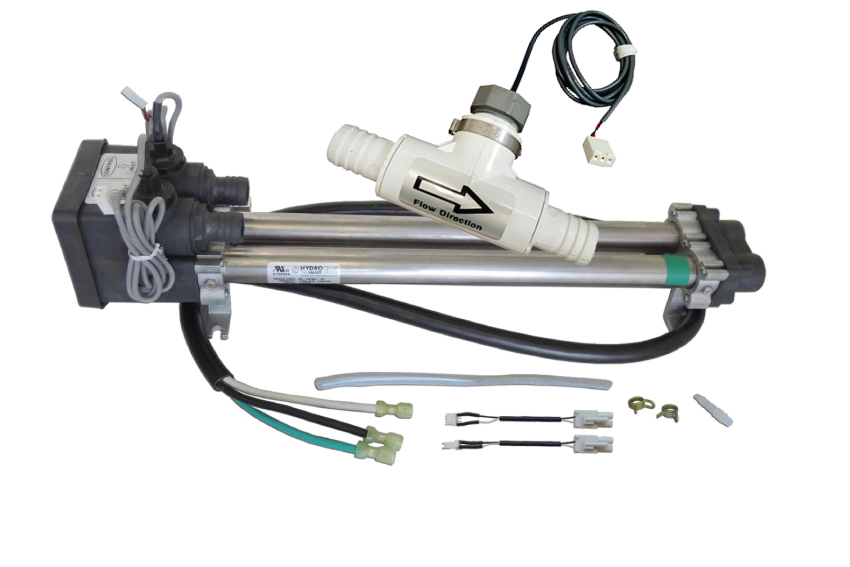

With Flow Switch

Replaces old numbers C3073-1, C3073-KIT, C307301KITTNB, 72796, 76229 - typically identified by a grey cable with a white plug that comes out of the heater black box and onto the circuit board.

It is now supplied with a flow switch kit which includes a straight flow switch (fitted with a 1 meter long cable and a 3-pin connector) and two pipe clamps which requires it to be installed into the plumbing line coming out of the heater. This assembly has an auto-reset Hi-Limit.

Please see the installation document in download.

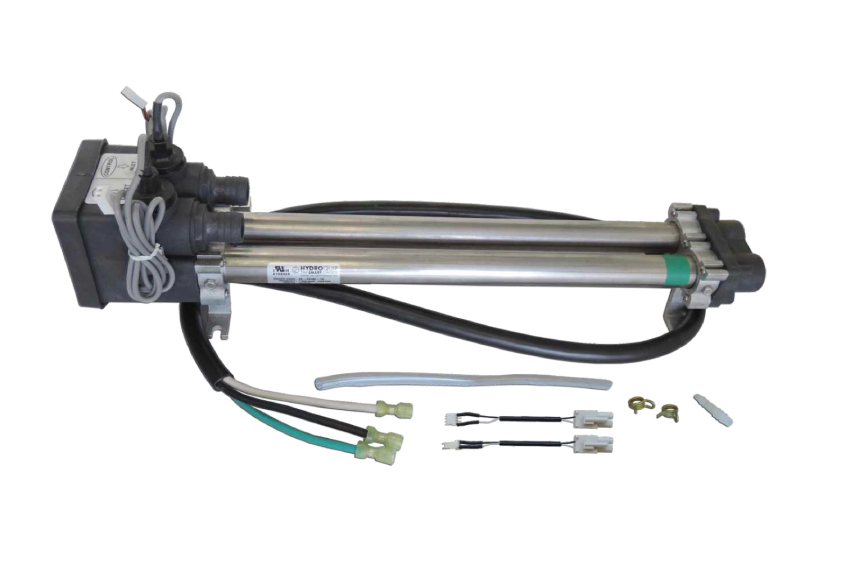

Without Flow Switch

Replaces old numbers C3564-3, C3182-1 & 73792, for identification it may have a little green Hi-Limit reset button on the rear of the heater

The table below will help you determine your type of heater but check all details prior to purchase

HotSpring 1997 - 2002 73792 Heater Assembly PDR
  2003 - Current 72796 Heater Assembly
Tiger River 1998 - 2nd Qtr 2005 73792 Heater Assembly PDR
  3rd Qtr 2005 - Current 72796 Heater Assembly
LimeLight 2008 - Current 73792 Heater Assembly PDR

Titanium Element

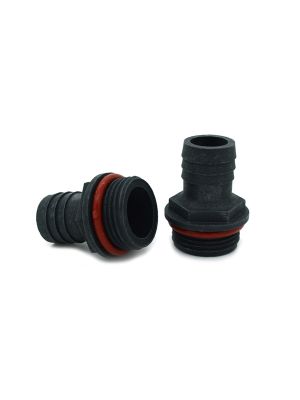

3/4" Inlet / Outlet Barb Fittings
Drain Tube External Kit
Auto Reset Hi-Limit thermostat
Temperature Sensors x 2
Plug Adaptors for IQ2000 Years 1995-2002

This heater has no power cord plug on the end like on the 1995-1996 spas.

Most applications require the heater to be connected directly inside the control box.

If your existing heater plugs into the control box bottom, you may require the appropriate adapter.

  • Overall length: 412mm
  • KW: 1.5
  • Amps: 6
  • Volts: 230
  • Hz: 50
  • Plumbing Connection: 3/4"

The above Hot Spring heater is the all new Laing replacement for the Paper-clip / Trombone (Laing Tri-Bend heater #6759) style heater.

It also replaces the Hotspring heater with the old 4 Streamlined double-pass design.



Icon Label Type Size Download
pdf Flow Switch Installation pdf 421.7 KB Download
