LX 1.5 inch heater with Thermoregulator

This is a thermostatic temperature controlled heater in 2 or 3 Kw variants....

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
LX 1.5 inch heater with Thermoregulator - 2Kw	LX 1.5 inch heater with Thermoregulator - 2Kw	21606	H20-RS1	£90.49 £75.41	- +	Available for Back Order
LX 1.5 inch heater with Thermoregulator - 3Kw	LX 1.5 inch heater with Thermoregulator - 3Kw	21607	H30-RS1	£80.29 £66.91	- +	27 In stock

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

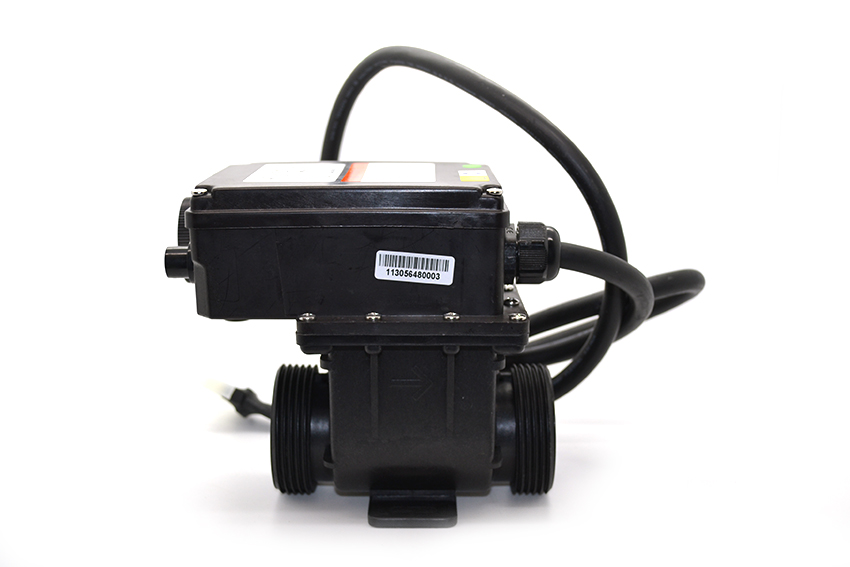

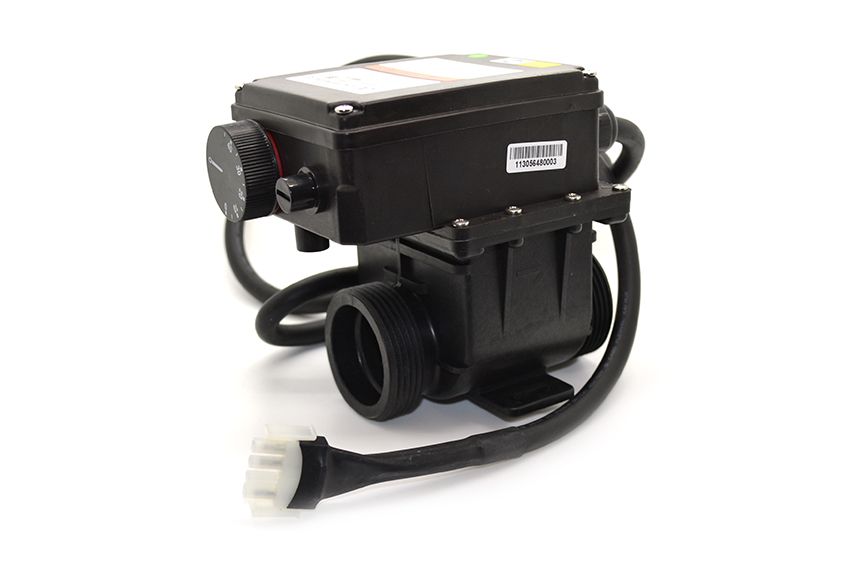

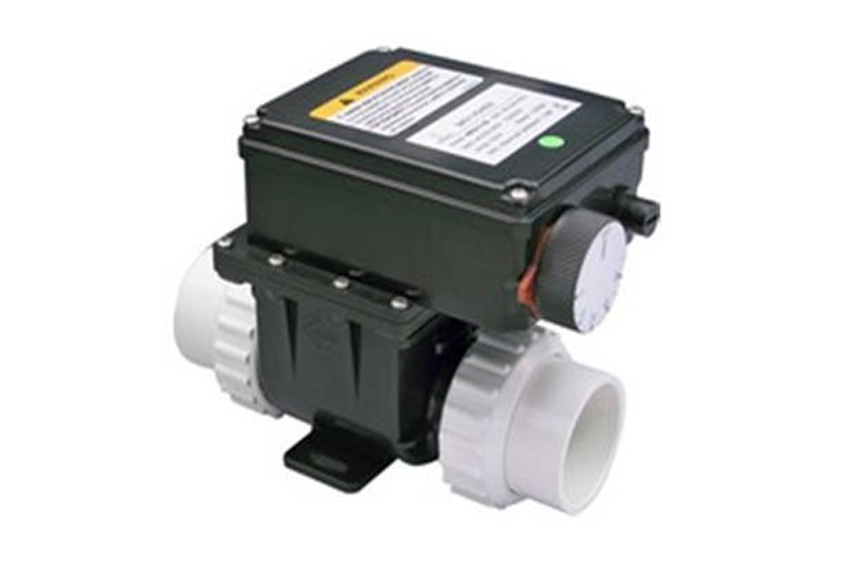

This is known as the Chinese LX Flow type Heater. It comes in two guises the 2Kw version - H20-RS1 and the 3Kw version H30-RS1.

This heater is nicely compact in size & comes complete with an auto hi-limit safety shut off and an adjustable thermostat allowing you to set your desired temperature without the worry of the water over heating. Simple and easy to install it is a very good seller

Dimensions

Heater Diameter: 50mm
Overall length complete: 340mm

This units are rated IPX5 and has CE approval.

3kW Flow is up to 3.6m3/h

Specifications

Type:	H20-RS1	H30-RS1
KW:	2.0	3.0
Amps:	9	13.4
Volts:	240vac	240vac
Hz:	50/60	50/60

Ideal For

This bath heater is an ideal way to keep the bath water warmer for longer periods of time.

Instructions

This is for reference only but typically they are installed in-line on the pump suction pipe and then wired in conjunction with your pump. This means it heats up to temperature when the pump is running and switches of when a pre-set temperature is reached.

Includes

Comes complete with cable, unions and o rings.

Compatibility
