SKU
G2219

LX Chinese Style 3KW H30-R2 Heater - L-Shape

Chinese LX Whirlpool Bath (L-Shape). H30-R2. There are two options available....
Grouped product items
Product Name SKU MPN Price Qty Stock
LX Style 3KW H30-R2 Heater - L-Shape - With Cable LX Style 3KW H30-R2 Heater - L-Shape - With Cable 2703 H30-R2 (with p/s cable)
£65.56 £54.63
- +
Available for
Back Order
LX Style 3KW H30-R2 Heater - L-Shape - Without Cable LX Style 3KW H30-R2 Heater - L-Shape - Without Cable 21604 H30-R2 (without p/s cable)
£64.08 £53.40
- +
23 In stock
Add to Wishlist

In-stock orders dispatched:14:00

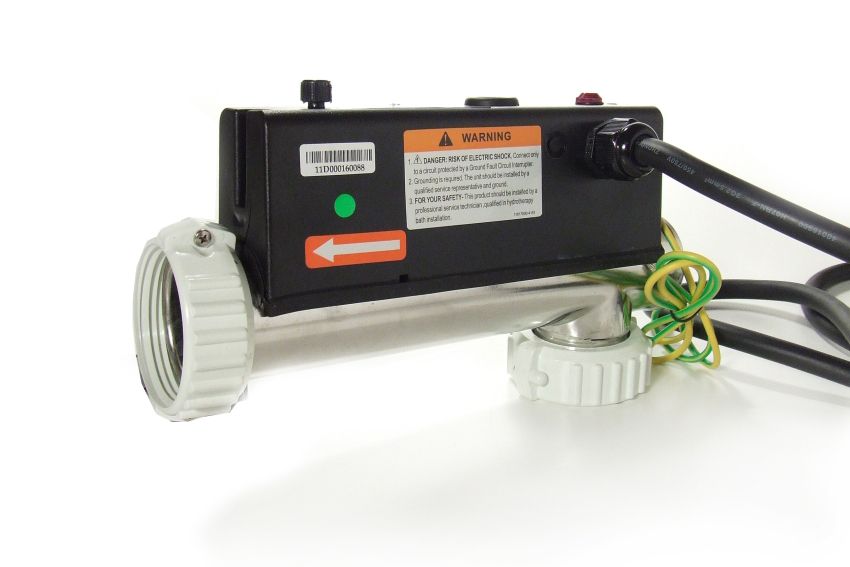

Chinese LX Whirlpool Bath (L-Shape). H30-R2 heater assembly.1.5" white plastic female sockets connect to the plumbing.

These heaters whichever option you choose have an in built hi-limit reset switch, the difference between them comes with whether your pressure switch is run with a 2 pin JST style connector which connects direct to the printed circuit board (with cable), or whether it comes without the pressure switch cable.

  • Heater length: 147mm
  • Heater Diameter: 50mm
  • Overall height: 150mm

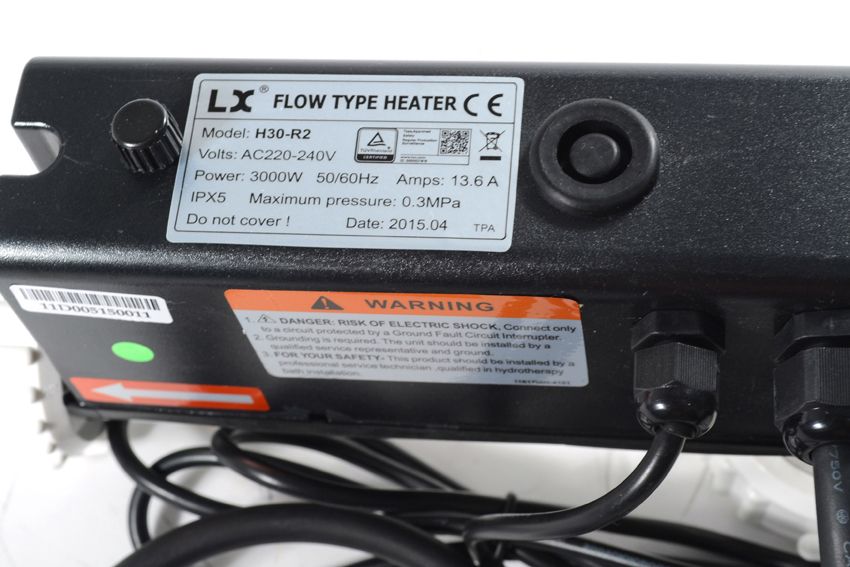

  • Volts: 230
  • Hz: 50
  • KW: 3.0
  • Amps: 13.6

Most Chinese spas with a small plumbing change. This unit replaces the Rooster heater. It is longer than the Rooster so you may need to alter the plumbing slightly.

The required flow rate is set by a pressure switch, which needs to be pressurised, if running straight to a large bore outlet with no bends, there may be no back pressure meaning this item may not work.

This unit is rated IPX5 and has CE approval.
