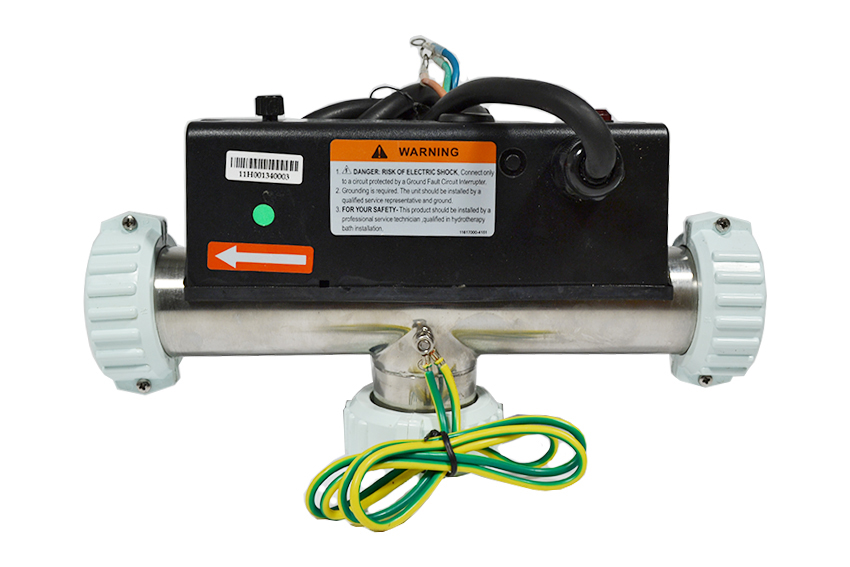

LX Chinese T-Shaped Style 3KW H30-R3 heater

This is a T-Shaped chinese heater, typically has a H30-R3 reference number. The heater has a built in high limit reset and pressure switch.

You need to decide if you need the heater with and without a pressure switch cable. The pressure switch cable (if present) is a second cable connected to the box of the heater, which is thinner than the main power cable. If your old heater has two cables, then choose a heater with a pressure switch cable; otherwise chose the version without one!

• Complete Length: 340mm
• Heater Diameter: 50 mm
• Height 200 mm
• Connects to 1.5" pipe which measure 48mm OD

• KW: 3.0
• Amps: 13.6
• Volts: 230
• Hz: 50

These are used primarily for Chinese spas where you may require a plumbing change or as a remote heater on a project

These heaters whichever option you choose have an in built hi-limit reset switch, the difference between them comes with whether your pressure switch is run with a 2 pin JST style connector which connects direct to the printed circuit board (with cable), or whether it comes without the pressure switch cable.

This heater is slightly longer than the Old Rooster type so you will need to alter the plumbing.
