SKU
G27862

Mr. Silence 30 Heat Pump Range

Grouped product items
Product Name SKU MPN Price Qty Stock
Mr.Silence30 Heat and Cool Pump MPXC100 Mr.Silence30 Heat and Cool Pump MPXC100 50964 MPXC100
£1,380.24 £1,150.20
- +
7 In stock
Mr.Silence 30 Heat and Cool Pump MPXC150 Mr.Silence 30 Heat and Cool Pump MPXC150 50965 MPXC150
£2,041.20 £1,701.00
- +
6 In stock
Add to Wishlist

In-stock orders dispatched:14:00

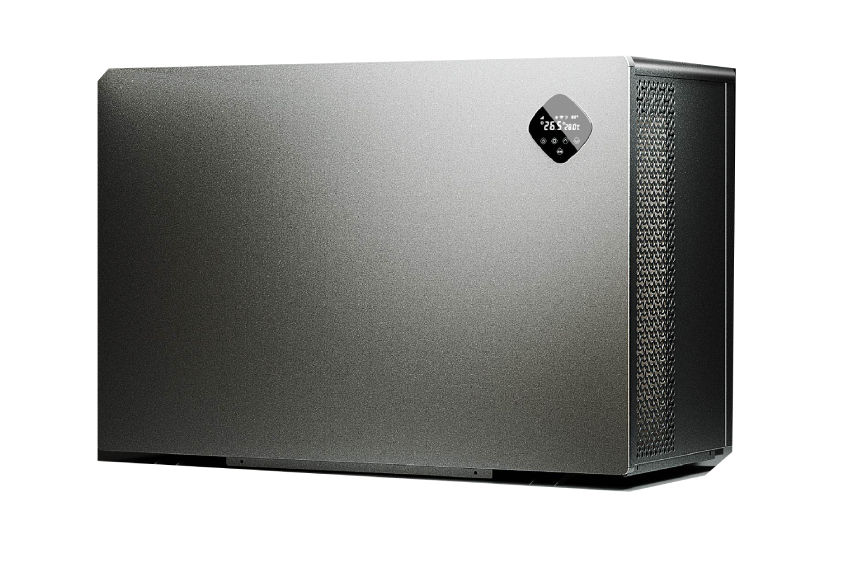

 The NEW Mr Silence 30 heat pump.

  • With an improved inverter control system, Mr.Silence 30 will smartly adjust EVO reverse cycle defrosting to ensure maximized heat output, contributes biggest efficiency under harshest condition.

  • Based on InverPad® Turbo Tech, Mr.Silence 30 has remarkable systematic optimization which boost COP up to 22. Perfectly matching of compressor, motor and EEV for higher efficiency, 1kW electricity brings a maximum 22kW heat output in return, providing average 95% free energy from ambient air.

  • 36.4 db(A), Born for Silence

  • InverPad® Turbo is an innovative and patent developed by Aquark. It redefines the pool heating industry with its unique Pad design, revolutionary Turbofan,and Stepless DC inverter technology. Aquark strives to minimize the carbon footprint and contribute sustainable

  • environment through technology innovation. By leveraging Turbofan’s

  • ventilation system and self-developed inverter control system, Mr.Silence 30

  • pushes the boundary of what’s possible again. It sets a new milestone in 30,times silence while achieving efficiency up to COP 22 and optimally operate

These also heat and cool as a heat pump.

Parameters of Mr. Silence 30
Model MPXC100 MPXC150
Operating air temperature (℃)  -20℃~43℃
Advised pool volume (m3) * 20-35 30~55
Gas
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Turbo Mode (120%) Heating capacity (kW) 10.2 15.0
Perfect Mode Heating capacity (kW) 7.8 11.6
COP 19.5~7.8 20~8.1
Average COP 14.4 14.8

PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Turbo Mode (120%) Heating capacity (kW) 7.0 9.8
Perfect Mode Heating capacity (kW) 5.5 7.8
COP 7.9~5.6 8.4~5.6
Average COP 7.1 7.6
PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humid. 80%
Cooling capacity (kW)    4.8 6.7
TECHNICAL SPECIFICATIONS
Casing Aluminum-alloy Casing
Power supply 230V~/1Ph/50Hz
Rated input power (kW) 0.16~1.35 0.23~1.88
Input power at 50% speed (kW) 0.49 0.64
Rated input current (A) 0.70~5.87 1.00~8.17
Sound level at 1m dB(A) 36.0~41.8 36.3~43.9
Sound level 50% at 1m dB(A) 36.4 38.4
Sound level at 10 m dB(A) 16.0~21.8 16.3~23.9
Advised water flux (m³/h) 2~4 3~4
Water connection (mm) 50mm /48.3mm
Net dimension LxWxH (mm) 936*494*655 936*494*655
Net Weight (kg) 83 83
Qty per 20’FT/40'HQ (sets)(By rail)   60/132
Qty per 20’FT/40'HQ (sets) 60/132 60/132
  Remarks:   * The data above is only for reference. For specific data, please refer to the nameplate on the unit.
                   * Advised pool volume applies to a private pool with isothermal cover, from April to September.

Maximum input current (A) 9.0 12.5
breaker rated current (A) 11.0 15.0
Power cord (mm²) 3×1.5 3×2.5
R32 Gas Weight (g) 1150 1250
Gross Weight (kg) 92 92
Packaging dimension LxWxH (mm)(By rail)   1020*555*690
Packaging dimension LxWxH (mm) 1005*550*685 1005*550*685
Icon Label Type Size Download
pdf Mr Silence 30 User Manual pdf 2.6 MB Download
