SKU
G10429

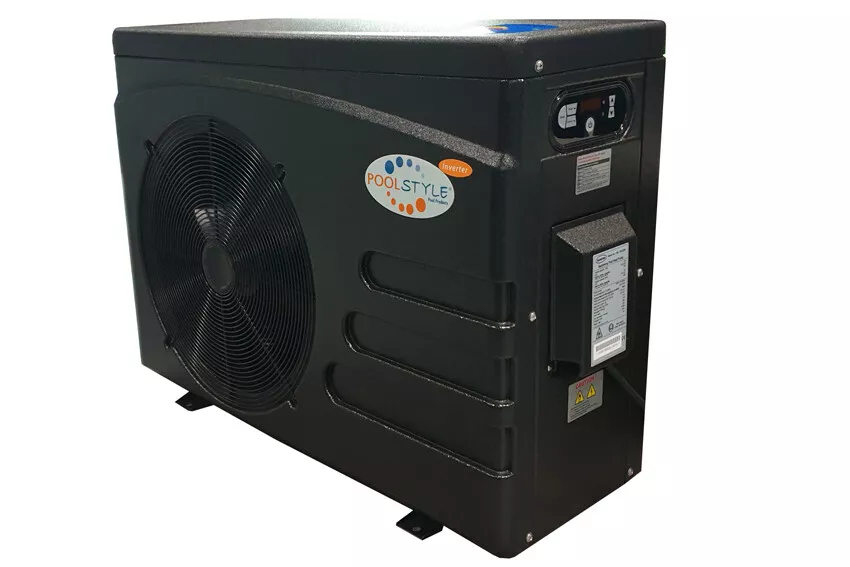

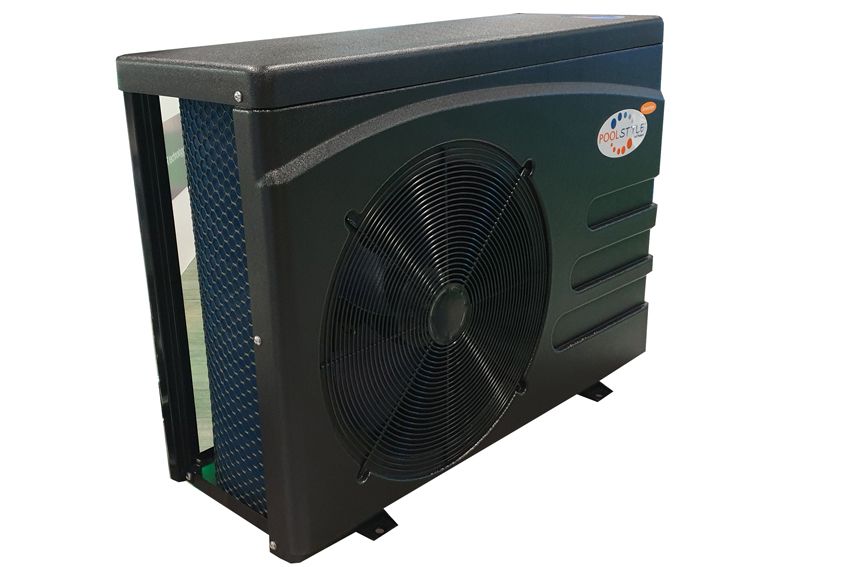

PoolStyle Inverter Heat Pumps Single Phase

With it's HP-Booster technology, it allows 20% higher COP than most on/off pumps on the market.
Grouped product items
Product Name SKU MPN Price Stock
Poolstyle - Inverter C/W WIFI - 7kW Poolstyle - Inverter C/W WIFI - 7kW 45411 PSL-150-0023
£1,264.79 £1,053.99
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 9kW Poolstyle - Inverter C/W WIFI - 9kW 45412 PSL-150-0024
£1,581.71 £1,318.09
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 11kW Poolstyle - Inverter C/W WIFI - 11kW 43395 PSL-150-0206
£1,895.46 £1,579.55
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 15kW Poolstyle - Inverter C/W WIFI - 15kW 43396 PSL-150-0265
£2,532.62 £2,110.52
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 18kW Poolstyle - Inverter C/W WIFI - 18kW 43397 PSL-150-0208
£2,957.66 £2,464.72
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 21kW Poolstyle - Inverter C/W WIFI - 21kW 43398 PSL-150-0209
£3,458.18 £2,881.82
Available for
Back Order
Poolstyle - Inverter C/W WIFI - 24kW Poolstyle - Inverter C/W WIFI - 24kW 45087 PSL-150-0034
£4,311.46 £3,592.88
Available for
Back Order

In-stock orders dispatched:14:00

Poolstyle Inverter is powered by an inverter compressor, it can adjust the heating capacity from 20% to 100% intelligently according to different heating demands. When the season starts and heating demand is high, the Poolstyle Inverter compressor & fan run at 100% for fast heating. When maintaining the pool temperature, the Poolstyle Inverter runs at low speed for energy saving with higher COP. It also has an operating air temperature of -10°C to +43°C.





High Efficiency

Thank to its full DC inverter technology, DC compressor & DC fan motor, the Poolstyle has a much higher efficiency than the ON/OFF heat pumps, thus, contributing to saving more on your energy bill.



Fast Heating

By adopting the brushless DC fan motor and inverter compressor, Poolstyle can smartly adjust the speed of compressors and fan motors according to the temperature of air and water temperature, which enables the heat pump to heat your pool fast.



Soft Start

The Poolstyle can achieve completely soft switching at the start-up stage from an intensity of 0A to 28A (at maximum). While the normal ON/OFF heat pumps start in a current intensity over three times higher, which will greatly impact the electricity system.



Quiet Operation

Poolstyle can run amazingly quiet at 20dB(A) in silent mode, which is quieter than a whisper.

Model PSL-150-0206 PSL-150-0207 PSL-150-0208 PSL-150-0209
Advised pool volume (m³) 30-55 35-70 45-85 55-100
Operating air temperature (C) 0~43 0~43 0~43 0~43
Performance condition: Air 26°C, Water 26°C, Humidity 80%
Heating capacity (kW) 12.5 16.5 20.0 25.0
COP 10.5~5.9 10.0~5.7 10.6~5.6 10.2~5.8
COP at 50% capacity 9.2 8.8 8.9 8.8
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW) 9.0 11.5 14.0 17.0
COP 5.9~4.2 6.0~4.2 6.0~4.1 6.0~4.3
COP at 50% capacity 5.8 6.0 5.8 5.8
Sound pressure at 1m dB(A) 42.9~53.0 45.2~56.3 45.3~57.1 45.8~57.8
Sound pressure of 50% capacity at 1m dB(A) 48.5 48.7 49.6 50.1
Sound pressure at 10dB(A) 22.9~33.0 25.2~36.3 25.3~37.1 25.8~37.8
Heat exchanger Spiral titanium tube in PVC Spiral titanium tube in PVC Spiral titanium tube in PVC Spiral titanium tube in PVC
Casing ABS casing ABS casing ABS casing ABS casing
Rated input power at air 15°C (kW) 0.36~2.1 0.57~2.7 0.62~3.4 0.70~3.95
Rated input current at air 15°C (A) 1.57~8.7 2.48~11.7 2.7~15.0 3.04~17.1
Power supply 230V/1 Ph/50Hz 230V/1 Ph/50Hz 230V/1 Ph/50Hz 230V/1 Ph/50Hz
Advised water flux (m³/h) 4~6 6~8 8~10 10~12
Water pipe in-out size(mm) 48 48 48 48
Net Dimension LxWxH (mm) 872x349x654 962x349x654 962x349x754 1092x420x958
Net weight (kg) 49 60 68 90



  • The advised pool volume indicated applies under following conditions : Swimming pool is well covered, system runs at least 15 hours per day,
  • Above data is subject to modification without further notice.

WIFI Box Standard

  • Real-time monitoring
  • Control anytime anywhere
Icon Label Type Size Download
pdf Poolstyle Manual pdf 6.2 MB Download
