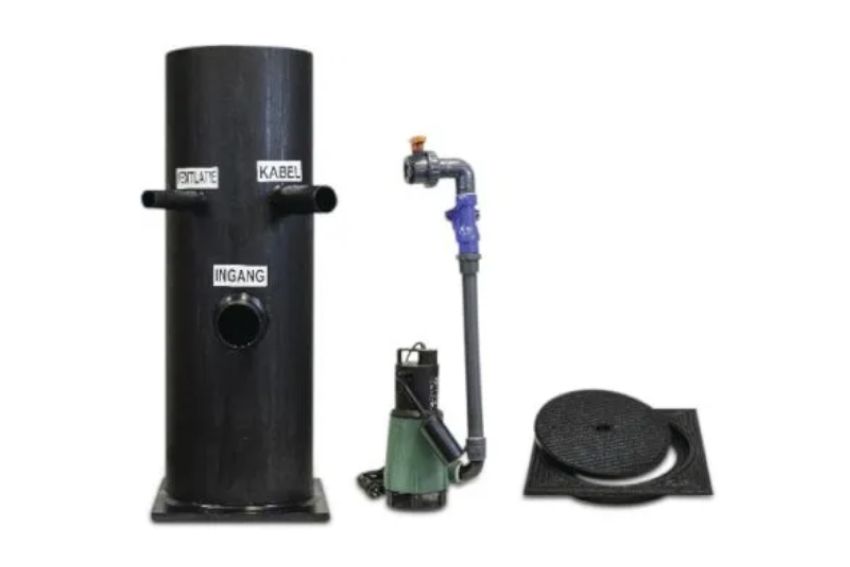

DAB Assembled pump sump PE 4,3A 230VAC black type PE412 Complete

PE pump sump fitted with Feka 600 MA submersible sewage pump. Ideally suited for wastewater, sewage and rainwater harvesting, with solids not exceeding 25mm.

Fully assembled and fitted with:

• PE pump sump ø 400 x 1200 mm
• Flat bottom
• 1x inlet ø 125 mm
• 1x outlet ø 40 mm
• 1x cable duct ø 75 mm
• 1x Feka 600 MA
• 1x installation set consisting of ball valve, ball check valve and 3-piece coupling
• 1x cable protection pipe 75 mm, 5 mtr
• 1x cast iron manhole class A (walking traffic)

Maximum capacity: 16.0 m3/hour

Maximum head: 7.45 mWk

Free passage: 25 mm

Maximum wastewater temperature : 35 degrees Celsius

Application: For pumping rainwater and/or slightly polluted wastewater
