Rising Dragon L3MTC Master Light - Two Wire System

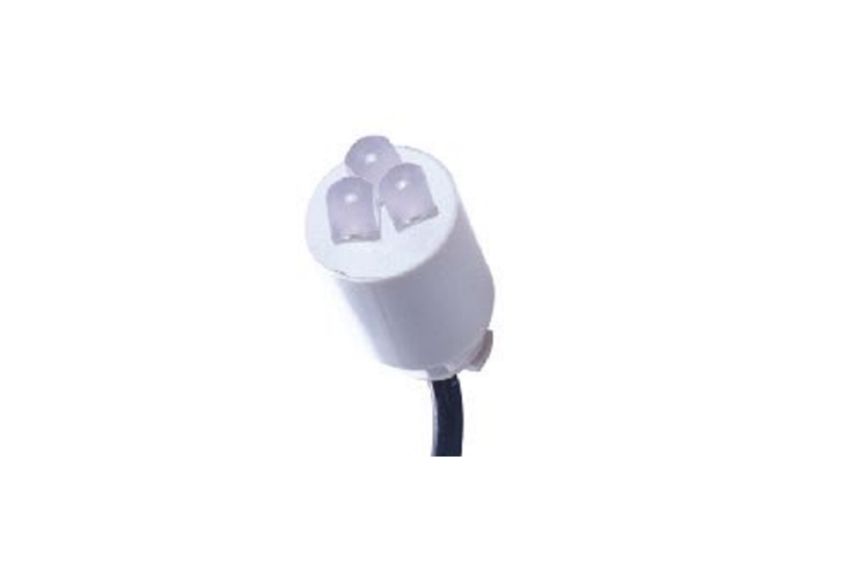

This is a Rising Dragon fully epoxy encased L3MTC Master Light for the Pinnacle Series, 2 Wire System.

Click to see an overview of the Rising Dragon Pinnacle System to assist you in understanding its layout.

This multicolor light connects to a 12V AC source with its 2-pin male AMP plug. An integrated controller gives colour effects like slow / fast colour sequence, intensity variations and the awesome strobe effects.

• Item No: L3MTC-00ATL
• Model: L3MTC
• Bulb Quantity: 3
• Color: RGB
• Voltage: AC 12V
• Power(Without POL): 0.6W
• Max Capability(POL): 10
• Input/Output Connector: Two wire waterproof connector
• Notes: Turn the power on/off to switch modes

Compatible spa light assemblies:

Waterway 3.5" Rear Access
Waterway 3.5" Front Access
Waterway 5" Light Housing
Rising Dragon 5" Light Housing

The 2-PIN round connector allows linking via a perimeter cable, and using Pinnacle 6-LED or Pinnacle 3-LED for example.

This bulb does not work with the Evolution series, which has a 4-PIN round connector.
