Rising Dragon Master 7 LED 55-1150

This is a Rising Dragon Master Multicolour 7 LED Light ref. 55-1150.

Click to see an overview of the Rising Dragon Pinnacle System to assist you in understanding its layout.

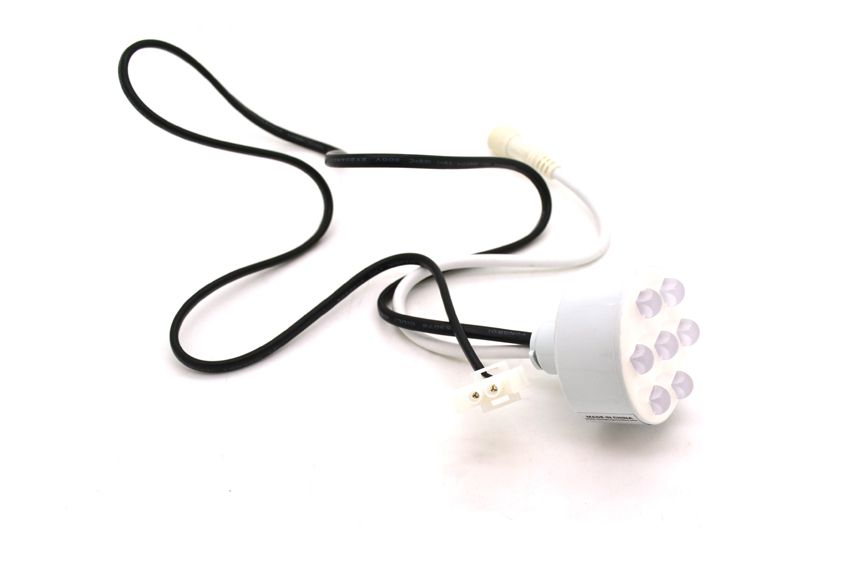

L7GC Master Light-Two Wire System (fully epoxy encased).

This multicolor light connects to a 12V AC source with its 2-pin male AMP plug. An integrated controller gives colour effects like slow / fast colour sequence, intensity variations and the awesome strobe effects.

Bulb Quantity: 7
Color: RGB
Voltage: AC 12V
Power(Without POL): 1.4W
Max Capability(POL): 30
Input/Output Connector: Two wire waterproof connector
Notes: Turn the power on/off to switch modes

Compatible spa light assemblies:

Waterway 3.5" Rear Access
Waterway 3.5" Front Access
Waterway 5" Light Housing
Rising Dragon 5" Light Housing

The 2-PIN round connector allows linking via a perimeter cable, and using Pinnacle 6-LED or Pinnacle 3-LED for example.

This bulb does not work with the Evolution series, which has a 4-PIN round connector.
