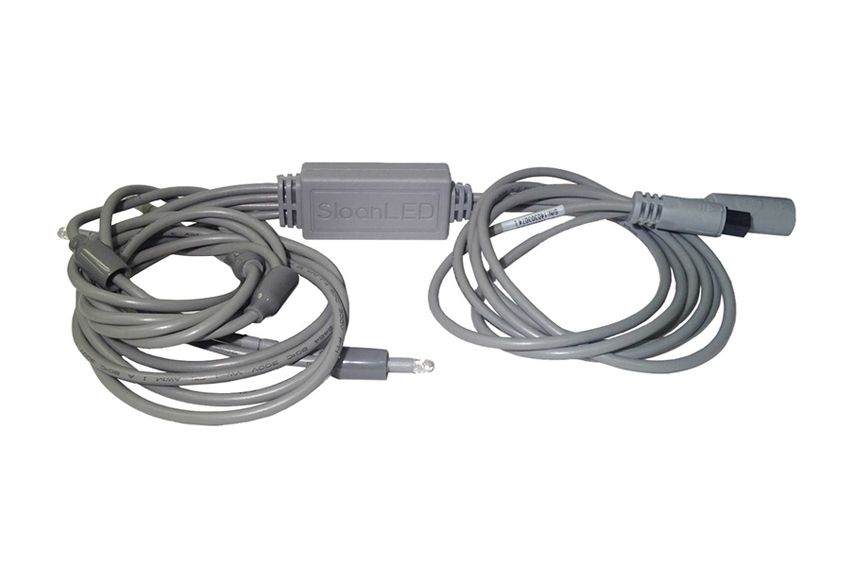

Sloan Bullet LED RGB Daisy Chain Assemblies

These Sloan RGB Daisy Chain assemblies are available with 1, 2 or 4 LEDs

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock

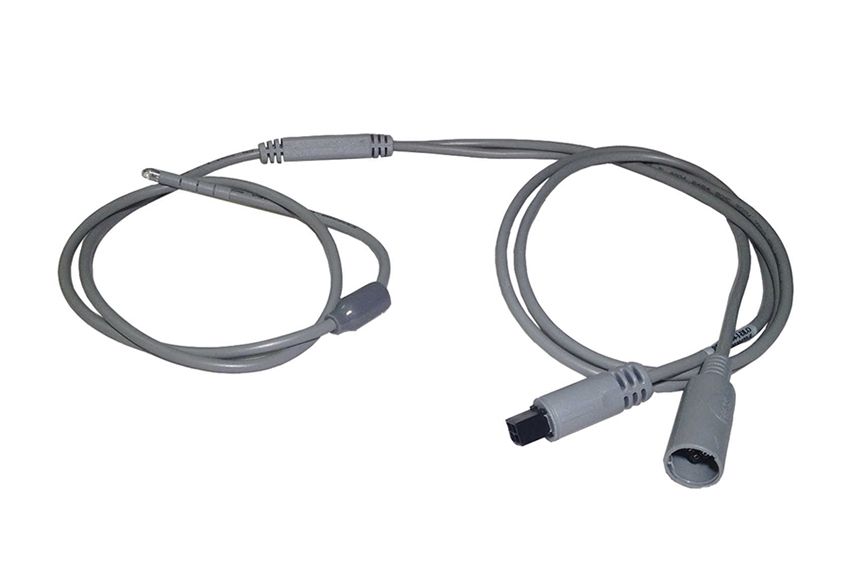

Sloan Bullet - Single LED	Sloan Bullet - Single LED	21945	701564-1-F	£8.27 £6.89	- +	Available for Back Order

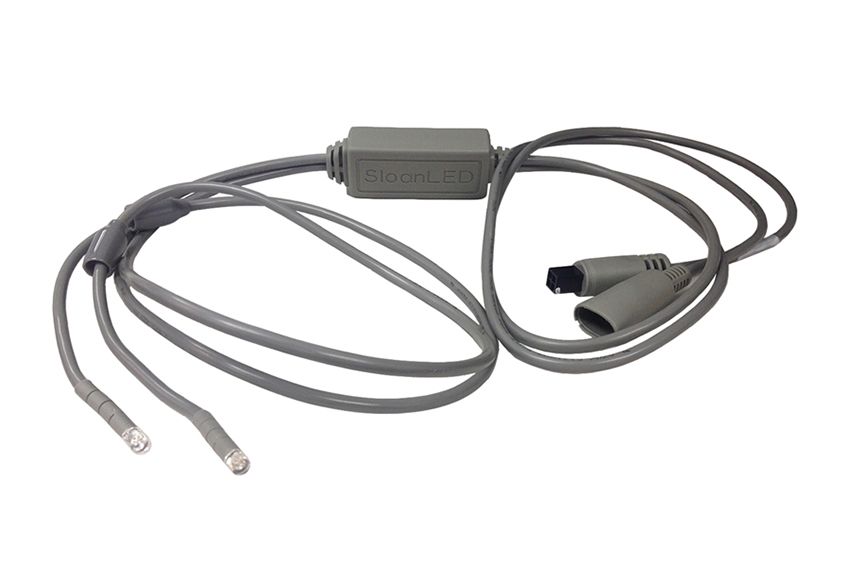

Sloan Bullet - Double LED	Sloan Bullet - Double LED	21944	701564-2-F	£16.52 £13.77	- +	2 In stock

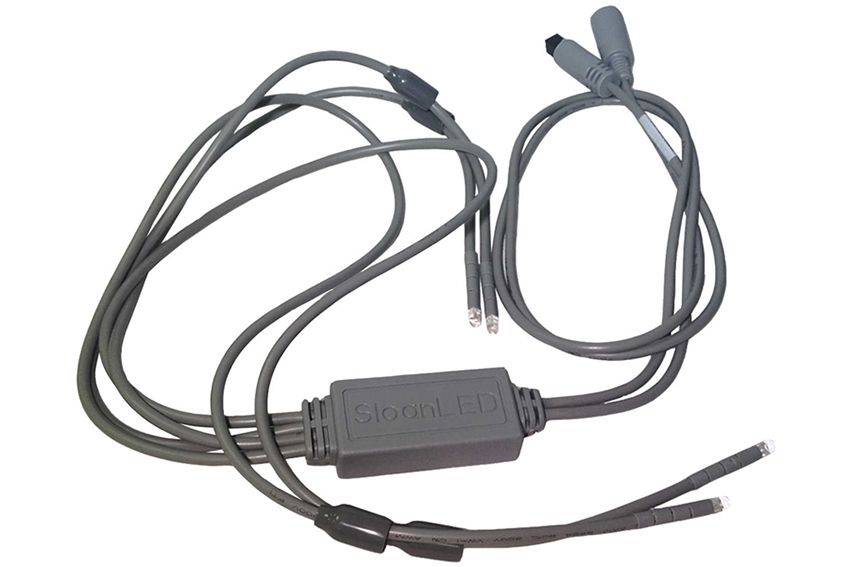

Sloan Bullet - Quad LED	Sloan Bullet - Quad LED	21943	701564-4-F	£22.86 £19.05	- +	Available for Back Order
Sloan Bullet - Quad LED with XL Cable	Sloan Bullet - Quad LED with XL Cable	19689	701564-4-DLO-XL	£24.77 £20.64	- +	1 In stock

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Sloan LiquaLED bullet-shaped colour changing sloan LED bulbs, can be connected to other Sloan LED Daisy Chain assemblies as part of a lighting kit. Available in single, double or quad LEDs.

Typically the colours are controlled by either a controller or the UltraBRIGHT LED controller bulb.

Click to see an overview of the SloanLED LiquaLED Lighting System to assist you in understanding its layout.

Features

Daisy-Chain Wiring - Easy installation & flexible configurations
Color Changing LEDs - Latest LED technology produces the full spectrum of colors and allows for color changing and sequencing
Positive Lock Connectors - Quick installs; reliable, industrial strength connections
Guardian Overmold Connector System - Protects from moisture, dirt, foaming operations
High Temp Cable Sets - Proven not to melt under the highest temperature foaming operations
Patent Pending LED Boot - Vibration proof attachment; no adhesives required
Efficient Electrical Design - Drives more lights from the same power pack
Integrated Circuitry Protection - Over-molded, water resistant case protects circuitry for reliable, no-fuss operation
Accessory Lens - several styles available with custom inside diameter taper to fit bullet lights

Dimensions

Item Description	Single-LED Cable	Dual-LED Cable	Quad-LED Cable	Extended Length Quad – LED Cable Connector & Bullet Wire
Part Number	701564-1-DLO	701564-2-DLO	701564-4-DLO	701564-4-DLO-XL
# LED's per cable (individual points of light)	1	2	4	4
Typical maximum current per cable	50 mA	40 mA	80 mA	80 mA
Connector wire length (connector-to-connector)	50ʺ	50ʺ	50ʺ	76ʺ
Outer bullet light wire length	25ʺ	25ʺ	25ʺ	38ʺ
Inner bullet light wire length	25ʺ	25"	17ʺ	24ʺ
