SKU
G9901

Speck BADU Gamma Pump

Speck BADU Gamma Pump
Grouped product items
Product Name SKU MPN Price Stock
No options of this product are available.

In-stock orders dispatched:14:00

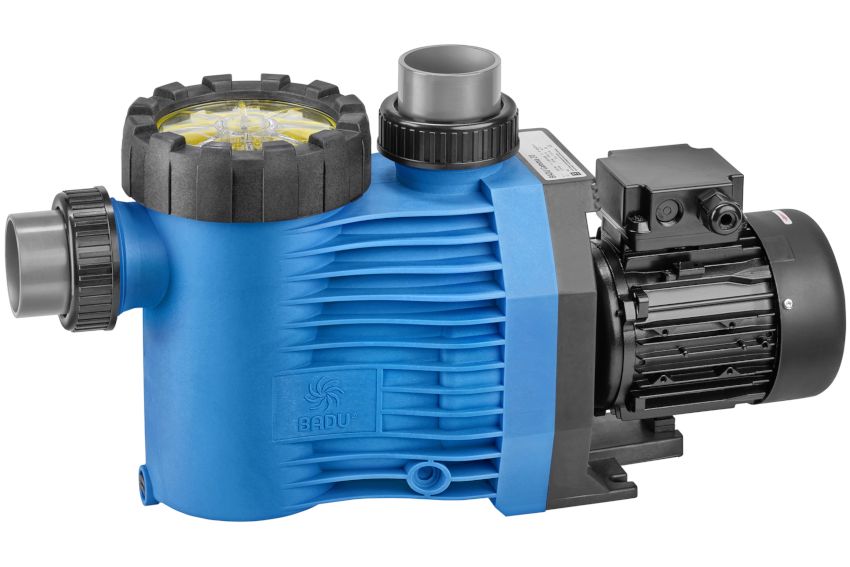

With the BADU Gamma swimming pool pump you have the usual first-class material quality. It is extremely quiet and has improved hydraulics with optimised water flow. Optional inner or outer threads provide great flexibility during installation.

  • Swimming pool water circulation through a filter system.
  • The pump can be installed maximum 3 m above or below water level.
  • Monoblock-type pump with integrated strainer tank.
  • The below-type mechanical sea is mounted on a plastic shaft protector sleeve.
  • Motor/pump shaft has no contract wit the pool water providing complete electrical separation.
  • Extremely quiet.
  • Metric and imperial unions supplied.
  Gamma 7 Gamma 11 Gamma 15 Gamma 20 Gamma 23 Gamma 29 Gamma 32
Power output 0.30kW 0.45kW 0.55 0.75kW 1.00kW 1.30kW 1.50kW
Flow rate @ 8m 7m³/hr 11m³/hr 15m³/hr 20m³/hr 23m³/hr 29m³/hr 32m³/hr
Inlet/outlet 50/50mm
1½"/1½"
50/50mm
1½"/1½"
63/63mm
2"/2"
63/63mm
2"/2"
63/63mm
2"/2"
75/75mm
2½"/2½"
75/75mm
2½"/2½"
Total Length (L) (1ph/3ph) 525/525mm 525/525mm 547/547mm 547/547mm 559/585mm 559/610mm 585/610mm
Icon Label Type Size Download
pdf Speck BADU Gamma Pump General Operation Manual pdf 3.7 MB Download
pdf Speck BADU Gamma Pump Dimensions pdf 178.2 KB Download
pdf Speck BADU Gamma Pump Declatration of Confirmity pdf 165.9 KB Download
pdf Speck BADU Gamma Pump Characteristics pdf 16.4 KB Download
