Speck Badujet Counter Current Unit Perla/Riva Spare Parts
Speck Badujet Counter Current Unit Perla/Riva Spare Parts
In-stock orders dispatched: in 9hrs 9mins
Speck Badujet Counter Current Unit Perla/Riva Spare Parts

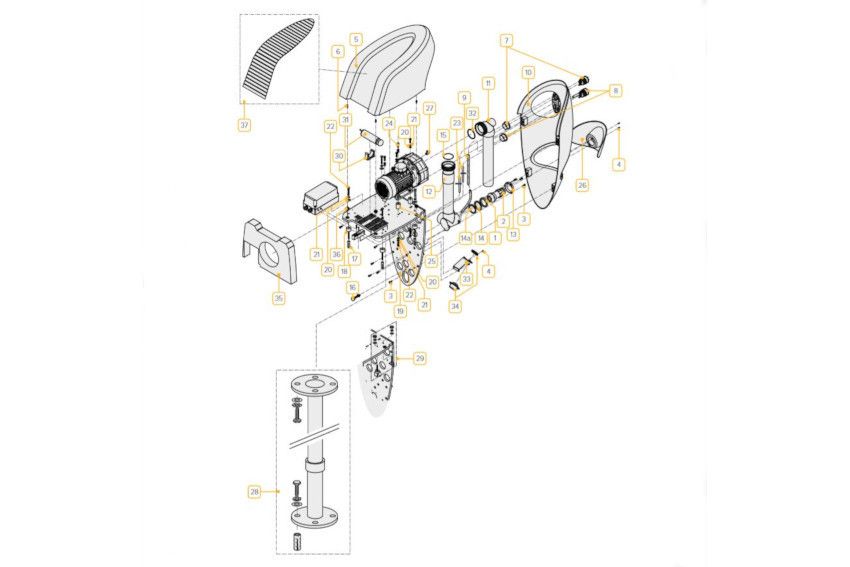

SKU | Description | Picture Number |
11384 | Retainer Ring | 1 |
41742 | Completion kit - Adjustable ball nozzle (⌀ = 40mm) | 2 |
41747 | Completion kit - A4 screw 6 x 22mm | 3 |
41759 | Completion kit - A4 tapping screw 3.5 x 13mm | 4 |
41799 | Completion Kit - Housing flange | 13 |
41801 | Completion Kit - Seal 80 x 75.7 x 7.5 mm | 32 |
41803 | Cap & pin for coupling snaplock | 5 & 6 |
41804 | Pneumatic button & thread insert: "light on/off" (⌀ = 50mm) | 7 |
41805 | Pneumatic button including air regulation valve & thread insert: "unit on/off" (⌀ = 50mm) | 8 |
41806 | Clear PVC hose reinforced with two tube clamps 8 x 3mm | 9 |
41807 | Cover | 10 |
41808 | Suction line complete | 11 |
41809 | Pressure line, assembled | 12 |
41810 | Hose ring 60 x 73.5 x 4mm | 14 |
41811 | Supporting disk for ball nozzle | 14a |
41812 | Spacer extension | 16 |
41813 | Brass expanding bolt - M8 | 17 |
41814 | Rubber Metal buffer M8 x 36 mm | 18 |
41815 | Base plate complete | 19 |
41816 | A2 washer - 24mm (⌀ = 8.4 mm) | 20 |
41817 | A2 lock washer (⌀ = 8.4mm) | 21 |
41818 | A2 hexagon head bolt M8 x 25 mm | 22 |
41819 | PVC Hose combination with socket | 23 |
41820 | A4 hexagon head bolt M8 x 20mm | 24 |
41821 | Rubber metal buffer M8 | 25 |
41822 | Light cover | 26 |
41823 | Ventilating valve | 27 |
41824 | Telescopic foot for above-ground pools including fitting angles for swimming pool wall | 28 & 29 |
41825 | Hand pump & holder for hand pump | 30 & 31 |
41826 | Holder for luminaire | 33 |
41827 | White colour emitting LED spot - 12V | 34 |
41828 | Multicolour colour emitting LED spot - 12 V | 34 |
41829 | Separation wall for motor ventilation | 35 |
41830 | Coupling snaplock | 36 |
41831 | Design inlay | 37 |
41915 | Connection O-ring |
