SUNDANCE® SPAS Pillow Range
In-stock orders dispatched: on Monday

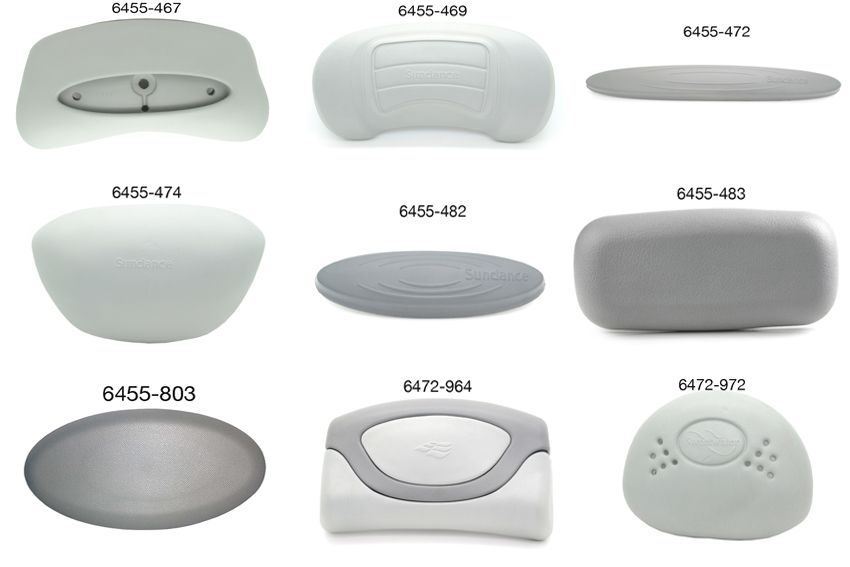

We offer the full range of SUNDANCE® SPAS pillows, the tables below will help you identify which pillow typically fits your model of spa. We have taken the trouble to photograph each pillows front and back to enable you to quickly and correctly identify your pillow.

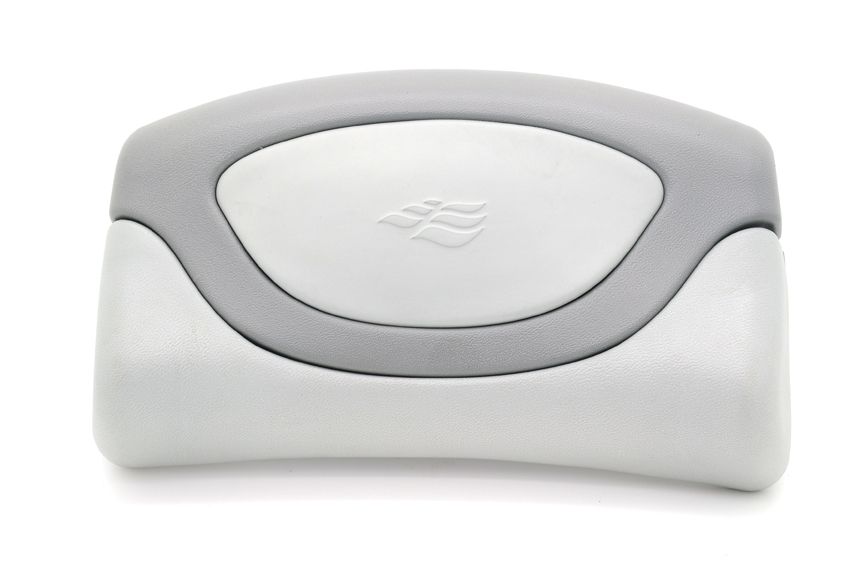

The only pillow not in the tables is 6472-964 (Old part #6455-484) - (Sku:17533), this fits the following Spas
SUNDANCE® SPAS® Spas Factory-Made Pillow for 2009+ Spas
Pillow measures approximately (widest parts): 11" W x 6" H x 2.25" Thick
This pillows is used on the following Spas (with quantities needed, sold individually):
Altamar 2009+ (3)
Aspen 2012+ (4)
Cameo 2009+ (3)
Capri 2013+ (3)
Majesta 2009+ (3)
Marin 2010+ (4)
Maxxus 2009+ (4)
Optima 2009+ (4)
| SUNDANCE® SPAS Pillows Chart (1998 - 2000) | |||||
| Chevron | Lounge | Wrap Around | Reverse Wrap Around | Chevron (Ball / Socket) | |
| Suction Cup Type Pillows (Suction Cups Included) | |||||
| Hot Tubs | 6455-445 | 6455-446 | 6455-447 | 6455-448 | 6455-451 |
| Altamar | 3 | ||||
| Aruba | 3* | ||||
| Bahia | 4* | ||||
| Calypso, '98-'99 | 2 | 1 | |||
| Cameo, 1998 | 1 | 1 | 1 | ||
| Cameo, '99+ | 2 | 1 | |||
| Capri | 2 | 1 | |||
| Caprio | 2 | 1 | |||
| Cyprus | 3* | ||||
| Marin | 1 | 1 | 1 | ||
| Montego, '98-'99 | 2 | 2 | |||
| Maxxus | 3 | 1 | |||
| Optima | 2 | 2 | |||
| Palermo | 4* | ||||
| Rio | 2 | 1 | |||
| Solo | 1 | ||||
| Tango | 1 | ||||
| Note: The "Ball & Socket" style pillows used in all 1998 model spas have been discontinued and replaced by the suction cup style pillows listed above. To utilize these pillow in spas with older "Ball & Socket" style pillows, you must install two (2) pillow pads (#6455-003) over existing "Ball & Socket" holes to establish a reliable sealing surface. | |||||
| *Replaces/Retrofits #6455-460 Velcro Style "Dual Lock" Pillows (Not Shown). | |||||
| SUNDANCE® SPAS Pillows 2001 - 2004 | ||||||

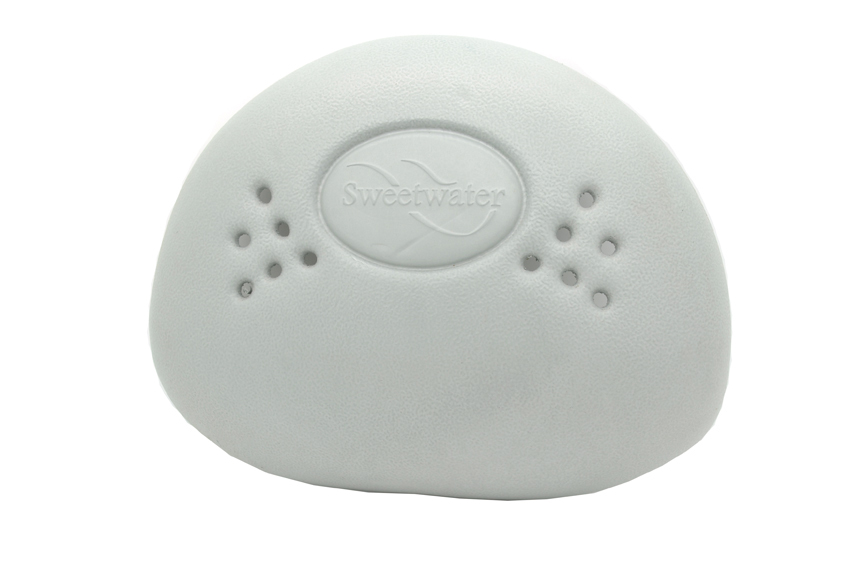

| Pillow Type | SUNDANCE® SPAS | Sweetwater | Del Sol | |||
| Chevron | Wrap Around | Reverse Wrap Around | Chevron (Ball / Socket) 2001 - 2002 | Chevron (Bracket Mt.) 2003 - 2004 | Chevron (Ball / Socket) 2001 - 2002 | |
| 6455-467 | 6455-465 | 6455-466 | 6455-451 | 6455-452** | 6455-463 | |
| Insert purchased separately (see table below) | ||||||
| Altamar | 3 | |||||
| Aruba | 3 | |||||
| Bahia ('01-'02) | 4 | |||||
| Bahia (2003-2004) | 4 | |||||
| Cameo | 2 | 1 | ||||
| Capri | 3 | |||||
| Caprio (2001) | 2 | 1 | ||||
| Caprio (2002-2004) | 3 | |||||
| Caprio ST (2001) | 2 | 1 | ||||
| Caprio ST (2002-2004) | 3 | |||||
| Cayman (2003-2004) | 3 | |||||
| Cyprus | 3 | |||||
| Hermosa (2003-2004) | 4 | |||||
| Lagunas (2003-2004) | 3 | |||||
| Marin (2001) | 1 | |||||
| Marin (2002-2004) | 4 | |||||
| Maxxus (2001-2004) | 3 | 1 | ||||
| Metro | 1 | 1 | ||||
| Optima | 2 | 2 | ||||
| Palermo ('01-'02) | 4 | |||||
| Palermo (2003-2004) | 4 | |||||
| Solo | 1 | 1 | ||||
| Tango | 1 | |||||

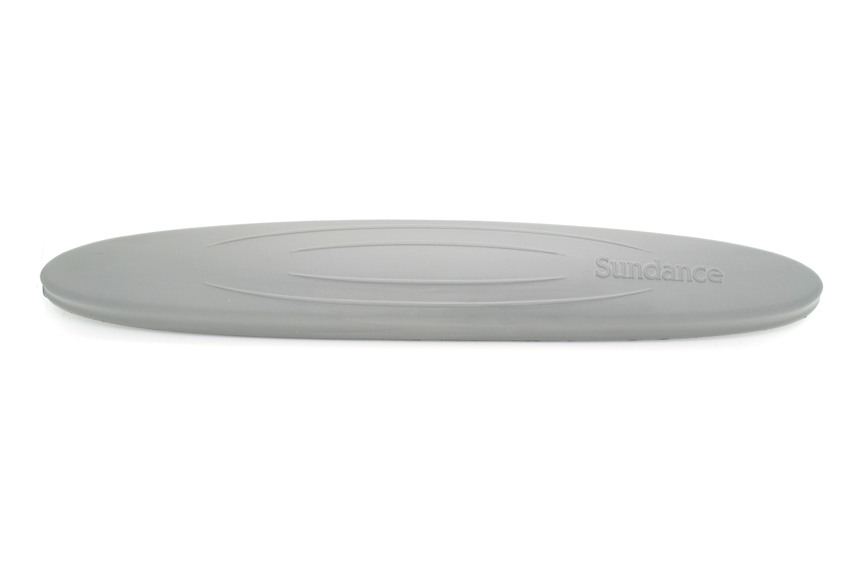

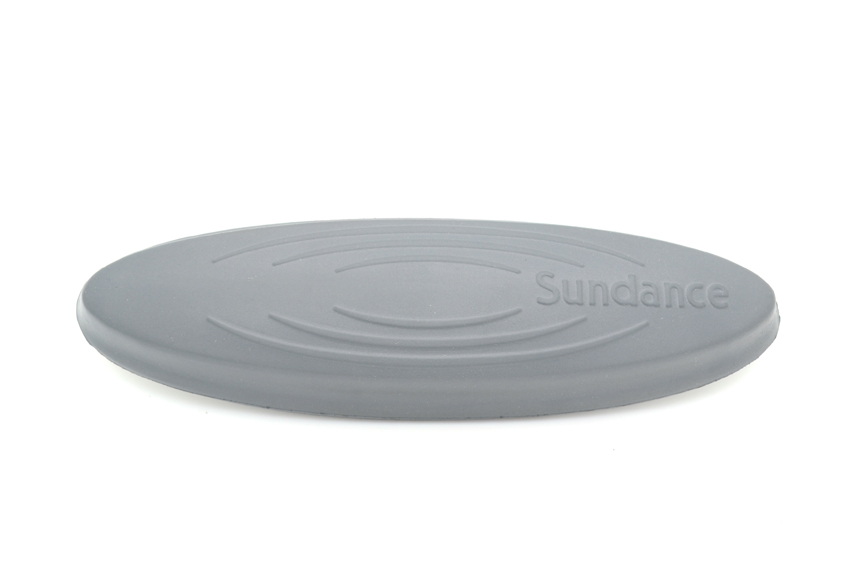

| Inserts | 6455-482 | 6455-472 | 6455-472 | |||
| **Please note 6455-452 can have a Sweetwater or SUNDANCE® SPAS logo on the front - Unfortunately we have no control over this | ||||||
| SUNDANCE® SPAS Pillows 2005 + | ||||||
| SUNDANCE® SPAS | 780 Series | 680 Series | ||||
| Chevron | Wrap Around | Chevron (Bracket Mt.) | Chevron (Ball & Socket) | Chevron (Ball & Socket) | Chevron (Ball & Socket) | |
| 6455-467 | 6455-465 | 6455-455 | 6455-469 | 6455-483 | 6472-970 | |
| Insert purchased separately (see table below) | ||||||
| Altamar | 3 | |||||
| Bahia | 4 | |||||
| Burlington 2007 | 3 | |||||
| Burlington 2008+ | 3 | |||||
| Cameo | 3 | |||||
| Capri | 3 | |||||
| Caprio | 3 | |||||
| Cayman | 3 | |||||
| Camden | 4 | |||||
| Certa | 3 | |||||
| Chelsee | 4 | |||||
| Inserts | 6455-482 | 6455-472 | ||||

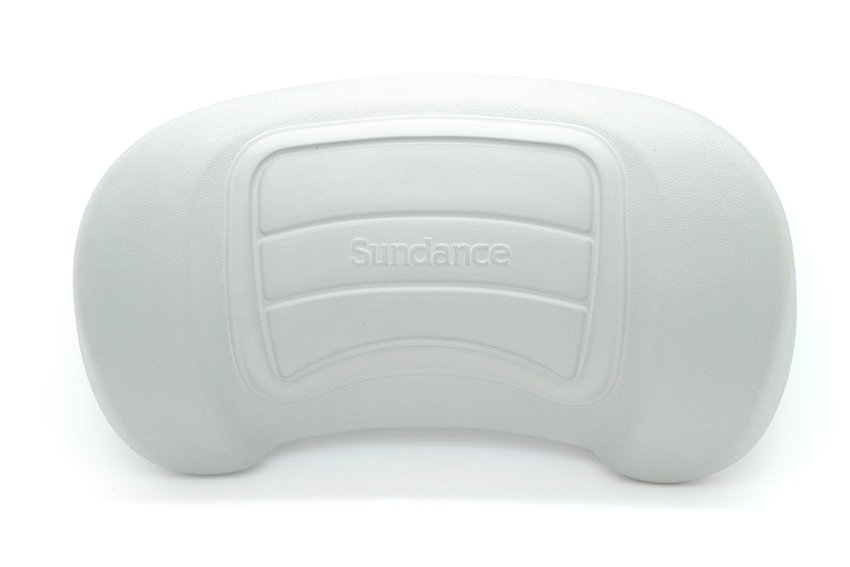

Sku 51143 is for the Sundance Spas Elite, Constance and Victoria Series since 2011.
Dimensions
Length: 265 mm
Height: 170 mm
Center distance between fixing points: 137 mm
