SUNDANCE® SPAS Temperature Sensors

Please see the image gallery for the different connections. It will be either of the below options, please check your unit prior to ordering as the information is to help only

It is recommended you replace the o-ring when replacing the sensor.

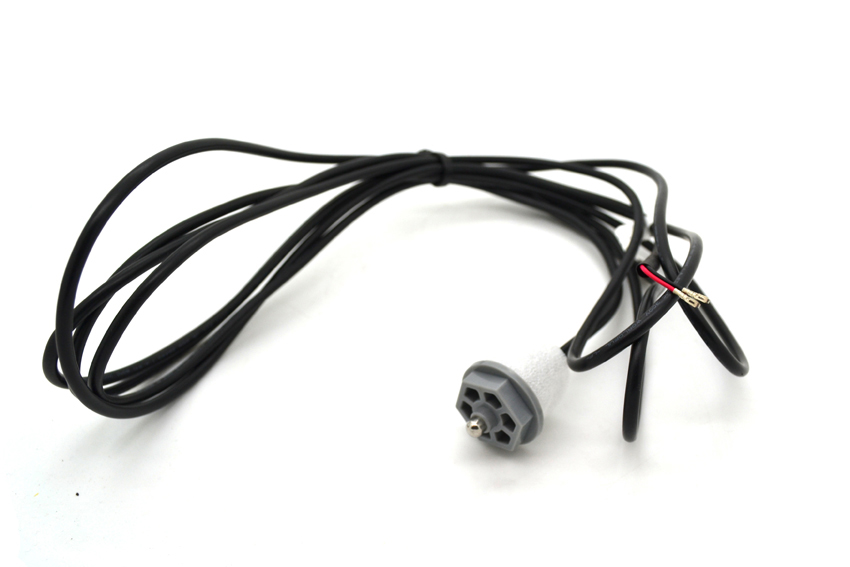

Curled Finger Connectors - 6600-166

SUNDANCE® SPAS - 680 & 780 series

A. 2006+ 780 / 680 Series
B. 2005 780 / 850E Systems, Portofino, Sweetwater, and Del Sol Systems.
C. 1998+ Solo, 701, 724, Systems (Replaces 6600-070 Sensor (Not Shown)

JACUZZI®

2002-2003 - J310, J320, J330 & J340.
2004+ J315, J325, J335, J365 & J375.
2005+ J210, J220, J230
2007+ J270 & J280.

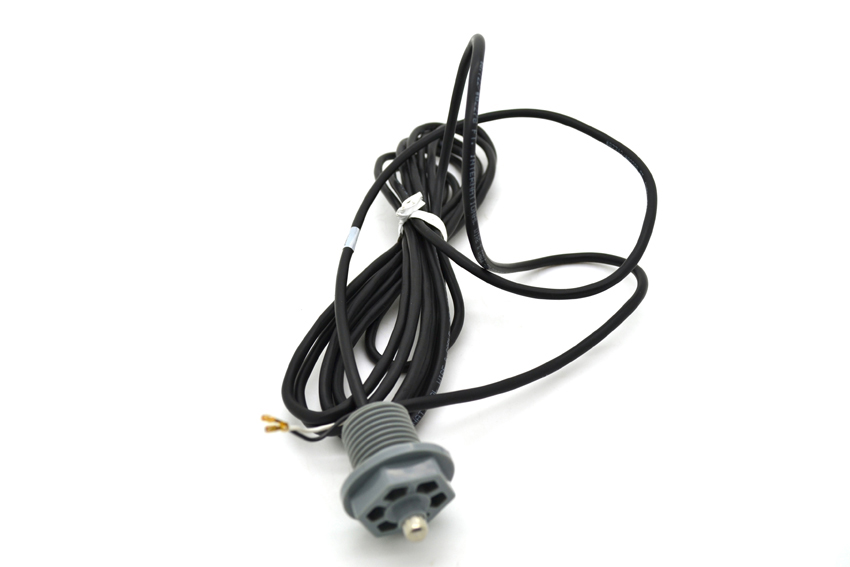

Box End Connectors - 6600-167

SUNDANCE® SPAS - 880 Series Spa

A. 2005+ 880 Systems
B. 1997-2005 850 Systems, 400, 600, 600-S, 750, 800 Systems
C. 1992 Suncoast
D. 4/96-4/98 Suntub SV / DV Systems (Replaces 6600-138 & 6600-105 Sensors (Not Shown)

JACUZZI®

2002 to 2003 J350, J360, J370, & J380 spas
2004 to 2006 J355, J365, J375 & J385
2006-2009 J400 spas.
