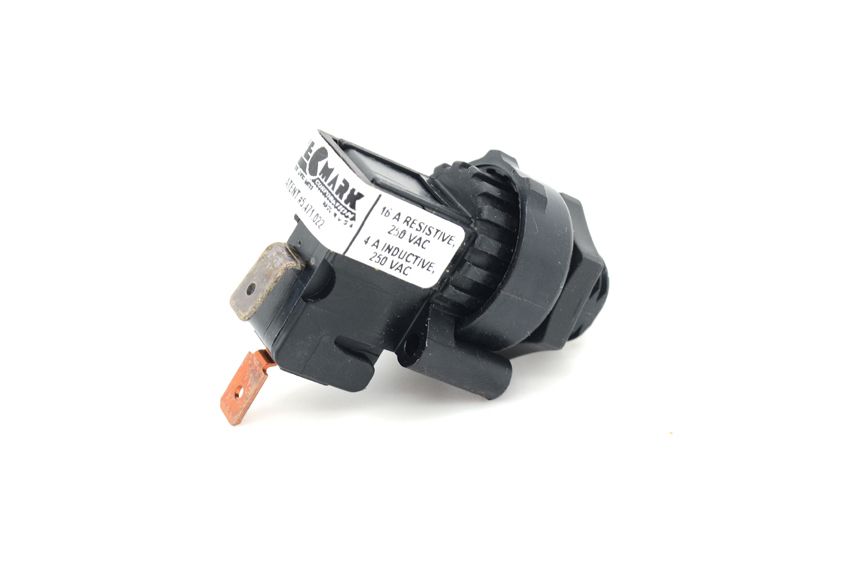

Tecmark Air Switch TBS106A
In-stock orders dispatched: in 11hrs 46mins
Single Pole, Single Throw. This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when actuated. Air Switch TBS106A - alt, SPNO 16amp.
Up to 250vac. 16A resistive (meaning use with a heater for example), 4A inductive (meaning use with a 1HP pump for example.
Height: 48mm
Width: 25mm (at widest point)
Depth: 48mm (from front to rear spade)
This is the most common type of air switch found in circulation. Basic operation is to switch either directly an appliance or a relay. Can be used on the LX DH1.0 Circulation Pump and LX Whirlpool EA350 Circulation Pump
