Thermalec Electric Heaters - 1 & 3 Phase

Flow direction is from left to right, but may be reversed.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
9 kW Thermalec Spa Heater - (1 or 3 phase)	9 kW Thermalec Spa Heater - (1 or 3 phase)	16822	HT090SPA-T	£2,340.00 £1,950.00	- +	Available for Back Order
12 kW Thermalec Spa Heater - (1 or 3 phase)	12 kW Thermalec Spa Heater - (1 or 3 phase)	16823	HT120SPA-T	£2,344.50 £1,953.75	- +	Available for Back Order
6 kW Thermalec Heater - (1 phase)	6 kW Thermalec Heater - (1 phase)	16824	HT060T	£1,633.32 £1,361.10	- +	Available for Back Order
7.5 kW Thermalec Heater - (1 or 3 phase)	7.5 kW Thermalec Heater - (1 or 3 phase)	16825	HT075T	£1,807.42 £1,506.18	- +	Available for Back Order
9 kW Thermalec Heater - (1 or 3 phase) - Pool Only	9 kW Thermalec Heater - (1 or 3 phase) - Pool Only	16826	HT090T	£1,951.56 £1,626.30	- +	Available for Back Order
12 kW Thermalec Heater - (1 or 3 phase) - Pool Only	12 kW Thermalec Heater - (1 or 3 phase) - Pool Only	16827	HT120T	£2,745.14 £2,287.62	- +	1 In stock
15 kW Thermalec Heater - (1 or 3 phase)	15 kW Thermalec Heater - (1 or 3 phase)	16828	HT150T	£2,628.00 £2,190.00	- +	Available for Back Order
18 kW Thermalec Heater - (1 or 3 phase)	18 kW Thermalec Heater - (1 or 3 phase)	16829	HT180T	£2,772.00 £2,310.00	- +	Available for Back Order
21 kW Thermalec Heater - (1 or 3 phase)	21 kW Thermalec Heater - (1 or 3 phase)	16830	HT210T	£2,777.76 £2,314.80	- +	Available for Back Order
24 kW Thermalec Heater - (1 or 3 phase)	24 kW Thermalec Heater - (1 or 3 phase)	16831	HT240T	£2,993.76 £2,494.80	- +	1 In stock
30 kW Thermalec Heater - (3 phase)	30 kW Thermalec Heater - (3 phase)	16832	HT300T	£3,611.52 £3,009.60	- +	Available for Back Order
36 kW Thermalec Heater - (3 phase)	36 kW Thermalec Heater - (3 phase)	16833	HT360T	£3,959.71 £3,299.76	- +	Available for Back Order
48 kW Thermalec Heater - (3 phase)	48 kW Thermalec Heater - (3 phase)	16834	HT480T	£4,877.28 £4,064.40	- +	Available for Back Order
60 kW Thermalec Heater - (3 phase)	60 kW Thermalec Heater - (3 phase)	16835	HT600T	£5,261.76 £4,384.80	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

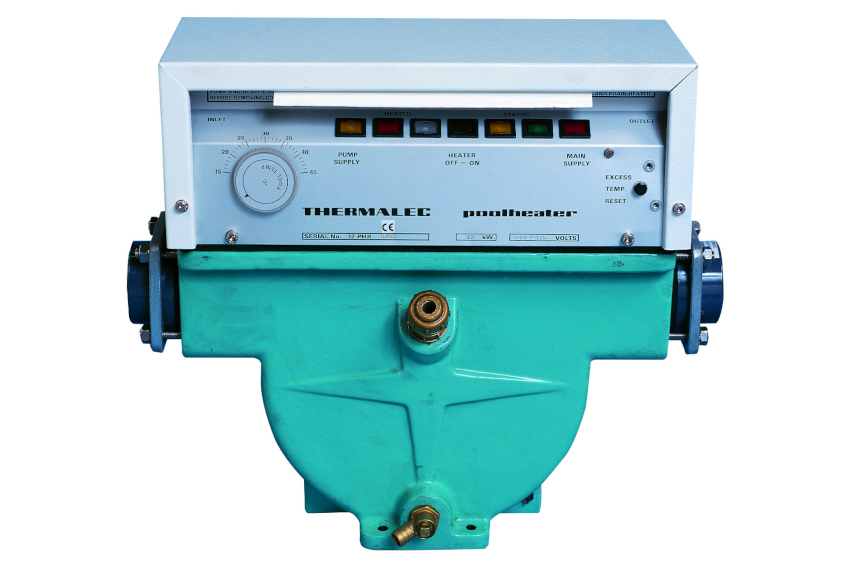

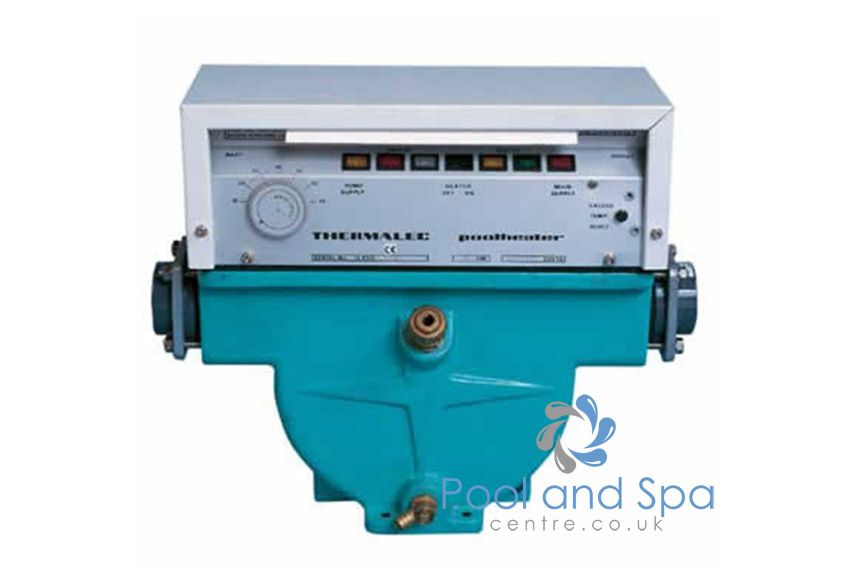

Overview

Cast in BS-EN-1561-1997-ENGJL-200 iron with a heavy fusion bonded epoxy coating impervious to chemically treated pool water.

Constructed in accordance with British Patent 2.092,282 Design pressure of 35psi (2.46kg/cm2) with 3/4" safety valve(s) set to operate at the maximum normal working pressure of 30psi (2.1kg/cm2) giving protection to both the heater and and the installation as a whole against over pressure.

A 1/2" drain valve at the lowest point allows the heater to be left empty in winter.

Flow connections consist of easily removable uPVC stub flanges into which the pipes may be fitted using suitable adhesive, as the flanges can be released easily from the heater no unions are required, nor is any form of heat sink needed.

Flow direction is from left to right, but may be reversed quite simply on site by following the installation instructions given with the product.

Features

The contact materials are highly resistant to corrosion from pool chemicals.
It Can safely be used with sea water pools as well as in demanding applications such as Hydro- and Thalasso- therapy.
The watts density of the heating elements is very low, ensuring minimal scale build-up and long element life.
The heating elements are always submerged in water. Any air bubbles entering the heater pass through it above the water and across the unheated parts of the elements, preventing any damage to the latter.
The patented weir and baffle system inside the heater causes the water to flow through it in a spiral. This increases uniformity of the water temperature inside the heater and prevents direct impingement of cold water onto the elements.
The construction of the heater is solid and robust, to ensure years of safe and reliable service.

Dimensions

Packed dimensions: 425 x 450 x 190mm.
Packed weight: 26 kg.

Spare Parts

Thermalec Spare Parts for Heaters

Additional Info

Protection level: IP 21.
Fuses: 1 x 2 Amp (+1 spare).
Pump interlock voltage: 230 V AC.
Element heat flux: 11.5 W/cm² max.

Associated Documents
