SKU
G9974

Triogen O3 S Ozone System

Triogen O3 S Ozone System
Grouped product items
Product Name SKU MPN Price Qty Stock
Triogen T2 System c/w TOGB2, Injector, Flowmeter & Water Trap Triogen T2 System c/w TOGB2, Injector, Flowmeter & Water Trap 45514 2193675020
£3,776.17 £3,146.81
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

main product photo

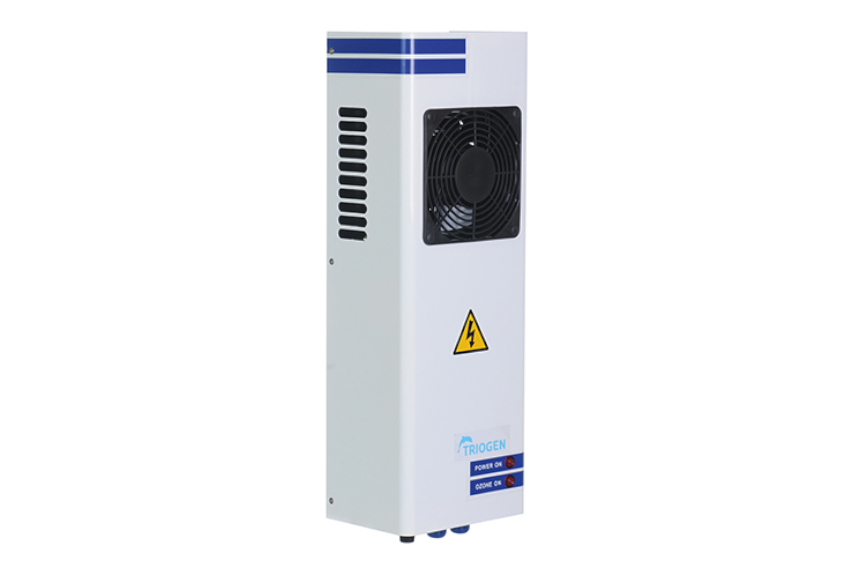

Designed for water treatment of private and hotel size swimming pools and aquatic applications, the Compact range of wall mounted ozone generators incorporating ceramic corona discharge modules for powerful performance and long term reliability whilst operating under vacuum for operator safety.

Features
  • Designed for water treatment of private and hotel size swimming pools and aquatic applications.
  • Chloramine destruction reducing skin, eye and respiratory irritation.
  • Significant improvement in water clarity and air quality.
  • Improves algae control.
  • Savings in water, energy and chemical consumption.
  • Designed for maximum operator and bather safety.
  • Compact wall mounted ozone generator.
  • Corona discharge modules designed for 10+years operation.
  • Ongoing EU ozone biocide regulation compliant.
  • Ozone safety generated and injected under vacuum.
  • Air cooled system with high humidity durability.
  • Thermostatic system protection.
  • Power and operation indicators.
Dimensions
  Ozone Generator Air Dryer Contact Tank
Dimensions (L x W x H) 115 x 440 x 110mm 305 x 440 x 110mm 1210 x 397mm
Weight 4 .4kg 10kg 16.5kg (Dry) / 42kg (Wet)
Specifications

Technical Information:

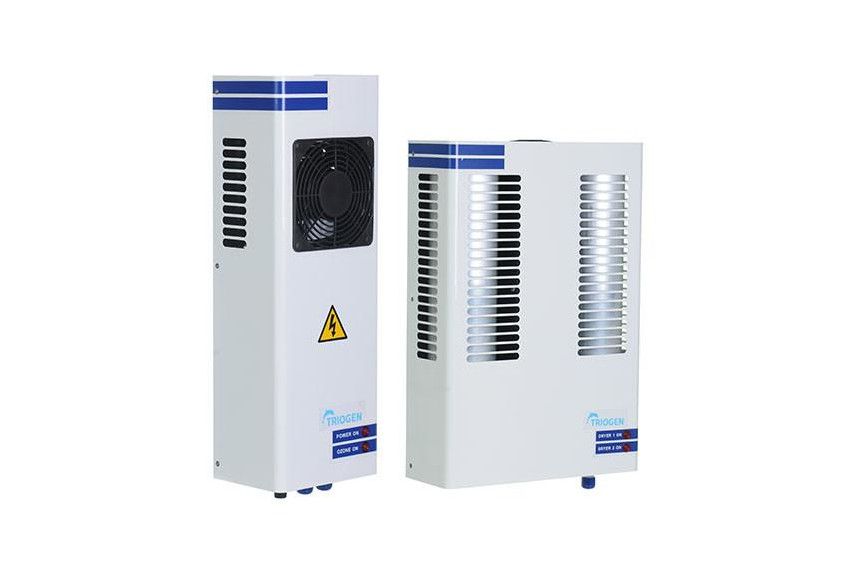

  S2 (Ozone generator) S4 (Ozone generator and air dryer) S8 (Ozone generator X2 and air dryer)
Ozone output 2g/hr 4g/hr 8g/hr
Air flow 10 L/m 10 L/m 20 L/m
Supply rating 220 V,1 ph, 50 Hz (standard) or
110 V, 1 ph, 60 Hz (option)		 220 V, 1 ph, 50 Hz (standard) or
110 V, 1 ph, 60 Hz (option)		 220 V, 1 ph, 50 Hz (standard) or
110 V, 1 ph, 60 Hz (option)
Maximum pool volume (Private) 180 m³ 400 m³ 800 m³
Maximum pool volume (Hotel) 90 m³ 200 m³ 400 m³
Code 21 93 999 020 21 93 999 040 21 93 999 080
Kit contents (with degasser) 1 x TOG B2
injector, flow meter, water trap		 1 x TOG B2
injectors, flow meter, water trap		 2 x TOG B2
air dryer, contact tank, degasser, injector, flow meter, water trap
Can Be Used With

This Grundfos Booster Pump can be used for S2 and S4 system.

Compatibility
