SKU
G10282

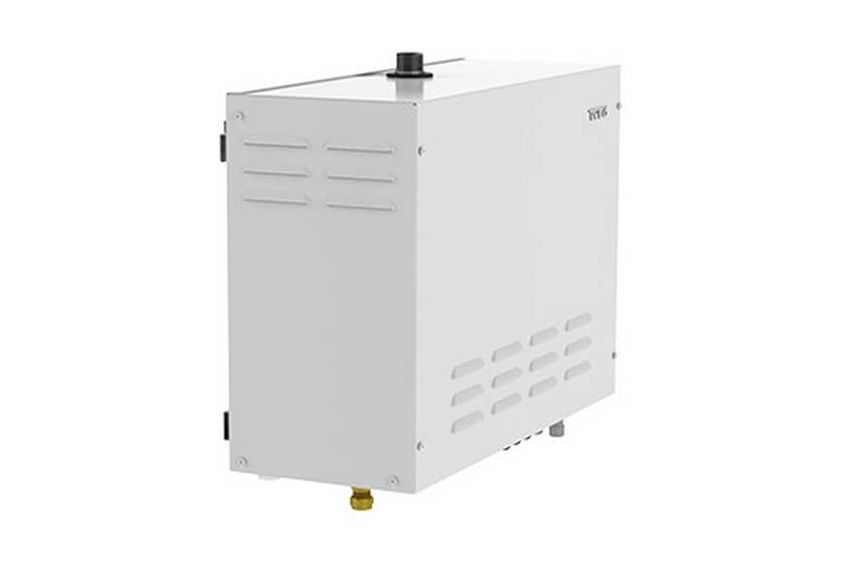

Tylo Steam Commercial Generator

Tylo Steam Commercial Generator
Grouped product items
Product Name SKU MPN Price Qty Stock
Tylo Steam 9 kW & Elite Tylo Steam 9 kW & Elite 42946 3366210010
£3,782.05 £3,151.71
- +
Available for
Back Order
Tylo Steam 12 kW Commercial Tylo Steam 12 kW Commercial 42947 3366210015
£5,216.40 £4,347.00
- +
Available for
Back Order
Tylo Steam 15 kW & Elite Tylo Steam 15 kW & Elite 42948 3366210020
£5,158.40 £4,298.67
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

This is a Steam Commercial Generator, it is supplied with an automatic flush which can be set according to the water quality in your area.

  • Together with the Elite control panel, it gives you total control of your system.
  • Two way communication between the control panel and the steam generator means that the output can be automatically adjusted to the volume of the steam room, for the most efficient heating.
  • It is fitted with a large water tank and designed to be easily connected to out Multi-steam function - an effective way of avoiding stoppages in heavily used systems, as up to three steam generators can be connected to the same steam room.
  • With a standby mode and out patented 'divided output' function, energy consumption can be up to 30% lower.
  • When the air in the steam room has reached the desired temperature, the output from the steam generator is reduced to a level sufficient to maintain it.

Technical Information

  Steam Commercial 2x9 Steam Commercial 2x12 Steam Commercial 2x15 Steam Commercial 3x9 Steam Commercial 3x12 Steam Commercial 3x15 Steam Commercial
Output 9 kW
12 kW
15 kW
18 kW 24 kW 30 kW 27 kW 36 kW 45 kW
Steam production 12 kg/hr
16 kg/hr
20 kg/hr
24 kg/hr 32 kg/hr 40 kg/hr 36 kg/hr 48 kg/hr 60 kg/hr
Length 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm 585 mm
Width 415 mm 415 mm 415 mm 415 mm 415 mm 415 mm 415 mm
Height 230 mm 230 mm 230 mm 230 mm 230 mm 230 mm 230 mm
Suitable control panel Elite Wi-Fi, Pure Elite Wi-Fi, Pure Elite Wi-Fi, Pure Elite Wi-Fi, Pure Elite Wi-Fi, Pure Elite Wi-Fi, Pure Elite Wi-Fi, Pure
Energy saving feature Yes Yes Yes Yes Yes Yes Yes
Electronic temperature limiter Yes Yes Yes Yes Yes Yes Yes
Fragrance pump control Yes Yes Yes Yes Yes Yes Yes
Level detection outside the water tank Yes Yes Yes Yes Yes Yes Yes
Automatic empty Yes Yes Yes Yes Yes Yes Yes
Automatic flush Yes Yes Yes Yes Yes Yes Yes

The steam room's minimum/mximum volume

Light wall made of glass, plastic, Elysee Excellent.

With Ventilation

  • Steam Commercial - 6-16m³ , 14-22m³ , 18-25m³
  • 2 x 9 Steam Commercial - 20-30m³
  • 2 x 12 Steam Commercial - 28-40m³
  • 2 x 15 Steam Commercial - 36-50m³
  • 3 x 9 Steam Commercial - 38-45m³
  • 3 x 12 Steam Commercial - 43-60m³
  • 3 x 15 Steam Commercial - 54-75m³

Without Ventilation

  • Steam Commercial - 13-24m³ , 22-30m³ , 28-38m³
  • 2 x 9 Steam Commercial - 28-40m³
  • 2 x 12 Steam Commercial - 38-50m³
  • 2 x 15 Steam Commercial - 56-76m³
  • 3 x 9 Steam Commercial - 46-60m³
  • 3 x 12 Steam Commercial - 58-70m³
  • 3 x 15 Steam Commercial - 84-114m³

The steam room's minimum/maximum volume

Heavy wall made of tiles, concrete, stone.

With Ventilation

  • Steam Commercial - 4-10m³ , 8-15m³, 10-19m³
  • 2 x 9 Steam Commercial - 13-20m³
  • 2 x 12 Steam Commercial - 18-30m³
  • 2 x 15 Steam Commercial - 32-42m³
  • 3 x 9 Steam Commercial - 28-40m³
  • 3 x 12 Steam Commercial - 38-50m³
  • 3 x 15 Steam Commercial - 47-63m³

Without Ventilation

  • Steam Commercial - 7-16m³ , 14-20m³ , 18-25m³
  • 2 x 9 Steam Commercial - 18-30m³
  • 2 x 12 Steam Commercial - 28-40m³
  • 2 x 15 Steam Commercial - 42-57m³
  • 3 x 9 Steam Commercial - 38-52m³
  • 3 x 12 Steam Commercial - 48-60m³
  • 3 x 15 Steam Commercial - 60-75m³
