SKU
G10280

Tylo VA Steam Generator & Control Panel

Tylo VA Steam Generator & Control Panel
Grouped product items
Product Name SKU MPN Price Qty Stock
Tylo 6VA & CC50 Tylo 6VA & CC50 42934 3394999065
£3,579.68 £2,983.07
- +
Available for
Back Order
Tylo 6 VA & h1 Tylo 6 VA & h1 42935 3394999069
£3,634.21 £3,028.51
- +
Available for
Back Order
Tylo 9 VA & CC50 Tylo 9 VA & CC50 42936 3394999095
£3,836.29 £3,196.91
- +
Available for
Back Order
Tylo 9 VA & h1 Tylo 9 VA & h1 42937 3394999099
£3,889.75 £3,241.46
- +
Available for
Back Order
Tylo 12 VA & CC50 Tylo 12 VA & CC50 42938 3394999125
£4,308.88 £3,590.73
- +
Available for
Back Order
Tylo 12 VA & h1 Tylo 12 VA & h1 42939 3394999129
£4,362.34 £3,635.28
- +
Available for
Back Order
Tylo 18 VA & CC50 Tylo 18 VA & CC50 42940 3394999185
£7,047.10 £5,872.58
- +
Available for
Back Order
Tylo 18 VA & h1 Tylo 18 VA & h1 42941 3394999189
£7,093.43 £5,911.19
- +
Available for
Back Order
Tylo 24 VA & CC50 Tylo 24 VA & CC50 42942 3394999245
£8,241.54 £6,867.95
- +
Available for
Back Order
Tylo 24 VA & h1 Tylo 24 VA & h1 42943 3394999249
£7,953.35 £6,627.79
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

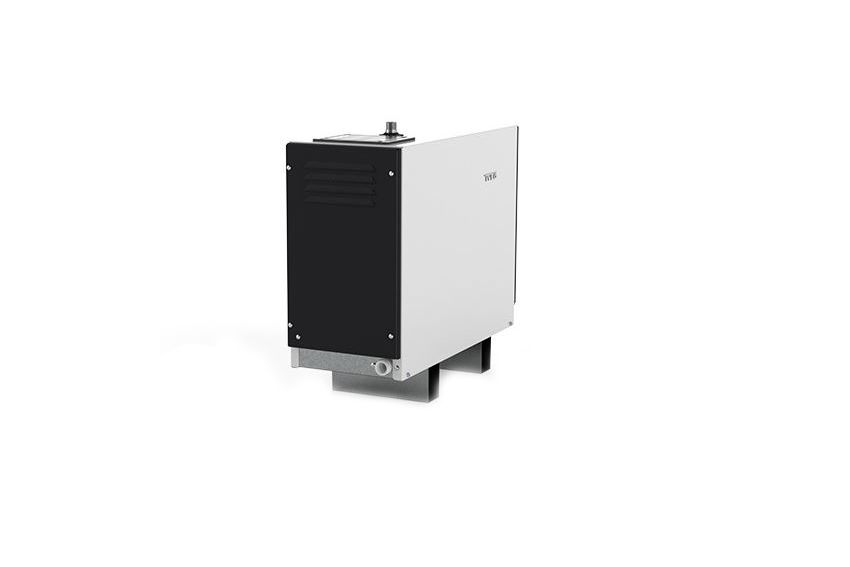

This is a VA Steam Generator and Control Panel.

  6 VA 9 VA 12 VA 18 VA 24 VA 3x9 VA* 3x12*
Output 6 kW 9 kW 12 kW 18 kW 24 kW 27 kW 36 kW
Steam production 8 kg/hr 12 kg/hr 16 kg/hr 24 kg/hr 32 kg/hr 36 kg/hr 48 kg/hr
Length 570 mm 570 mm 570 mm 615 mm 615 mm 570 mm 570 mm
Width 224 mm 224 mm 224 mm 445 mm 445 mm 224 mm 224 mm
Height 485 mm 485 mm 485 mm 485 mm 485 mm 485 mm 485 mm
Suitable control panel CC50 and h1 CC50 and h1 CC50 and h1 CC50 and h1 CC50 and h1 CC50 and h1 CC50 and h1
Energy-saving feature Yes Yes Yes Yes Yes Yes Yes
Electronic temperature limiter Yes Yes Yes Yes Yes Yes Yes
Automatic flush Yes Yes Yes Yes Yes Yes Yes

The steam room's minimum/maximum volume

Light wall made of glass, plastic, Elysee Excellence.

With Ventilation

  • 6 VA - 3-8m³
  • 9 VA - 6-16m³
  • 12 VA - 14-22m³
  • 18 VA - 20-30m³
  • 24 VA - 28-40m³
  • 3x9 VA* - 38-45m³
  • 3x12 VA* - 43-60m³

Without Ventilation

  • 6 VA - 4-15m³
  • 9 VA - 13-24m³
  • 12 VA - 22-30m³
  • 18 VA - 28-40m³
  • 24 VA - 38-50m³
  • 3x9 VA* - 46-60m³
  • 3x12 VA* - 58-70m³

The steam room's minimum/maximum volume

Heavy wall made of tiles, concrete, stone.

With Ventilation

  • 6 VA - 2-5m³
  • 9 VA - 4-10m³
  • 12 VA - 8-15m³
  • 18 VA - 13-20m³
  • 24 VA - 18-30m³
  • 3x9 VA* - 28-40m³
  • 3x12 VA* - 38-50m³

Without Ventilation

  • 6 VA - 2.5-8m³
  • 9 VA - 7-16m³
  • 12 VA - 14-20m³
  • 18 VA - 18-30m³
  • 24 VA - 28-40m³
  • 3x9 VA* - 38-52m³
  • 3x12 VA* - 48-60m³
