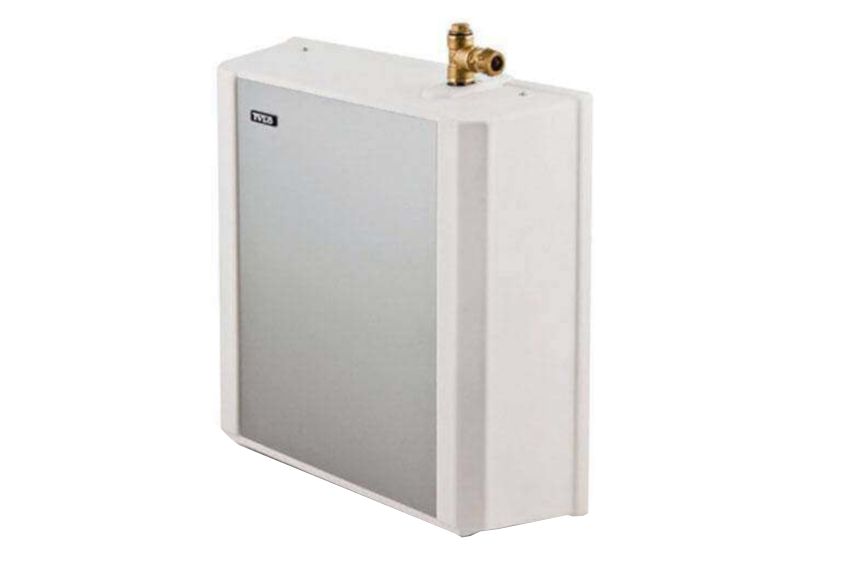

Tylo VB Generator & Control Panel

£3,022.58 £2,518.82
Out of stock. Available for back order.
A compact steam generator with the same high quality materials, functions & features as the VA
- +
Add to Wishlist

In-stock orders dispatched:14:00

This is a Tylo VB Generator and Control Panel 2 VB/4 VB/6 VB & h1.

A compact steam generator with the same high quality materials, functions and features as the VA, but with a smaller water tank to ensure rapid heating-up times in small and medium-sized private steam rooms.

  • VB steam generator has been reduced in size to be an even better solution for small and mid-sized steam rooms.
  • The steam generator is controlled by the control panel and can be placed hidden in a service room.
  • TyloHelo steam generator VB is perfect for our steam room Elysee.
  • IP rating: IP23
  • Add choice of control panel:h1 (part number: 3072001000),CC50 (part number: 71114011) or CC300
Technical Information  2 VB 4 VB 6 VB
Output 2.2 kW 4.5 kW 6.6 kW
Steam production 3 kg/hr 5.5 kg/hr 8 kg/hr
Length 445mm 445mm 445mm
Width 130mm 130mm 130mm
Height 415mm 415mm 415mm
Suitable control panel CC50 and h1 CC50 and h1 CC50 and h1

The steam room's minimum/maximum volume

Light wall made of glass, plastic, Elysee Excellent.

With Ventilation

2 VB - -
4 VB - max 4m³
6 VB - 3-8m³

Without Ventilation

2 VB - max. 2.5m³
4 VB - max.5.5m³
6 VB - 4-15m³

The steam room's minimum/maximum volume

Heavy wall made of tiles, concrete, stone.

2 VB - -
4 VB - max. 2.5m³
6 VB - 2-5m³

Without Ventilation

2 VB - max. 1.5m³
4 VB - max. 3.3m³
6 VB - 2.5-8m³
