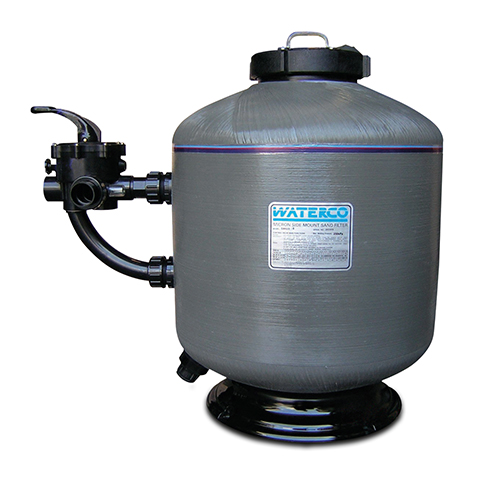

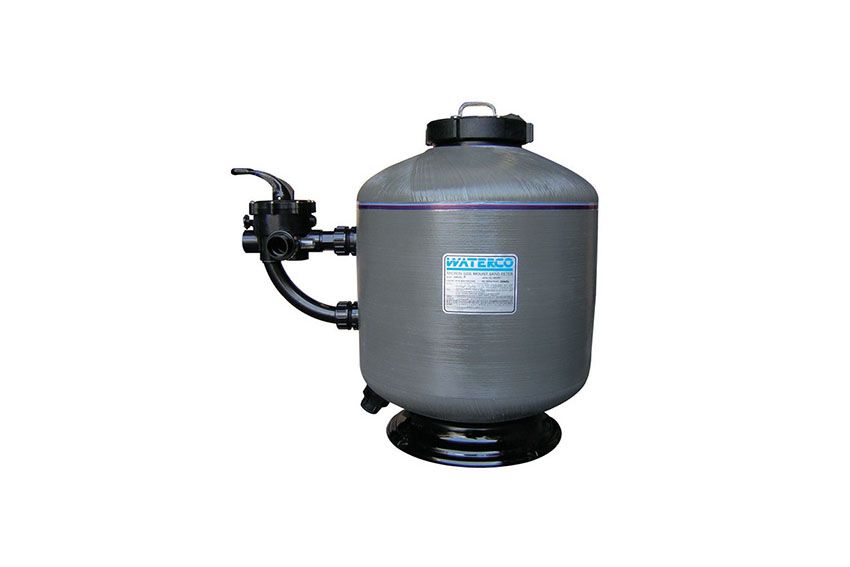

Waterco Micron Bobbin Wound Side Mount Filters with Multiport Valves

Waterco Micron Bobbin Wound Side Mount Filters with Multiport Valves
Grouped product items
Product Name SKU MPN Price Qty Stock
Waterco SM500 Micron Bobbin Wound Filter Tank, 1.5″ Multiport Valve & Gauge Waterco SM500 Micron Bobbin Wound Filter Tank, 1.5″ Multiport Valve & Gauge 12455
£648.65 £540.54
- +
2 In stock
Waterco SM600 Micron Bobbin Wound Filter Tank, 1.5″ Multiport Valve & Gauge Waterco SM600 Micron Bobbin Wound Filter Tank, 1.5″ Multiport Valve & Gauge 12456
£690.77 £575.64
- +
5 In stock
Waterco SM700 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge Waterco SM700 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge 12457
£829.07 £690.89
- +
2 In stock
Waterco SM750 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge Waterco SM750 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge 12458
£1,079.68 £899.73
- +
4 In stock
Waterco SM900 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge Waterco SM900 Micron Bobbin Wound Filter Tank, 2″ Multiport Valve & Gauge 12459
£1,387.15 £1,155.96
- +
1 In stock
Add to Wishlist

In-stock orders dispatched:14:00

Micron fibreglass filters embody the latest in fibreglass winding technology. Micron fibreglass vessels consist of an inner shell of fibreglass reinforced polyester resin wound over with fibreglass filament. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of high quality fibreglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Micron filters operate on the basis of “depth filtration”; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter’s laterals and exit via the filter’s Multiport valve

  • Fishtail lateral pattern.
  • Hydraulically balanced.
  • Uses an average of 30% less water for backwashing.
  • Maximises water flow and distribution.
  • Large, easy access clear lid.
  • Supplied with metric and imperial mutliport unions.
  • Large sand dump port.
  • Pressure rated at 2.5 bar.

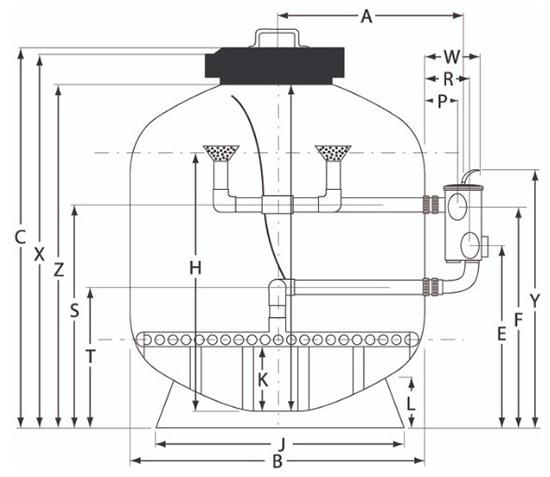

Model A B C W R P E F K V H L X Y Z J S T
Sm500 464 520 815 310 215 153 594 649 100 652 585 70 743 790 715 445 485 283
Sm600 516 622 880 310 215 153 629 684 105 680 601 88 804 825 778 540 520 317
Sm700 565 719 948 321 248 178 520 601 120 728 685 90 905 750 835 620 520 317
Sm750 587 772 993 321 248 178 593 674 113 763 652 120 914 823 892 678 593 390
Sm900 687 923 1115 321 248 178 656 737 130 860 750 120 030 886 1011 678 658 453
Product Code Model Metric (mm) Imperial Bed Depth (mm) Filter Area sq m³ Connections m_/hr @ 50 Sand (kg) Zeoplus (kg) Max. Pool Size m² Com. Flow m³/hr Min. Pool Size m²
1552253350 SM 500 500 20" 290 0.2 50 mm/1.5" 10,90 90 74 56 7 43.2
1552253360 SM 600 600 24" 360 0.28 50 mm/1.5" 14,140 140 115 81 10 60.5
1552253370 SM 700 700 28" 380 0.38 63 mm/2" 19,190 190 156 111 14 82.1
1552253375 SM 750 750 30" 400 0.44 63 mm/2" 21,210 210 173 127 16 95
1552253390 SM 900 900 36" 400 0.64 63 mm/2" 31,360 360 296 183 23 138.2

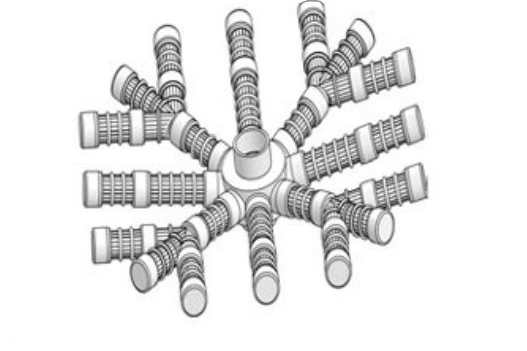

Fishtail Laterals

  • Uses an average of 30% less water for back-washing
