Waterco Spare Parts for SMD and SMDD Filters

Spare Parts for Waterco SMD and SMDD Filters

Grouped product items
Product Name	SKU	MPN	Qty	Stock
Waterco Side Mount Water Diffuser (Funnel) - Rose only - 8"	Waterco Side Mount Water Diffuser (Funnel) - Rose only - 8"	11025	£18.31 £15.26	- +	Available for Back Order
Waterco Drain Plug Complete - 15mm	Waterco Drain Plug Complete - 15mm	11037	£26.63 £22.19	- +	Available for Back Order
Waterco Lateral - 75mm (Threaded)	Waterco Lateral - 75mm (Threaded)	11040	£5.33 £4.44	- +	Available for Back Order
Waterco Lateral - 110mm (Threaded)	Waterco Lateral - 110mm (Threaded)	11041	£6.17 £5.14	- +	Available for Back Order
Waterco Lateral - 145mm (Threaded)	Waterco Lateral - 145mm (Threaded)	11042	£6.50 £5.42	- +	Available for Back Order
Waterco Lateral - 200mm (Threaded)	Waterco Lateral - 200mm (Threaded)	11043	£9.48 £7.90	- +	Available for Back Order
Waterco Lateral Threaded Cap	Waterco Lateral Threaded Cap	11044	£4.50 £3.75	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

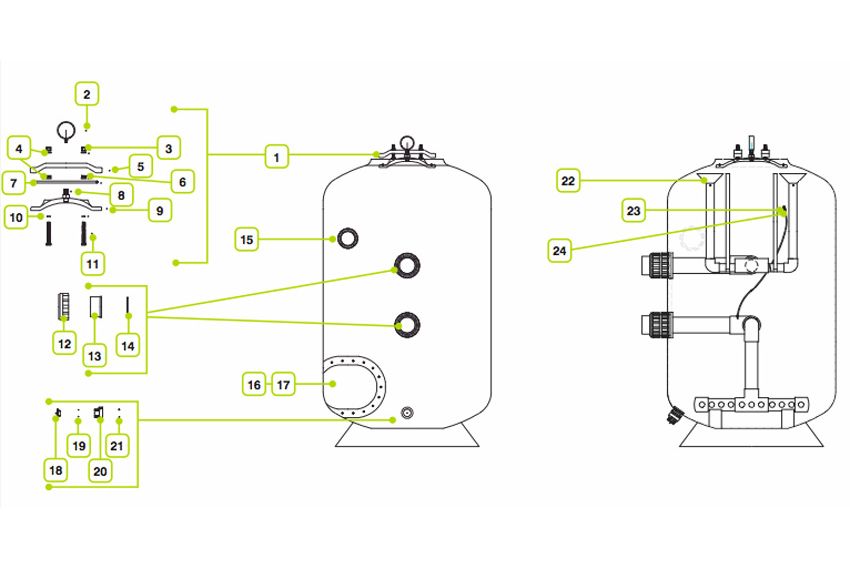

SKU	Description	Picture Number	Notes
11025	Funnel for 3" & 4" port size - 80mm & 100mm	22	4 required
11036	Drain Plug Complete - 40mm	18-20
11037	Drain Plug Complete - 15mm	18-20
11040	Lateral - 75mm (Threaded)	-
11041	Lateral - 110mm (Threaded)	-
11042	Lateral - 145mm (Threaded)	-
11043	Lateral - 200mm (Threaded)	-
11044	Lateral Threaded Cap	-
11045	Lateral Threaded Plug (SM900 with 3" ports)	-
11047	Side Mount Pressure Gauge (Oil Fired) - 400k PA	2
11048	Dry Bottom Mount Pressure Gauge - 600k PA/90PSI	2
11049	Hex Nut - M16	3	4 required
11050	Washer (S/S304) - M16	4	8 required
11051	Lid Yoke Lacron	5	2 required
11052	Hex Thin Nut	6	4 required
11054	SMDD Manhole 'O' Ring Oval	7
11055	Stainless Steel Screw - 1 inch BSW Male 1/4 inch B	8
11056	Manhole Cover Only - Oval 4 Stud	9
11057	Hex Bolt - N16 x 120mm	11	4 required
11058	Black Barrel Union Lock Nut - 80mm	Dec-13	2 required
11059	Black Barrel Union Lock Nut - 100mm	Dec-13	2 required
11060	'O' Ring B/U - 80mm	14
11061	'O' Ring B/U - 100mm	14
11062	Gasket for Side Manhole - Oval 18 Hole	17
11063	'O' Ring for Side Hatch, round - 200mm	17
11066	'O' Ring B/U EPDM - 40mm	21
11068	Funnel 6 inch Port Size - 150mm	22	4 required
11069	Air Relief Tube Screen	23
20559	'O' Ring Manhole Cover - Oval - 43 Stud	7
20560	'O' Ring (BS113)	10	4 required

Quantity of Laterals Required

Model	Manifold	Laterals - 75mm	Laterals - 110mm	Laterals - 145mm	Laterals - 200mm	Lateral End Cap (Female)	Lateral End Plug (Male)
SMD/SMDD 1050 - 2”/63mm Port	2”/63mm	-	8	8	-	8	-
SMD/SMDD 1050 - 2.5”/75mm Port	2.5”/75mm	8	16	-	12	20	-
SMD/SMDD 1050 - 3”/50mm Port	-	8	20	10	4	32	4
SMD/SMDD 1200 - 2”/63mm Port	2”/63mm	8	-	-	16	8	-
SMD/SMDD 1200 - 2.5”/75mm Port	2.5”/75mm	16	4	20	12	28	-
SMD/SMDD 1200 - 3”/90mm Port	-	2	26	8	6	32	4
SMD/SMDD 1200 - 90 Port with Lateral Manhole	-	3	6	25	6	32	4
SMD/SMDD 1200 - 4”/110mm Port	-	4	4	4	36	-	48
SMD/SMDD 1400 - 3”/90mm Port	-	8	8	36	14	48	4
SMD/SMDD 1400 - 4”/110mm Port	-	10	8	12	32	-	52
SMD/SMDD 1600 - 3”/90mm Port	-	4	16	42	18	48	4
SMD/SMDD 1600 - 4”/110mm Port	-	10	22	22	38	-	60
SMD/SMDD 1600 - 6”/160mm Port	-	18	8	80	14	-	68
SMD/SMDD 1800 - 4”/110mm Port	-	8	42	22	68	-	76
SMD/SMDD 1800 - 6”/160mm Port	-	46	4	22	68	-	76
SMD/SMDD 2000 - 4”/110mm Port	-	2	52	20	74	-	80
SMD/SMDD 2000 - 6”/160mm Port	-	22	54	30	68	-	80
SMD/SMDD 2000 - 160 Port with Lateral Manhole	-	22	53	29	68	-	80
SMD/SMDD 2200 - 6”/160mm Port	-	64	34	30	88	-	96
SMD/SMDD 2350 - 6”/160mm Port	-	4	62	42	122	-	104
SMD/SMDD 2500 - 6”/160mm Port	-	54	4	20	160	-	108
