Waterway 56 Frame 2" Side Discharge Pumps

• If there is only one rating then it will be a single speed, if there is two, you guessed it ... two speed.
• AMP ratings will typically be 5 – 7 amps = 1.5 (HP), 7–9 amps = 2.0 (HP), 9–11 amps = 2.5 (HP), 11–12 amps = 3.0(HP) & 14–15 amps = 4.0 (HP)
• RPM rating will normally be 1450 for low speed and 2900 for high speed.

Most wet ends can be rotated to 3, 9 and 12 o'clock so no need to worry about that.

It is worth checking overall dimensions of the pump before ordering to ensure you have enough space for the new pump.

Now you have all the information to look through our Jet Pump Range!

Motor Features:

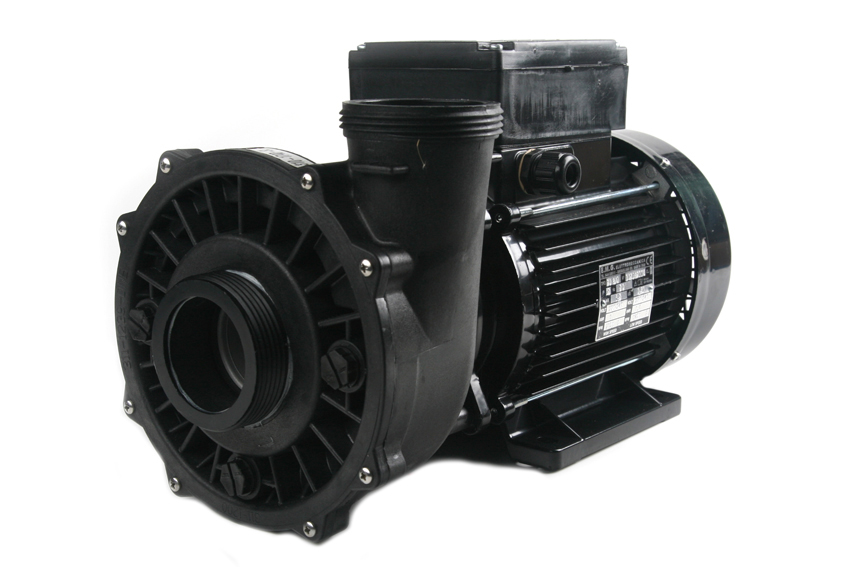

• Water repellent Italian-made EMG or EME motor - you may find that your pump has a smooth body, as opposed to the style illustrated above. This motor may be made by a different company, our motors are specific for the UK market.
• 56-frame motor for added strength, cooler operating temperature and longer motor life - we can still supply the original 48 frame but we recommend the 56 Frame for extended life.
• Two double shielded ball bearings with moisture-resistant grease for quieter operation.
• Two-speed motors have four sets of insulated windings for increased efficiency.
• Split capacitor, (start and run) for less energy consumption
• Thermally protected to extend the life expectancy of motor
• IPX5 construction

Wet End Features:

• High performance, specifically designed for 56-frame motors.
• Large intakes for improved low performance and noise reduction.
• Large 6" diameter wet end for higher head pressure, highly versatile that can be rotated every 90°

Smooth Body

If your existing Waterway Pump has a smooth body as opposed to a finned body it may have an Emerson, AO smith or Century Laser motor, these are all replaced by this European spec. motor (EMG or EME) which is recommended by Waterway for the European market.

Always check the dimensions of where your old pump sat as these European models are slightly taller than the smooth body models due to having their capacitors positioned on top of the motor.

Fits Hot Tubs

It fits nearly all US imported spas including Arctic Spas, Beachcomber Hot tubs, Canadian Spas, Coyote Spas , Hotspring Spas , Hydropool Hot Tubs, Hydrospa, Leisure Bay, Leisurerite, Sapphire Spas, Saratoga, Sierra Spas, Southwest Spas amongst others.

The 2 speed / 2hp option is a direct replacement for Master Spas part number X320515

Replaces PF201N22X (single speed) & PF202N22X (two speed), in most cases, you will find that the wet end P/N 315-1220 found on the back of the wet end casing, (shown in photo gallery) is the same but the motor may be made by a different company. This is its direct replacement.

A common problem is with the discontinued Hydropool and Canadian spa pump, the PEUL2H pumps, are now discontinued, in the photo gallery you can see the Waterway 2hp (dependant on existing amp draw) unit can be used as a direct replacement this customer bought a pump and it fitted straight in - we do not guarantee a straight fit but most times you will get lucky - the trick is to see if the pipework is flexible enough to accept the slightly differing wet end (about 1/2 inch difference) and then no pipework change is required to email us to help - a photo always helps.

Please note we supply the unit in the standard orientation, in less than three minutes you can rotate it to your required position. To understand orientation have a look at "Pump Specifying".

The pumps are supplied without pipe unions and cable, therefore you will need to rewire your existing cable to the pump to ensure correct fitment to your spa pack.

Obviously, with the number of pumps in the marketplace, there are varying wiring configurations and different colour wires, making it quite confusing, our guide below clarifies the differences. A Wiring diagram is usually included inside the pump terminal box. We advise that the pump is fitted and wired by a qualified hot tub engineer.

A power cord is dedicated to your model of control system, remove the cord from your old pump, and note, that the wire colour going to high-speed or low-speed terminals on any motor, the colour is set or determined by the maker of the spa control, not by the pump or motor manufacturer.

Before you remove the power cord from your old pump, look at the old motor wiring label and make a note of what colour goes to high, and to low. Then, put the cord on your new motor/pump, using the same colour for high as on the old motor and also for low-speed wiring.

Please note: with effect from February 2021, the wetend will only be manufactured with 1 x drain /bleed screw at the base of the faceplate. The images above may differ to the wetend received.

We know there are certain types of Waterway pump that we can help you specify - Please contact us to discuss if you have any of the following part codes:

PF-15-2N11C4
PF-20-2N22C4
PF-20-2N22C4
PF-45-2N22C4
PF-50-2N22C4
PF-20-1N12C4
PF152N22C4
PF152N11C4
PF-20-2N22C
PF-30-2N22C4
PF-30-1N22C4
PF301N22C4
PF-50-1N22C4
PF-45-1N22CG
PF-40-1N22C4
PF-40-1N22CG
PF-45-2N22C
PF502N22C
PF-50-2N22F
PF-10-1N22X
PF-20-1N22X
PF-20-2N22X
PF-25-2N22X
PF-30-1N22X
PF-25-2N22F (red wet end).
PF-35-2N22C 4

Please be advised that PF-30-2N22X replaces PN52N25X
