SKU
G5612

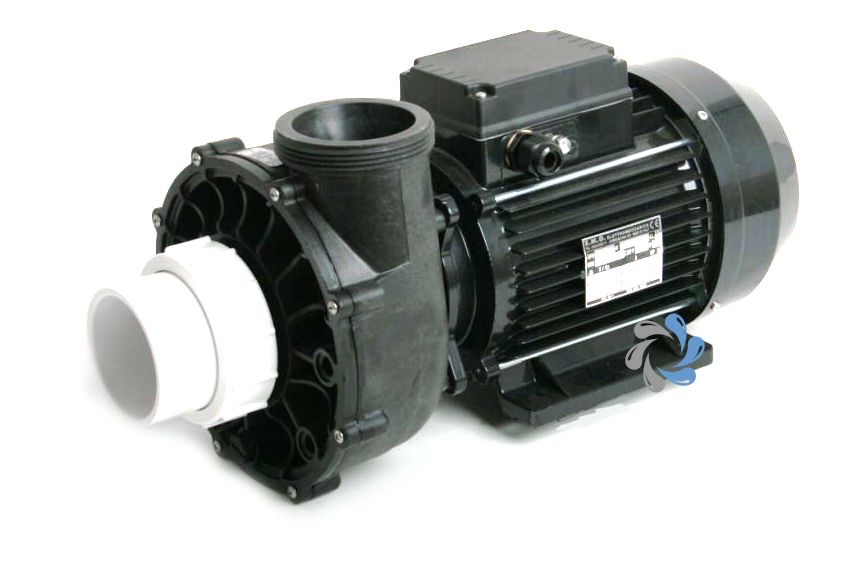

Waterway Viper Pump Range
These Viper pumps are available in both single and twin speed, ideally suited for use in swim spas - usually they use 2.5 x 2.5 inch Waterway unions.
In-stock orders dispatched: in 11hrs 32mins
These single and two-speed Viper pumps are ideally suited for use in swim spas, they are high-powered pump due to having large 2.5" suction and discharge connections on the wet end.
View our video in the gallery to see "How to Identify your Hot Tub Pump"
- Viper wet ends have 56 Frame Motors / cooler operating temperature for longer life.
- Quieter operation and longer life span.
- 56 Frame motor for added strength, cooler operating temperature and longer motor life.
- 2 1/2" intake improves the flow performance and reduces noise
- The larger than normal 8" diameter wet end provides increased volume capacity
- A split capacitor means less energy consumption
- Thermally protected motor
- Wet end can be rotated every 90 degrees
See photo gallery above.
| Single Speed | Two Speed | |
|---|---|---|
| Amps: | 12.4 | 12.4 / 2.5 A |
| Volts: | 230 | 230 |
| Hz: | 50 | 50 |
| HP: | 3 | 3 |
| Impellor: | 5 | 5 |
| Fittings: | 2.5 x 2.5 inch | 2.5 x 2.5 inch |
| Capacitors: | 30µf | 30 / 16 µf |
| Formerly: | 3722021-CESP | 3722022-CESP |
Please note no cable supplied with pump, you will need to use your existing cable
