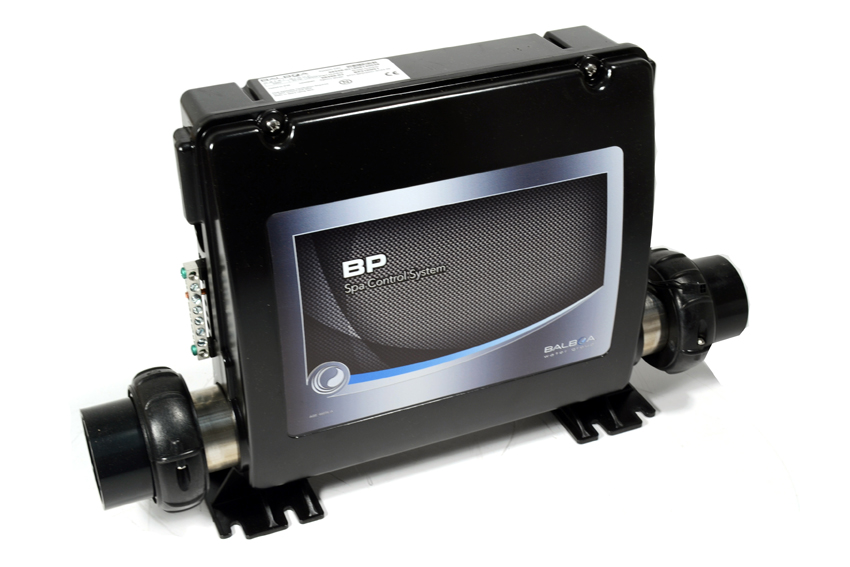

Balboa BP2100 Control Box

Starting at £44.58 £37.15

The worlds best spa pack designed for use with WiFi receiver for phone operation.

Grouped product items
Product Name	SKU	MPN	Price	Qty	Stock
Balboa BP2100 Control Box	Balboa BP2100 Control Box	17254	56390-05	£712.99 £594.16	- +	1 In stock

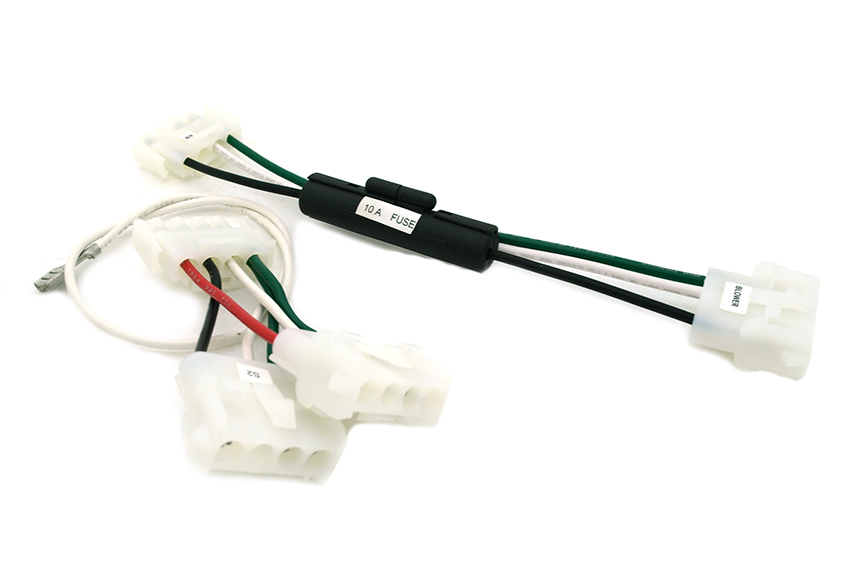

Balboa BP2X-Wire Kit for Blower	Balboa BP2X-Wire Kit for Blower	21373	30893	£44.58 £37.15	- +	Available for Back Order

Add to Wishlist

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

We are The UK's Official Distributor for Balboa Water Group.

Part Number 56390-04 has an RRP including VAT of: £1009.98
Part Number 30893 has an RRP including VAT of: £47.87

We have shortlisted our BP2100 range to the more advanced BP2100G1 and removed the BP2100G0 (56663-03) as it does everything the G0 pack does. This pack also replaces all setting in Balboa BP6013G2 Control Box (59126) and can be used as a direct replacement

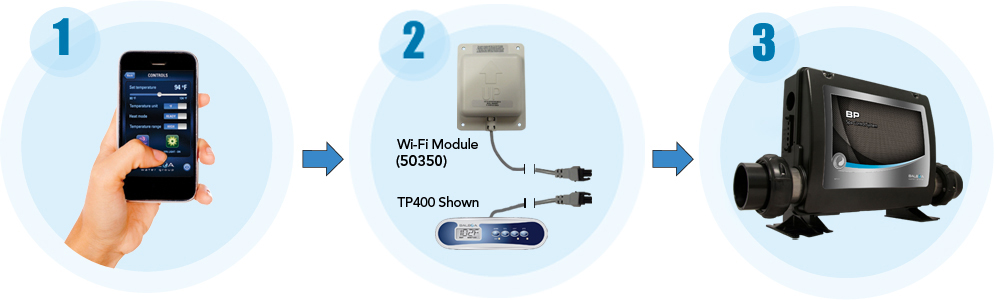

This next generation Balboa BP2100 spa control pack comes WiFi ready and connects to the Balboa Worldwide app using the Balboa Wifi Receiver Module.

The Balboa Worldwide App is an app for your smart device (Android and iPhone) that allows you to access your hot tub via a direct connection anywhere in the local proximity of your tub, anywhere in your house that you can connect to your local WiFi network, or anywhere in the world you have an internet connection to your smart device via 3G, 4G, or WiFi hot spots.

With the BWA app, you can ensure that your hot tub will be ready whenever you want to take a dip.

Instead of going outside and pressing buttons on the topside panel, the app lets you start the tub and change settings from your smartphone or tablet.

Dimensions

Height: 300mm
Length: 330mm (not including heater)
Depth: 120mm

Specifications

Pump 1: Either a Dual speed pump or a Single speed pump and separate circulation pump.
Pump 2: Either a Single or Dual speed pump
Pump 3: Either a Dual speed pump or a Single speed pump, if a blower is being used below
Air Blower: Single speed blower (if pump 3 above is single speed)
Heater: x 1 (3kW, plug)
Ozone: x 1
Light: x1, 10v @ 1amp Max
Radio/TV/AV: Point available
Volts: 230vac
Hz: 50
These packs have a number of possible set ups. They are shipped in Set Up 1 mode so you may need to amend the dip switches on the PCB and the set up program within the topside controller according to your specific set up. Please refer to the tech sheet in the above associated documents. Some set ups may require an additional purchase of the BP2X-wire kit. This is available above.

Ideal For

Replacement for Wellis P/N ACM0545

Can Be Used With

Check with us because of the configuration you will be using but this can be used with Balboa TP Series Topside panels such as TP200, TP540, TP500 range, TP600, TP700, SPATOUCH 2HT, SPATOUCH2 Trapezoid, SPATOUCH3, SPATOUCH4, SpaTouch Mini

Additional Info

You will also need the Balboa Wifi Receiver Module in order for this product to work via Wifi.

Wiring orientation from top to bottom is Earth / neutral / empty / live
Or for 2 speed pump top to bottom is Earth / neutral / low speed / high speed
Or for 1 speed pump top to bottom is Earth / neutral / empty / high speed

Associated Documents

Label	Type	Size	Download
1-2-3 Easy Installation Guide	pdf	844.1 KB	Download
BP2100 Tech Sheet	pdf	334.9 KB	Download
BP troubleshooting guide	pdf	2 MB	Download
Balboa BP2100 Specific Installation Guide	pdf	2 MB	Download
BWA App User Guide	pdf	648.2 KB	Download
BWA Quick User Guide	pdf	2.4 MB	Download
