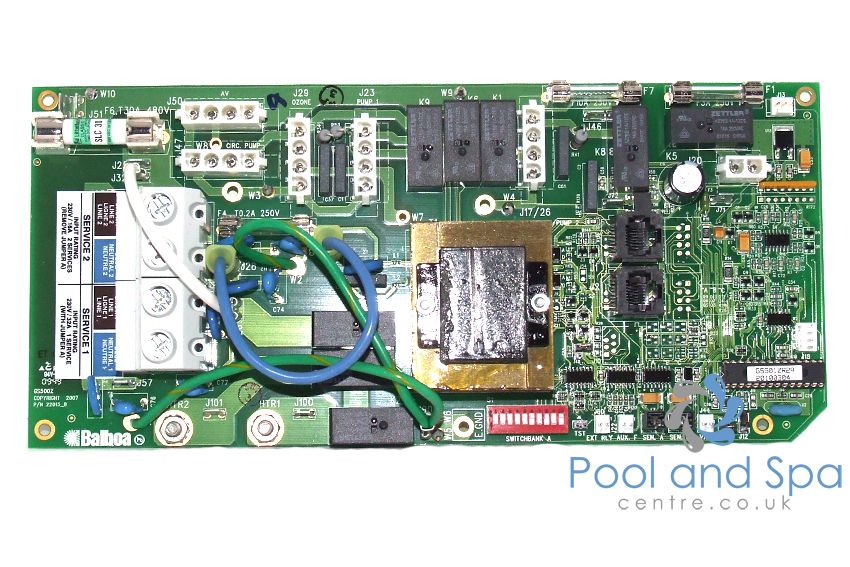

Balboa GS501Z PCB

This PCB is compatible with a GS501Z control box, used in Spaform Spas and Great Lakes, it is a direct replacement for GS501 (53341) or pack 53340-02.

Also know to work as a replacement for 55514.

Shown in the photo gallery is a Infinity Spa by blue waters - this is the direct replacement for that board.

Also is the direct replacement for Master Spas part number X801094.

Port J17 allows either a blower or another 1 speed pump to be run, protected by 10amp fuse (quick blow)

This hot tub circuit board must only be fitted to the hot tub control system specified, it should be fitted by a competent individual as all our boards are tested prior to sending out, so we recommend you read our easy to understand PCB installation notes in our troubleshooting section.

IMPORTANT INFORMATION:

Circuit boards and other computerised equipment are exempt from our returns policy if they have been opened or installed.

If the board is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the board is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.
