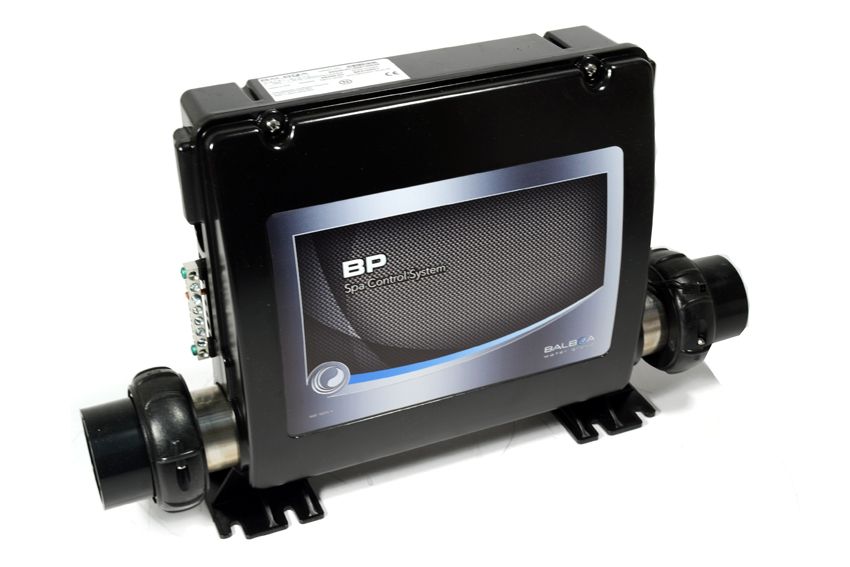

Balboa BP21P4BC Control Box

£845.76 £704.80
Out of stock. Available for back order.

Mainly used on swim spas, the BP21P4BC Control Box offers up to 8 different setups!

56626-02
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are The UK's Official Distributor for Balboa Water Group.

  • Part Number 56626-02 has an RRP including VAT of: £1050.87

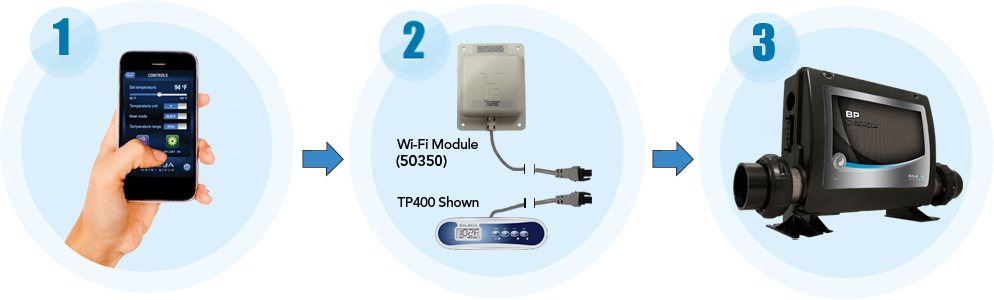

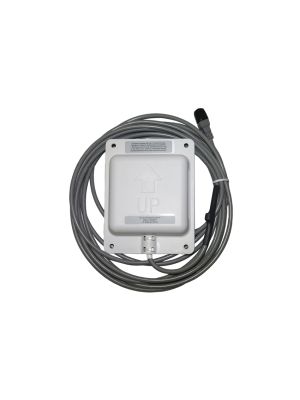

This next generation Balboa BP2100 spa control pack comes WiFi ready and connects to the Balboa Worldwide app using the Balboa Wifi Receiver Module.

The Balboa Worldwide App is an app for your smart device (Android and iPhone) that allows you to access your hot tub via a direct connection anywhere in the local proximity of your tub, anywhere in your house that you can connect to your local WiFi network, or anywhere in the world you have an internet connection to your smart device via 3G, 4G, or WiFi hot spots.

With the BWA app, you can ensure that your hot tub will be ready whenever you want to take a dip.

Instead of going outside and pressing buttons on the topside panel, the app lets you start the tub and change settings from your smartphone or tablet.

  • Height: 300mm
  • Length: 330mm (not including heater)
  • Depth: 120mm
  • Pump 1: Either a Dual speed pump or a Single speed pump and separate circulation pump.
  • Pump 2: Either a Single or Dual speed pump
  • Pump 3: Single speed pump
  • Pump 4: Single speed pump
  • Air Blower: Single speed blower (if pump 2 above is single speed)
  • Heater: x 1 (3kW, plug)
  • Ozone: x 1
  • Light: x1, 10vac @ 2amp Max
  • Radio/TV/AV: Point available
  • Volts: 230vac
  • Hz: 50
  • These packs have a number of possible set ups. They are shipped in Set Up 1 mode so you may need to amend the dip switches on the PCB and the set up program within the topside controller according to your specific set up. Please refer to the tech sheet in the above associated documents.

Balboa TP Series Topside panels such as TP200TTP240TP260TTP400TP500TP600 & TP700



Icon Label Type Size Download
pdf Balboa RRP's - Customer Reference pdf 381.5 KB Download
pdf 1-2-3 Easy Installation Guide pdf 844.1 KB Download
pdf BWA App User Guide pdf 648.2 KB Download
pdf BWA Welcome Guide pdf 1.5 MB Download
pdf BP System Troubleshooting pdf 2 MB Download
pdf BP21P4BC Tech Sheet pdf 2.1 MB Download
