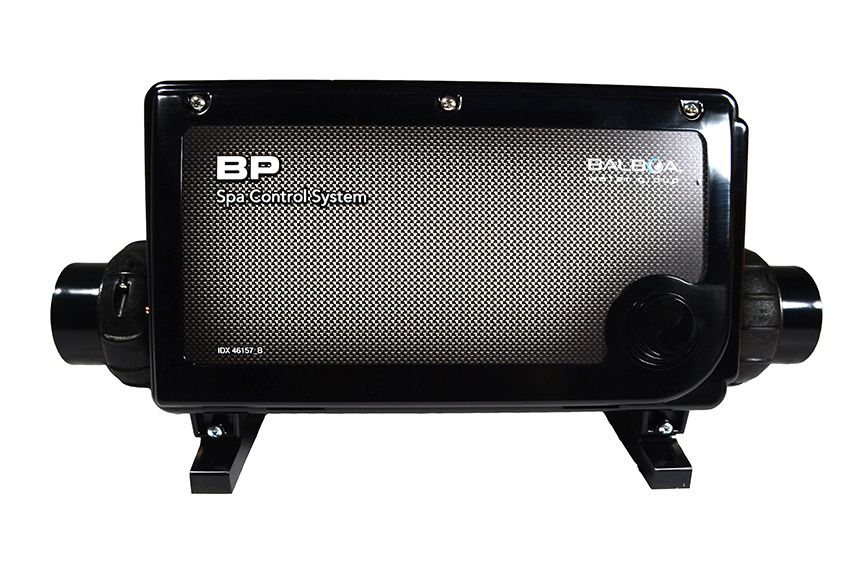

Balboa BP200G1 Control Box

• Lowest cost entry level BP System
• Compact size with removable feet
• Attached or remote heater
• BP capable features
• WiFi (bwa™ & ControlMySpa™), Balboa Bluetooth Audio (bba™), Newest TP/SpaTouch™ Panels
• Can be customized to fit your needs
• BP100: North America. BP200: International

• Length: 435 mm (inc heater) 330 mm (box only)
• Width: 160 mm
• Height: 220 mm

Pump 1: Dual speed pump or Single speed if circulation pump used
Heater: x 1 (3kW)
Light: 1 Amp Max at 10 volts

Balboa TP Series Topside panels such as TP400 and TP600  and TP800, TP900

• The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
• This system has been designed to be able to run from the comfort of your home or whilst you are at work or away.
• With the addition of the new WiFi receiver, the BP200 can be operated via Android®, iPhone®, iPod touch® or iPad®
• This is a generic unlicensed control box.
• This unit must be fitted by a competent individual or tradesman.
• Incorrect installation could invalidate the warranty.dim
