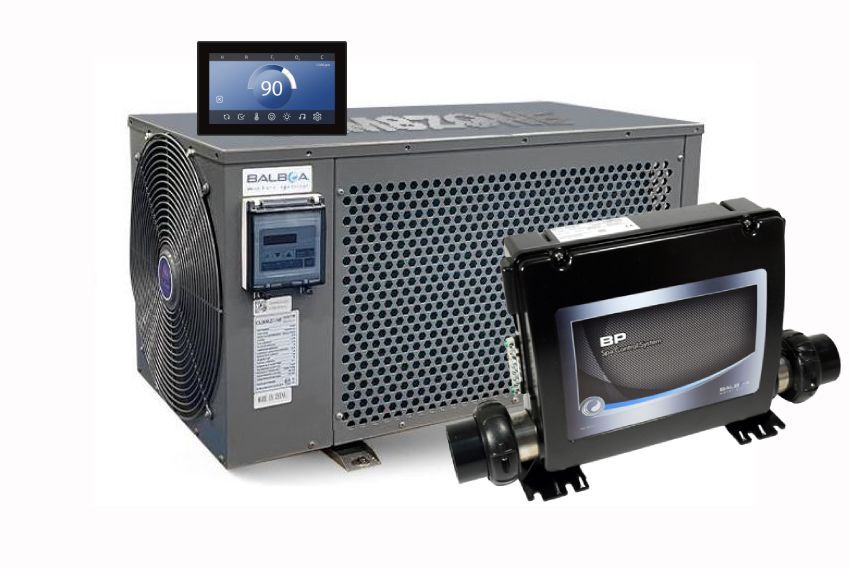

We are the Balboa Distributor in the UK, as such we have a Technical Team on hand to help you through this process of upgrading your old Hot Tub or Swim Spa system with the revolutionary Balboa Clim8zone Air Source Heat Pump / Spa Pack & Balboa SpaTouch Mini Topside to suit your existing component setup....this is the perfect kit that future proofs your system for years to come and is very energy efficient.
This is the BP2100 with SpaTouch3 option - in essence the BP2100 can handle pump two as a 2 speed - thats the difference.
Keeps things simple
Rather than making a complicated page, further reading on the individual components can be found here, don't forget unlike other companies we have a dedicated technical team to answer any of your queries and aid you through the process
1) Balboa Clim8zone Air Source Heat Pump2) Balboa SpaTouch 3 Topside Panel - Black3) Balboa BP2100 Control Box
Bypass Kit
Below are the components to quickly build a bypass kit:2x SKU 14862 2inch Tee2x SKU 14961 2inch - 1.5inch reducing Bush ( glues into the tees)2x SKU 3240 1.5inch Ball Valve1X SKU 3242 2 inch Ball Valve2x SKU 43184 1.5 inch rigid pipe.1 x Glue1 x Cleaner
As always our technical team is here to offer guidance and advice
Clim8zone Heat Pump Union Nut and Socket.
Cables
If upgrading from an even older system or a different manufacturer, typically the process is the same, but, you will probably have to convert your old cables (typically JJ plugs) over as this box uses plastic amp plugs to connect to the circuit board, from all internal components i.e. pumps, ozone & blowers.
An example of what you will need is:1 x 4 pin cable (2 speed pump)2 x 3 pin cable (1 speed pump, blower or ozone)1 x 2 pin cable (Spa light)
You have your existing cables so these are not supplied with the packs, you typically just need some AMP plugs and the AMP chrimps.
Topside
The size and shape of where your existing topside fits will determine your action when fitting the Spatouch3 topside, the link above for this product shows its size templates to help you make an informed choice on whether it fits in the desired space.
This may require cutting the shell but more than likely not.
Topside Installation
We have produced a generic step by step guide for fitting your new topside here
Due to the vast array of sealants in the marketplace we only recommend using Silcoset Silicone Sealant - the industry leader
