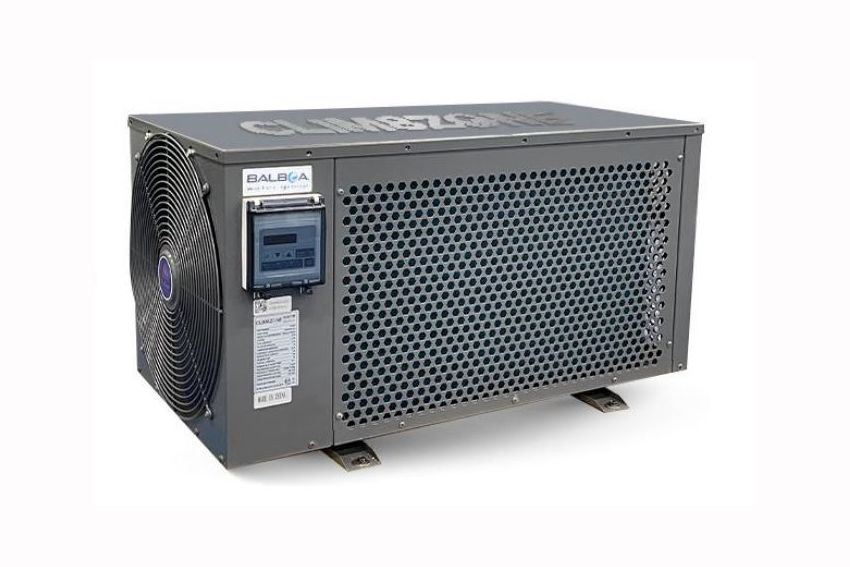

Balboa Clim8zone Air Source Heat Pump

£1,345.32 £1,121.10

Availability: 1 In stock

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

RRP for our Clim8zone at £1850 including VAT (£1541.66 excl VAT)

Balboa Clim8zone is an experience you wont find anywhere else, the first of its kind, Clim8zone combines exclusive energy efficient technology with the ability to heat and cool the spa water.

Its the perfect heat pump to use with your existing Balboa and Gecko packs, unlike the other heat pumps on the market this is made specifically by the system provider and comes with 2 years warranty and all the guidance that we as the UK Distributor have to offer through our in-house Technical team.

Don't get overawed by all of this, we have carried out hundreds of installations, we even have recommended engineers to carry out the work if you don't feel up to carrying out the upgrade.

Delivery is direct and takes approximately 5-7 days. Please have a look at our Heat Pump Guide - it easily explains everything

Save costs, cut down on bills and make the sensible choice, go with the manufacturer, not inferior, unproven Chinese alternatives.

Features

Unlike other spa heat pumps on the market, Clim8zone™ functions at low ambient air temperatures (-20ºC/-4ºF) in colder climates.
Operates quietly at less than 50dBA.
Variable speed compressor with smart algorithm.
Fully integrated with the BP Systems and uses the same spa heating pump as the spa's traditional electric element heater.
Features a typical energy efficiency (COP) of 5 to 10 times a traditional spa heater and may reach up to 15 times in certain operating conditions, using less energy to keep the water hot, providing smart savings.
Allows the spa user to set the spa BP Control System to utilize the Clim8zone™ Heat Pump alone, the spa's traditional electric element heater alone, or both simultaneously when necessary

Dimensions

1 Enclosure Lid
2 Mounting Feet
3 Fan
4 Air Vents
5 Condensation Drain Spout
6 Lid Screws
7 Water Output
8 Water Input
9 Control / Data Box
10 Power Line Box
11 Bonding Lugs (North America)

Minimum Clearance

Follow the minimum clearance requirements shown below during installation and operation of the CLIM8ZONE TM unit.
These clearances insure proper air flow. All air vents must be unobstructed and free of debris.

DO NOT install the CLIM8ZONE TM unit indoors.

It is recommended that the CLIM8ZONE TM unit be installed no more than 6.5 feet (2 meters) from the Hot Tub.

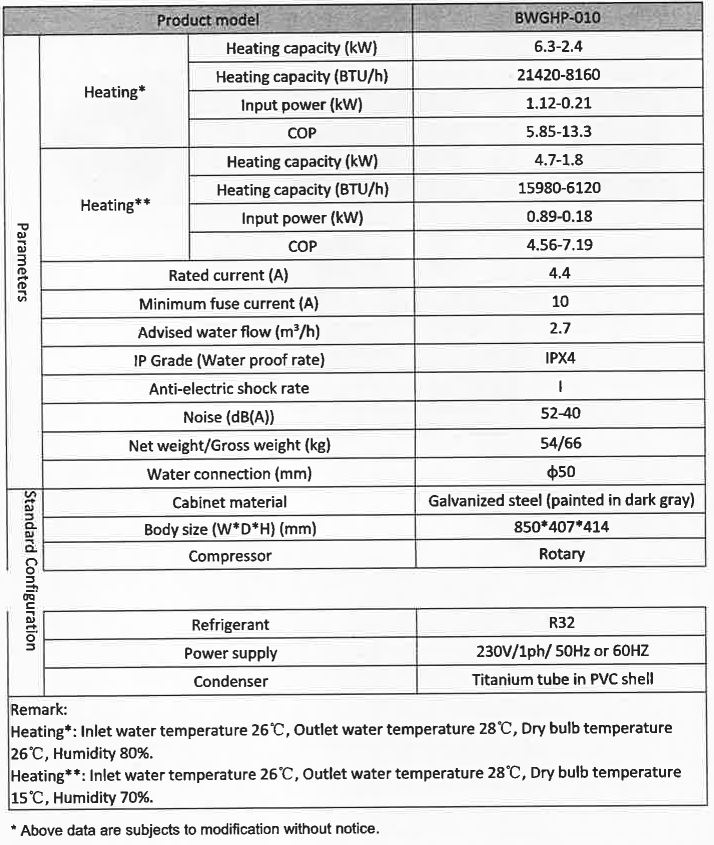

Specifications

Can Be Used With

Clim8zone is compatible with the following spa control.

BP Control Systems

The CLIM8ZONE unit is compatible with BP Control Systems that have one of the following agency prefixes and must have C8Z in the description on the identification label:
BP20
BP21
BP501
BP6
BP2
BP1

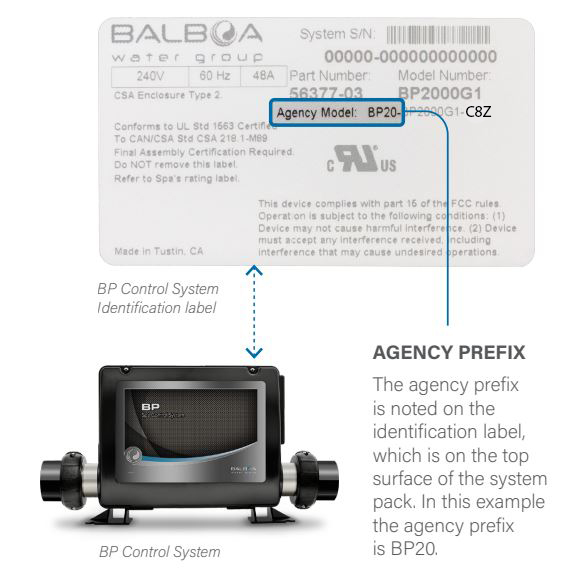

The agency prefix is noted on the control system identification label

Below are the components to quickly build a bypass kit:

2x SKU 14862 2inch Tee
2x SKU 14961 2inch - 1.5inch reducing Bush ( glues into the tees)
2x SKU 3240 1.5inch Ball Valve
1X SKU 3242 2 inch Ball Valve
2x SKU 43184 1.5 inch rigid pipe.
1 x Glue
1 x Cleaner

As always our technical team is here to offer guidance and advice

Control Panels

The Clim8zone works with the following panels

Here is the information on what topsides this pack can work with, if you are keeping your existing TP topside:

SpaTouch Mini

spaTouch™3 - Any version (version 3.2 or later required for Clim8zone™ heat pump support)
spaTouch™2 - Any version (version 2.19 or later required for CHROMAZON3™ support; version 2.36 or later required for Clim8zone™ heat pump support)
Icon spaTouch™ - Any version (version 3.36 or later required for bba™2 fully integrated functionality)
Menued spaTouch™ - Any version (version 2.8 or later required for bba™2 integrated functionality)
TP900* - Version 3.1 and later (Version 3.13 or later required for bba™)
TP800 - Version 3.1 and later (Version 3.13 or later required for bba™; version 4.11 or later required for bba™2 integrated functionality)
TP700/TP740 - Any version
TP600 - Version 2.7 and later (Version 2.12 or later required for bba™/bba™2 On/Off control via menu)
TP500 - Any version -- only usable in those Setups that have at most one other piece of equipment (Pump 2 or Blower) in addition to Pump 1
TP400T CE* - Version 2.7 and later (TP400T US should not be used) (Version 2.12 or later required for bba™/bba™2 On/Off control via menu)
TP400W CE* - Version 2.7 and later (TP400W US should not be used) (Version 2.12 or later required for bba™/bba™2 On/Off control via menu)
TP200T* - Any version
TP200W* - Any version

* The TP900 and TP400/TP200 series panels are not supported in all Setups. See the Panel Configuration pages for these panels for details.

Instructions

Temperature Modes

Clim8zone has four Temperature modes for heating/cooling spa water.

1. Heating Mode (default)

This mode only heats the spa water. All cooling with the CLIM8ZONETM unit is disabled.

2. Cooling Mode

This mode only cools the spa water. All heating with the CLIM8ZONETM unit is disabled.

3. Heating and Cooling Mode (default)

This mode heats and cools the spa water with the CLIM8ZONETM unit enabled.

4. Disabled

Speed Modes

Clim8zone had three speed modes

1. Auto Smart (default)

For Heating or Cooling
Uses Artificial Intelligence
Variable Heating/Cooling capacity
The CLIM8ZONETM computer automatically adjusts the compressor frequency up or down using an algorithm that is based on ambient air temperature and water temperature.
This algorithm balances a best case in most conditions for efficiency and noise vs heating/cooling output of the CLIM8ZONE unit.

2. Manual High

For Heating or Cooling
Highest Heating Capacity
Fastest Water Heating/Cooling
Low COP (i.e. Low Energy Efficiency)
High Compressor Frequency – Fixed, i.e. does not adjust based on environmental conditions
The CLIM8ZONE unit Compressor Noise is Maximum

3. Manual Low

For Heating or Cooling
Lowest Heating/Cooling Capacity
Slowest Water Heating
High COP (i.e. High Energy Efficiency)
Low Compressor Frequency – Fixed, i.e. does not adjust based on environmental conditions
The CLIM8ZONE unit Compressor Noise is Minimum

Spare Parts

Balboa CLIM8ZONE Heat Pump Union Nut and Socket - 1.5 inch

Additional Info

Updated BP Control System software and control panel software is required for Clim8zone.

Associated Documents

Label	Type	Size	Download
Clim8zon User & Service Manual	pdf	922.6 KB	Download
Clim8zone Installation Guide	pdf	7.5 MB	Download
Clim8zone Information Guide	pdf	2.4 MB	Download
Relay Kit For Clim8zone Heat ump	pdf	11.4 MB	Download
Clim8zone Introduction Sheet	pdf	6 MB	Download
Balboa Clim8zone Info Sheet	pdf	1.3 MB	Download
