SKU
G28

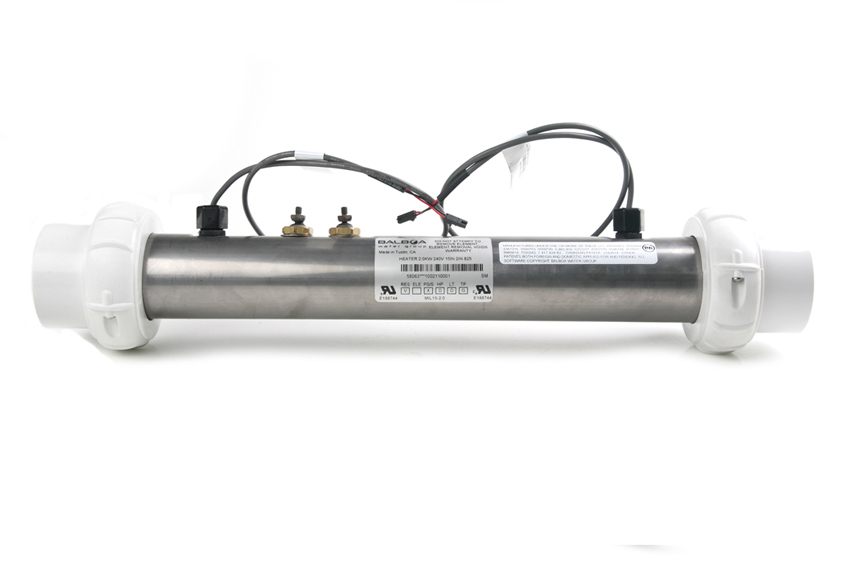

Suits Balboa M7 Heater with sensors - 2Kw & 3Kw

Suits Balboa 2Kw & 3Kw hot tub heaters (titanium element) with m7 sensors to fit the metal box system.

Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa M7 Heater with sensors - 2Kw Balboa M7 Heater with sensors - 2Kw 267 58063
£131.72 £109.77
- +
Available for
Back Order
Suits Balboa M7 Heater with sensors - 3Kw Suits Balboa M7 Heater with sensors - 3Kw 31 58061TUV
£131.72 £109.77
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

These M7 heaters can be quickly identified as they come complete with 2 x 2 x m7 sensors

The two M7 sensors (24" in length) monitor & regulate spa water flow and temperature, 2 inch gasket seals and 2-inch collars. These products can be found in related product below.

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches

Balboa ID Number: 58063 Balboa ID Number: 58061
KW: 2.0 KW: 3.0
Required flow rate: 21 GPM. Required flow rate: 20 GPM.
Amps: 8.0-8.5 Amps: 11.5-12.0
Volts: 230 Volts: 230
Hz: 50 Hz: 50
Element: Incoloy Element: Incoloy
Plumbing Connection: 2'' Plumbing Connection: 2''

2KW Version

Always match the heater number to ensure the correct specification, the 2kw can be used as a direct replacement for heaters with the following s/n 58063,58063tuv,52600,52600-01,52600-02,53346,53488,53488-01.
Spas that use this heater include Spaform SF172, Catalina, Aegean, Hydropool, Canadian Spa, Hydrospa, Duplex Value Pack, Marquis Spa, Leisurite, Super Duplex Pack, Leisure Bay, Signature Spas, Hot Tubs Direct.



3KW Version

Always match the heater number to ensure the correct specification, the 3kw can be used as a direct replacement for heaters with the following s/n 58061, 58061-01, 58213, 58061TUV, 58215,58215TUV,58143CE, 58053 also number 58060 is an old model that was supplied without sensors which were then retrofitted afterwards, the 3kw version above is the same model but comes installed with the correct sensors as standard.

Spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, 2005 LE, Elite M7, Duplex Value Pack, Super Duplex Pack, GL2000 (old metal system style), GL8000.

52396 52396 52442-04 52603 52603-01 52603-02
52442-04 52707 52707-01 52827 52827-01 52827-02
52603 52841 52841-01 52841-02 52874 52883
52603-01 52883-01 52927 52929 52971 52971-01
52603-02 53347 53489 53535 53761



Top Tip

When connecting the heater power wires to your new heater terminals hold the base of the terminal with a spanner or long nose pliers before tightening the two 10mm nuts on top, this removes the potential of splitting the terminal seal and voiding your warranty.

Icon Label Type Size Download
pdf Balboa Heater M7 Information pdf 399.4 KB Download
pdf Balboa Heater M7 Reliability pdf 451.9 KB Download
pdf Balboa Heater Element Features pdf 1.5 MB Download
