Balboa AX10 Panels

Balboa AX10 control panels - used as an inexpensive way to distribute control for specific functions away from the main control panel.
Grouped product items
Product Name SKU MPN Price Qty Stock
PANEL BALBOA AUX BLUETOOTH AUDIO PANEL BALBOA AUX BLUETOOTH AUDIO 50547 52803
£38.50 £32.08
- +
Available for
Back Order
PANEL BALBOA AX10A2 AUX PANEL BALBOA AX10A2 AUX 50549 52804
£38.50 £32.08
- +
Available for
Back Order
PANEL BALBOA AX10A3 BLWR ^^ PANEL BALBOA AX10A3 BLWR ^^ 50551 52805
£38.50 £32.08
- +
Available for
Back Order
PANEL BALBOA AX10A4 J4 PANEL BALBOA AX10A4 J4 50553 52806
£38.50 £32.08
- +
Available for
Back Order
Add to Wishlist

In-stock orders dispatched:14:00

We are The UK's Official Distributor for Balboa Water Group.

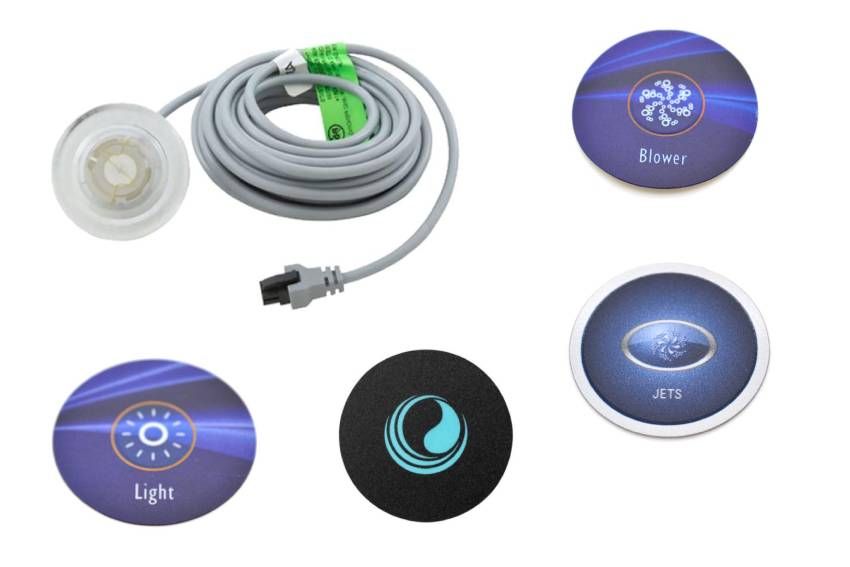

Please note the back panel is sold without its self-adhesive overlay, to be purchased separately (Overlays can be found here.) with the corresponding function (Jets, Jets 2, Blower, etc.) or as a generic version. - the other photos in the gallery are for reference. This AX10 Balboa control panel / touchpad are an inexpensive way to distribute control for specific functions away from the main control panel.

Depending on the system, more than one AX10 can be installed and mapped to operate one of several options. The connection has 6 pins (2 rows of 3)

Always check the part number of the AX10 keypad you wish to replace or ring our technical team.

Diameter: 55mm
Hole required: 32mm
Cable length: 5m

The AX 10 panel can be used with EL, VS, GL and GS systems.

This button has been known to be used on Balboa's GL2000, GL2001, GL8000M3, GL84P and certain BP (BP6013G1, BP6013G2, BP6013G3 and BP2100G1) systems.

Always check you label before purchasing as things have changed over the years

P/N without overlay

Keypad designation

Keypad

function

52803

AX10 A1

Jets 1

52804

AX10 A2

Jets 2 / Jets 4

52805

AX10 A3

Blower / Jets 3

52806

AX10 A4

Light

Button Configuration

The AX10 can come with various button configurations, this complete items we have available at present have the following configuration:

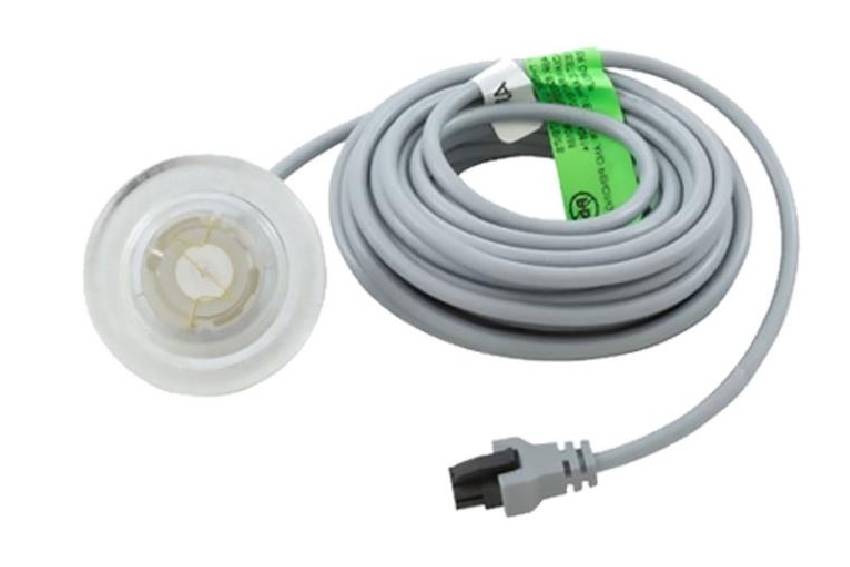

It comes with a cable and plug that connects directly to the auxiliary keypad socket on the control system.

Route the cable through conduit in order to isolate it from any foam insulation that may be applied.
