SKU
7446
55216-04

Balboa GL2001 Control Box (m3)

£859.79 £716.49
Out of stock. Available for back order.
GL2001 (m3) control box operates: •3 pump + circ + air system
55216-04
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are The UK's Official Distributor for Balboa Water Group. Part Number 55216-03 has an RRP including VAT of: £990.40

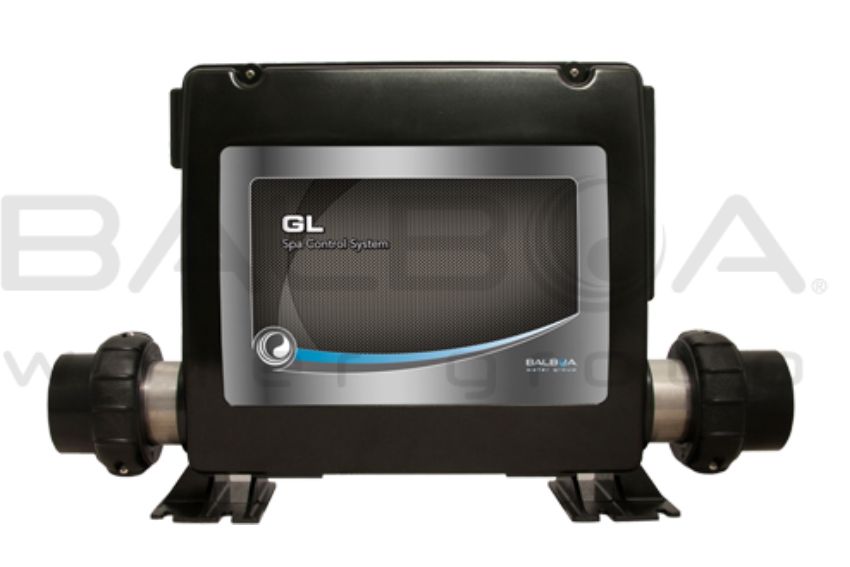

This is a Balboa GL2001 (mach 3) control system box only.

This system can only run with a variety of panels from ML900, ML700, ML550, ML551, ML400, ML260, ML240, ML200, AX10, AX20, AX30, AX40

Before you commit though, you have a decision to make at this point, either replace you GL box only with all the old technology in or pay a heavily discounted price and update with a new Balboa BP2100 + topside upgrade system (it's slightly more work as you have to fit the new topside, thats it!) but you get the unbelievable new connectivity and features that mean you are ready for the future....we highly recommend this option as the price difference is neither here or there and the advantages are huge.

Length: 500 mm (inc heater) 330 mm (box casing only)
Width: 120 mm
Height: 300 mm

  • Pump 1: Single or dual speed pump + circulation pump if required.
  • Pump 2: Single or dual speed
  • Pump 3 or Blower: Single speed
  • Extra Port: Available for a pump or blower if pump 2 single speed
  • Heater: 3KW Heater with M7 technology* (15" assembly with 2" diameter.)
  • Spa light: 10V 12W – on/off
  • Ozone: Available
  • Audio visual device power output: Available

Master Spa MS5000E 55062 or 55063.

This pack is connected to all components via amp plugs.

The Global Elite Series or GL range of spa control systems are Balboa designed using M7 temperature & water flow sensing technology. This increases the reliability, serviceability and installation ease of the system box.

Easy Service & Installation.

The GL range uses a common universal control platform, the GL family has very good feature flexibilities, incorporating M7 temperature probe technology, which eliminates the failure prone pressure switch systems and simplifies the installation process by not having to drill additional holes in the spa.

High Reliability & Flexible

All boxes have a plastic enclosure eliminating water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.

Proven Reliability

  • RoHS compliant / environmentally friendly
  • European safety approvals
  • Plastic enclosures available
  • Multi-level diagnostic capabilities
  • Easier installation and serviceability
  • M7 flow and temperature sensors - replaces failure-prone mechanical pressure/flow switch
