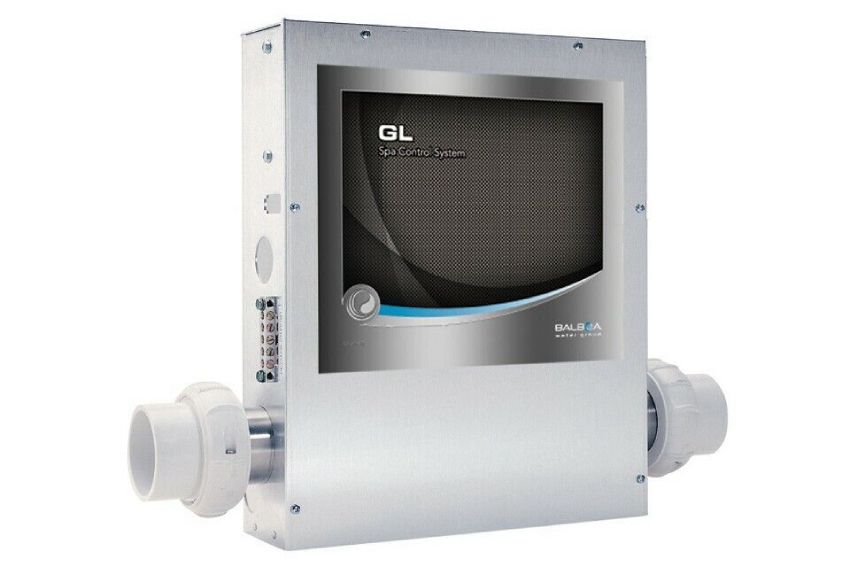

Balboa GL8000 (m3) Control Box

£1,047.61 £873.01
Out of stock. Available for back order.
GL8000 control box operates a number of differing options - please see inside for full details
53859-04
- +
Add to Wishlist

In-stock orders dispatched:14:00

This is a Balboa GL8000 (mach 3) control system box only. This system can only run with a variety of panels from ML900, ML700, ML550, ML551, ML400, ML260, ML240, ML200, AX10, AX20, AX30, AX40 range

We are The UK's Official Distributor for Balboa Water Group. Part Number 53859-04 has an RRP including VAT of: £1314.05



This pack is connected to all components via amp plugs.

The Global Elite Series or GL range of spa control systems are Balboa designed using M7 temperature & water flow sensing technology. This increases the reliability, serviceability and installation ease of the system box.

Easy Service & Installation
The GL range uses a common universal control platform, the GL family has very good feature flexibilities, incorporating M7 temperature probe technology, which eliminates the failure prone pressure switch systems and simplifies the installation process by not having to drill additional holes in the spa.

High Reliability & Flexible
All boxes have a plastic enclosure eliminating water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.

  • RoHS compliant / environmentally friendly
  • European safety approvals
  • Plastic enclosures available
  • Multi-level diagnostic capabilities
  • Easier installation and serviceability
  • M7 flow and temperature sensors - replaces failure-prone mechanical pressure/flow switch

Pump 1: 2 speed (one speed with circ / circ pump, 24hr operation with 1.5 degree centigrade safety shut off)
Pump 2: 2 speed (one speed option)
Pump 3: 2 speed (one speed option)
Pump 4: 1 speed (with restrictions)
Blower: One speed
Circ pump: One speed
Light: 10v/230v
Heater: 3KW Heater with M7 technology* (15" assembly with 2" diameter.)
Ozone: Available
Audio visual device power output: Available

This box is a direct relacement for Master Spas boc 53514 MS800E box and can be used with the existing topside shown in the photo gallery above. The topside fits into any port between J70-J73 and if you have any problems then always check that the following connections are individually linked J95 - J32 / J32 - J26 / J28 - J57, always check the transformer is in place also.
