SKU
G10318

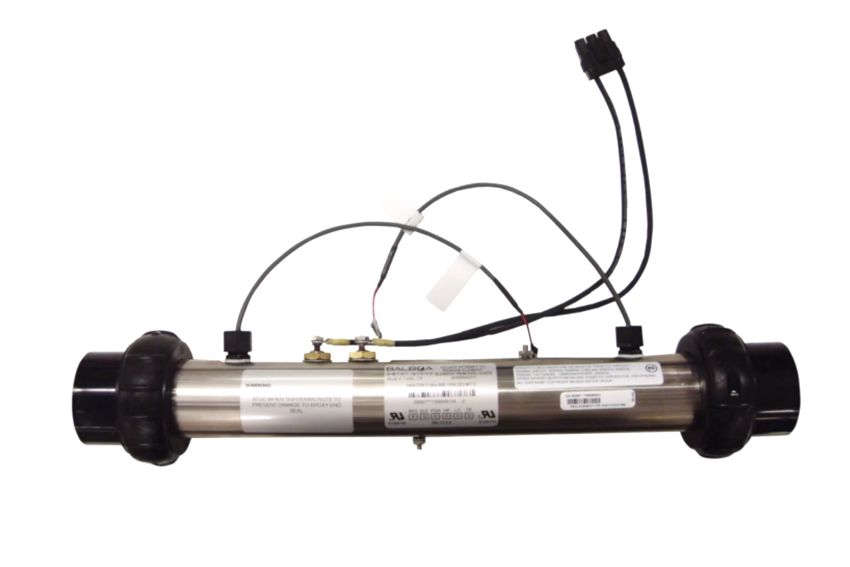

Balboa Heater M7 Plug n Click (BP Series)

Balboa Heater - M7 (Plug N' Click) for BP spa packs
Grouped product items
Product Name SKU MPN Price Qty Stock
Balboa Heater M7 Plug n Click (2kw) Balboa Heater M7 Plug n Click (2kw) 44967 58115R01
£132.58 £110.48
- +
Available for
Back Order
Balboa Heater M7 Plug n Click (3kw) Balboa Heater M7 Plug n Click (3kw) 43024 58107R01
£102.73 £85.61
- +
16 In stock
Add to Wishlist

In-stock orders dispatched:14:00

We are the UK's primary Stockist of Balboa equipment, this is a Plug n' Click Heater assembly, it is the first of its type with a plastic purpose fitted plug that connects directly to the PCB to avoid damage to heater terminals and a very quick replacement time, no more heater straps, screws, wrenches, or copper straps.

They come complete with two M7 sensors (24" in length) to monitor & regulate spa water flow and temperature, 2 inch gasket seals and 2 inch collars.

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches

Held in with two fixing studs, one at the top and one underneath. 2 inch white plastic female sockets to connect to plumbing.

Balboa ID Number: 58115R01 Balboa ID Number: 58107R01
KW: 2.0 KW: 3.0
Required flow rate: 21 GPM. Required flow rate: 21 GPM.
Amps: 8.0-8.5 Amps: 11.5-12.0
Volts: 230 Volts: 230
Hz: 50 Hz: 50
Element: Incoloy Element: Incoloy
Plumbing Connection: 2'' Plumbing Connection: 2''

New Systems

Direct replacement for Balboa BP500/501, BP600/601, and BP2100 systems

Older Systems

These heaters are the replacement for the now-discontinued Balboa M7 Heater with Studs - 2Kw & 3Kw (GS-GL) used in older Balboa systems.

You will need to use the PCB Female Receiver Cable to fit to an older Balboa system. For installation instructions, please see the associated documents.

Always match the heater number to ensure the correct specification, the 2kw can be used with GS-GL packs such as GS500, 500Z, 501, 501Z systems, spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, Wellis P/N ACM0552

58115 58115-01 58145 55091 55093-01 55091-01 55093
55165-02 55165-03 55183-01 55183-02 55093-02 55248 55248-01
55248-02 55248-03 55425 55881 55165-01 55881-01 55883
56240 56304 58122 58395

3KW Version

Always match the heater number to ensure the correct specification, the 3kw can be used with GS500, 500Z, 501, 501Z (3.0KW only), 501SZ, 510, 510S, 510Z, 510SZ, 511SZ, 523DZ, GL2000 mach 3, GL2001 mach 3 systems, it is used in spa including Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct. Now readily used in the BP packs

58107 58118 58141 53340 53340-01 53340-02 53340-03
53340HC1 53355 53355-01 53355-02 53355-03 53355-04 53340-04
53355-HC 53355HC1 53529 53529-01 53529-02 53529-03 53340-HC
53555 53555-01 53555-02 53641-01 53641-02 53641-03 59008-02
53687 53687-01 53687-02 53891 53891-01 53893 59008-01
53893-01 53936 53936-01 53955 53955-01 53955-02 59008
53955-03 53996-01 54204 54204-01 54204-02 54204-03 56331
54258 54295 54330 54330-01 54330-02 54406-01 56289-01
54406-02 54406-03 54406-04 54481 54481-01 54481-02 56289
54481-03 54509 54509-01 54509-HC 54509HC1 54511 54515-02
54517 54517-01 54517-02 54517-03 54517-HC 54517HC1 54515
54517HC2 54517HC3 54519 54519-01 54519-02 54521 54515-01
54521-01 54521-02 54586 54648 54648-01 54650 54511HC1
54650-01 54700 54751 54751-01 54752 54752-01 54511-HC
54763 54763-01 54848 55048 55048-01 55048-02 54511-01
55048-03 55048-04 55058 55060 55062 55062-01 55076
55078 55078-01 55082 55082-01 55089 55106 55076-01
55106-01 55127 55165 55183 55186 55186-01 55074-01
55216 55216-01 55216-02 55216-03 55250 55250-01 55074
55292 55399 55401 55401-01 55403 55403-01 55070
55406 55408 55410 55415 55415-01 55421 55062-02
55421-01 55423 55423-01 55446 55454 55461 55556
55556-01 55572 55648 55650 55652 55660 55498
55660-01 55670 55845 55845-01 55874 55892 55485
55896 55898 55907 55942 55942-01 56010 55474-01
56010-01 56015 56078 56078-01 56084 56086 55474
56104 56104-01 56123 56123-01 56133 56140 55461-01
56158 56170 56172 56250 56251 56281
Icon Label Type Size Download
pdf Install plug and play on BP series systems pdf 1.5 MB Download
pdf Install plug and play on older systems pdf 1.6 MB Download
