SKU
G42

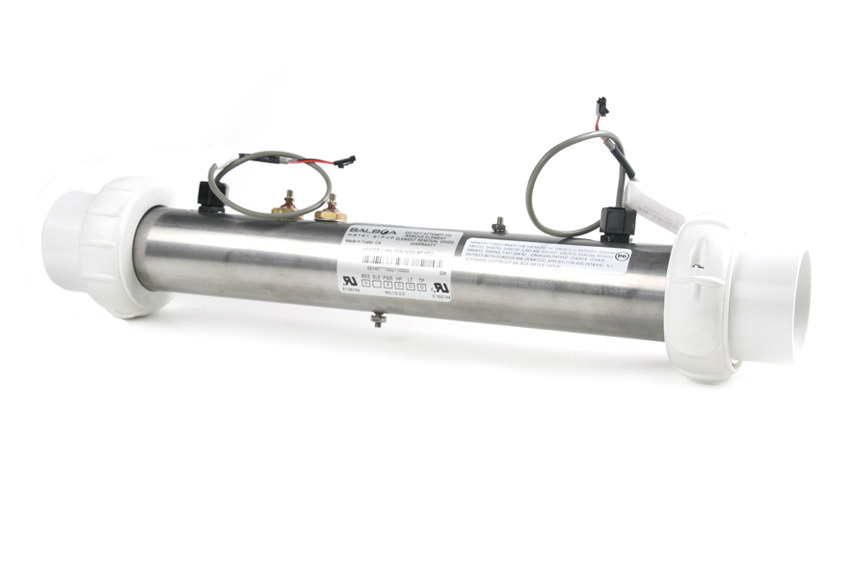

Suits Balboa M7 Heater with Studs - 2Kw & 3Kw (GS-GL)

Grouped product items
Product Name SKU MPN Price Qty Stock
Suits Balboa M7 Heater with Studs (GS-GL) - 2Kw Suits Balboa M7 Heater with Studs (GS-GL) - 2Kw 51 58115
£135.98 £113.32
- +
3 In stock
Suits Balboa M7 Heater with Studs - 3Kw Suits Balboa M7 Heater with Studs - 3Kw 268 58107
£135.98 £113.32
- +
15 In stock
Add to Wishlist

In-stock orders dispatched:14:00

These heaters distinguish themselves as they are held in with two fixing studs, one at the top and one underneath, they are specific to Plastic Balboa Packs.

They come complete with two M7 sensors (12" in length) to monitor & regulate spa water flow and temperature, 2 inch gasket seals and 2 inch collars .

Length: 15 inches
Diameter: 2 inches
Distance Between terminals: 1.25 inches
Complete length (inc. unions): 19.5 inches

Balboa ID Number: 58145 Balboa ID Number: 58118
KW: 2.0 KW: 3.0
Required flow rate: 21 GPM. Required flow rate: 21 GPM.
Amps: 8.0-8.5 Amps: 11.5-12.0
Volts: 230 Volts: 230
Hz: 50 Hz: 50
Element: Incoloy Element: Incoloy
Plumbing Connection: 2'' Plumbing Connection: 2''

2KW Version

Always match the heater number to ensure the correct specification, the 2kw can be used with GS-GL packs such as GS500, 500Z, 501, 501Z systems, spas that use this heater include Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct, Wellis P/N ACM0552



58115 58115-01 58145 55091 55091-01 55093 55093-01 55093-02 55165-01
55165-02 55165-03 55183-01 55183-02 55248 55248-01
55248-02 55248-03 55425 55881 55881-01 55883
56240 56304 58122 58395



3KW Version

Always match the heater number to ensure the correct specification, the 3kw can be used with GS500, 500Z, 501, 501Z (3.0KW only), 501SZ, 510, 510S, 510Z, 510SZ, 511SZ, 523DZ, GL2000 mach 3, GL2001 mach 3 systems, it is used in spa including Spaform, Hydrospa, Canadian, Aegean, Catalina, Hydropool, , Marquis Spa, , Leisurite, Leisure Bay, Signature Spas, Hot Tubs Direct. Now readily used in the BP packs

58107 58118 58141 53340 53340-01 53340-02 53340-03 53340-04 53340-HC
53340HC1 53355 53355-01 53355-02 53355-03 53355-04
53355-HC 53355HC1 53529 53529-01 53529-02 53529-03
53555 53555-01 53555-02 53641-01 53641-02 53641-03
53687 53687-01 53687-02 53891 53891-01 53893
53893-01 53936 53936-01 53955 53955-01 53955-02
53955-03 53996-01 54204 54204-01 54204-02 54204-03
54258 54295 54330 54330-01 54330-02 54406-01
54406-02 54406-03 54406-04 54481 54481-01 54481-02
54481-03 54509 54509-01 54509-HC 54509HC1 54511
54511-01 54511-HC 54511HC1 54515 54515-01 54515-02
54517 54517-01 54517-02 54517-03 54517-HC 54517HC1
54517HC2 54517HC3 54519 54519-01 54519-02 54521
54521-01 54521-02 54586 54648 54648-01 54650
54650-01 54700 54751 54751-01 54752 54752-01
54763 54763-01 54848 55048 55048-01 55048-02
55048-03 55048-04 55058 55060 55062 55062-01
55062-02 55070 55074 55074-01 55076 55076-01
55078 55078-01 55082 55082-01 55089 55106
55106-01 55127 55165 55183 55186 55186-01
55216 55216-01 55216-02 55216-03 55250 55250-01
55292 55399 55401 55401-01 55403 55403-01
55406 55408 55410 55415 55415-01 55421
55421-01 55423 55423-01 55446 55454 55461
55461-01 55474 55474-01 55485 55498 55556
55556-01 55572 55648 55650 55652 55660
55660-01 55670 55845 55845-01 55874 55892
55896 55898 55907 55942 55942-01 56010
56010-01 56015 56078 56078-01 56084 56086
56104 56104-01 56123 56123-01 56133 56140
56158 56170 56172 56250 56251 56281
56289 56289-01 56331 59008 59008-01 59008-02
Icon Label Type Size Download
pdf Balboa Heater Element Features pdf 1.5 MB Download
pdf Balboa Heater M7 Reliability pdf 451.9 KB Download
pdf Balboa Heater M7 Information pdf 399.4 KB Download
pdf Suits Balboa M7 Heater with Studs - CE Declaration of Conformity pdf 143 KB Download
