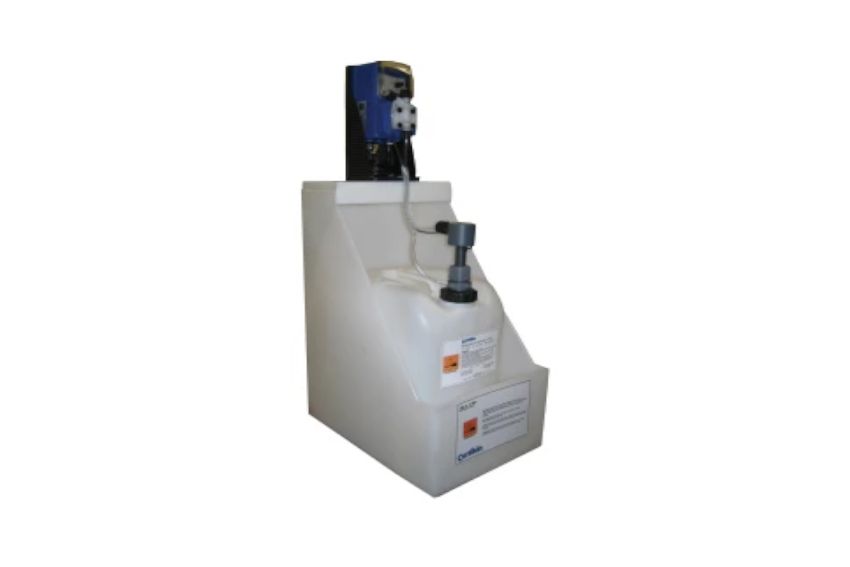

Certikin CertiFloc Dosing Set

A complete FLOC or PAC dosing solution. Ideally suited for chemicals supplied in 25L carboys reducing chemical handling by the end user.

FLOC or Flocculant, is a liquid that is metered into a pool improving the filter efficiency and, in turn, the water quality. FLOC works by bonding together small particles in the water making them much larger and easier to trap in the filtration system.

Calculating the addition rate:

• Minimum dose rate (gr/24hrs) = Filter flow rate (m3/h) x 5.8*
• E.g. 100m3/h flow = 100 x 5.8 = 580hr/24hrs

*Assumes the following:
Minimum addition rate of 0.3ml/3m/hr
SG of 1.2
CDE VCLG pumps are rated 300 or 3000 gr/24hrs max (twin scale)

Installation Tips:

VCLG Floc dosing pumps gr/24hr + stand

Carboy suction lance with level switch (4-6mm connections)

Carboy bund with support plinth

For Twin Floc set, 2 x VCLG pumps and 2 x pump mounting brackets are required.

When installing a Certikin FLOC set we would generally recommend that it is:

• As far away as possible from other dosing equipment
• Away from all sources of chlorine to reduce the risk of chlorine gas generation
• Injected as far upstream as possible Also:
• Acid/chlorine injection points should be located POST filter

Note: FLOC cannot be used with DE (Diatomaceous Earth) or high rate sand filters

Individual components for the Floc Dosing set available here
