Certikin MK2 Oil Fired Heaters

Controls

A state of the art electronic control panel created especially for oil pool heating and central heating applications which is easy to use and includes an accurate display of pool temperature. The diagnostic control panel includes a pressure gauge and LED lights to indicate everything from the boiler being turned on to burner lockout.

Four accurate thermostats control the pool water temperature, the boiler temperature, the safety high limit and the automatic by-pass (not fixed). Condensation inside the water jacket is minimised to maximise the operating life of the boiler.

Plumbing

The heater comes complete, pre-plumbed and pressure tested resulting in ease of installation and peace of mind for the customer. A high efficiency counterflow water to water heat exchanger is used for pool water heating. System inhibitor is supplied with every heater.

Connections

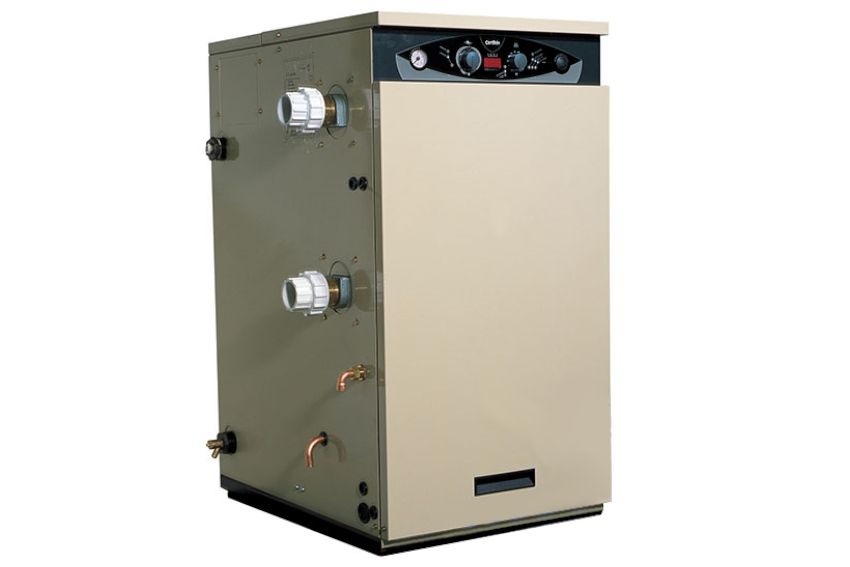

All connections to the heater are made externally on the left hand side of the cabinet.

The connections are as follows:

• Pool water in & out - 11/2” plastic pipe.
• Oil - 10mm compression fitting with filter.
• Sealed system pressure relief valve.
• Sealed system fill / drain point complete with filling loop and valves - 15mm.

• The most comprehensive oil fired pool heater on the market
• Approved to latest OFTEC and EC standards
• UK based technical expertise
• Pre-plumbed for ease of installation
• Optional left, right or rear horizontal balanced flue kit available for all models
• Outdoor terminals are IP44 rated
• Vertical balanced flue kit available
• Quick fit wire option - see CCP02 pool controller
• Pool temperature display
• Even higher efficiency & output
• Suitable for use with salt water pools

Certikin Oil Heaters are supplied to accept single wall flue. An adaptor will need to be purchased elsewhere if twin flue is required.
