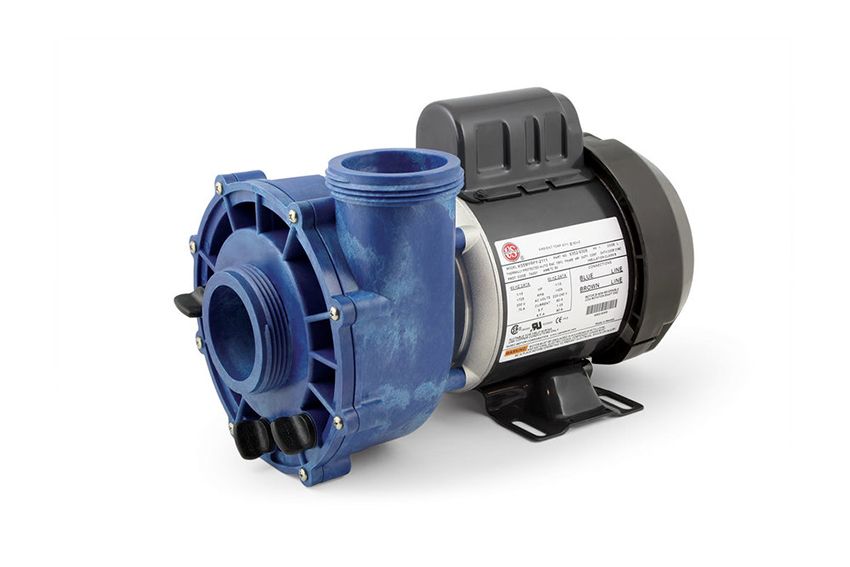

Circmaster CMXP Circulation Pump

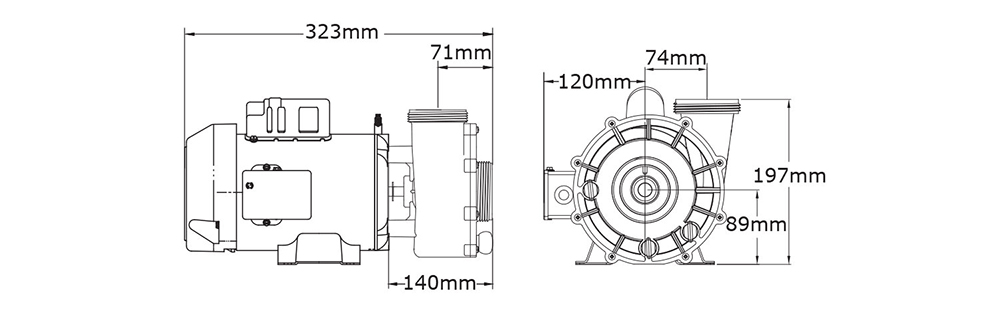

New design now has a larger fan case on the rear of the motor. Please check dimensions to ensure it will fit within the space under your spa.

The Circmaster CMXP has an Aquaflo Circmaster motor with an Aquaflo wetend Volute (92770705 / impellor 91694300).

It has a larger inlet and outlet than the standard Circmaster CMHP to take 2" imperial fittings.

Aqua-Flo new Circ-Master pump takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump on the spa industry.

Higher GPM allows the Circ-Master to operate a high-flow heating system resulting in increased heating efficiency and up to four times the filtration. The Circ-Master also operates standard low-flow heating systems with increased reliability due to:

• 48 frame, continuous-duty construction with front and rear, permanently lubricated ball bearings for extended motor life. 1 speed Emerson motor.
• Carbon-graphite self-lubricating seal designed for continuous duty operation.
• 2 inlet and outlet.
• True, continuous rated horsepower of 1/15.
• Quiet running.

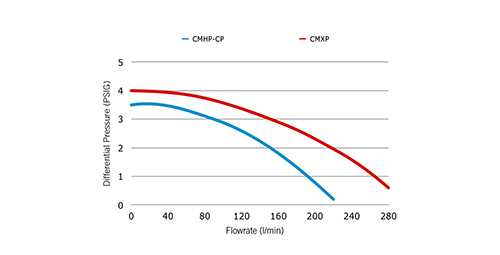

Performance Curves
