Gecko AeWare IN.XE Control Box

£516.19 £430.16
18 In stock
This is a generic unlicensed box by Gecko - please see inside for topside and system compatability.
0602-221047
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

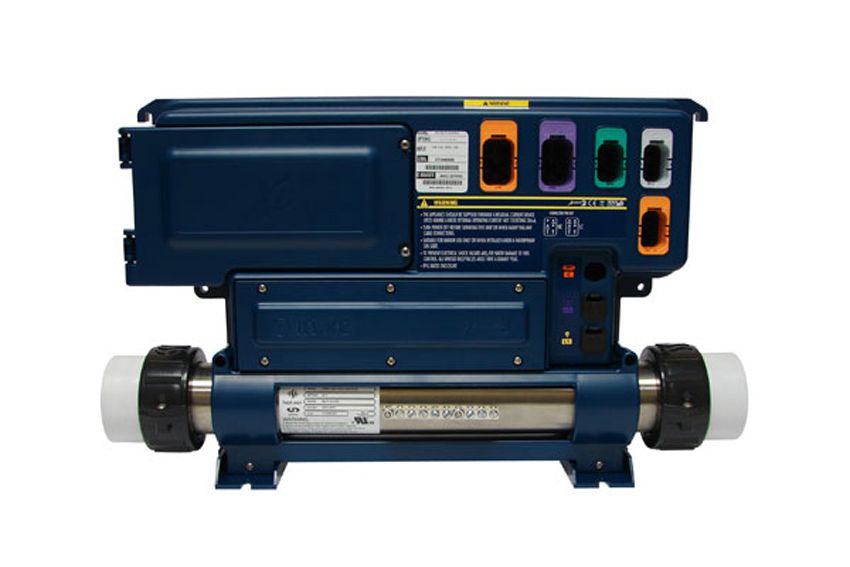

This is a Gecko AeWare IN.XE Control Box. It is the most advanced option for entry-lever / mid-range spas and offers a variety of technical features, popular configurations and is ideal for single and dual pump systems, blowers, circulation pumps, mood lights and a heat.wav heater.

It also features a communication link connector, making it idea to control add on accessories. It has a sturdy, compact and thin design and can be installed either on the floor using a securing bracket or wall mounted.

IPX5 Rated Waterproof Design
Fast Installation - Preloaded Configurations
Easy Electrical Installation with Large Terminal Block
Supports 1 and 2 Phase Input Power
Programmable Filter Cycles
Self Diagnostic
Solid State Dry Fire Protected
Overheat and Freeze Protection
Supports High End / Auxillary Topside Panels
Comes with IN.Stik with In.Link Connector
Supports In.Touch 2 Wireless Remote

Length: 490mm
Height: 298mm
Depth: 136mm
Weight: 4.76kg (10.5 lb)

Pump 1: 1 or 2 speed (plus circ pump, if required)
Pump 2: 1 speed
Blower: 1 (optional)
Heater: 3KW Heater
Spa light: Available
Ozone: Available

Volts: 230
Hz: 50
Fittings: 2 inch

XE system

Replaces previous model numbers: 0602-221002, 0602-221022,0602221017,0602-221072

0602-221022 is previously known as the AeWare in.xe pack with a 3kW heater, produced in the USA. This model number replaces it but with a 3kW heater.

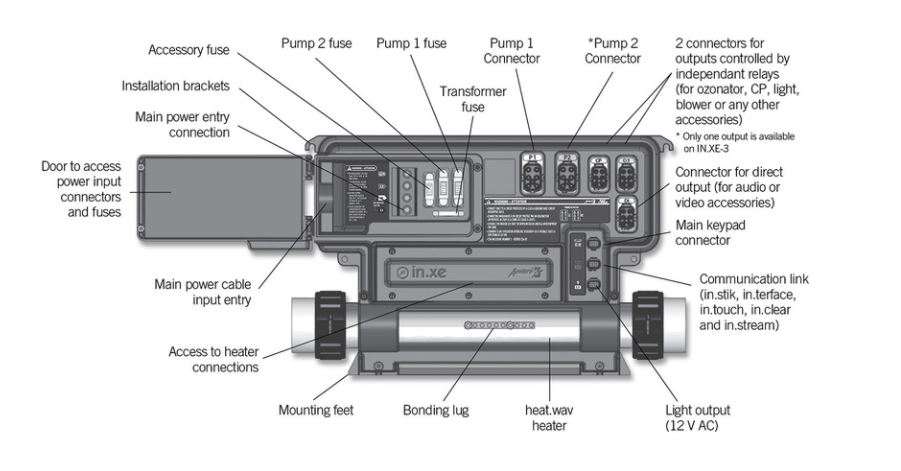

The in.xe with integrated heat.wav & has 5 outputs with colored connectors for in.link sockets that can manage:

  • A single or dual-speed pump 1
  • A single-speed 2 pump
  • 2 connectors for outputs controlled by independent relays: blower + ozonator OR blower + circulation pump OR circulation pump + ozonator (neutral outputs)
  • 1 connector for direct output, e.g. audio or video accessories

Before purchasing ensure that it is compatible with the configuration present on your spa.

To check, open the "Quick start" document, if you cannot find the configuration of your spa among the 13 proposed, we recommend that you switch to the Y series. It will be necessary to replace the existing sockets with 4 -pin AMP sockets .

If you have any questions, do not hesitate our technical team

If using both circulation pump and ozone system, it must be in the same voltage and will need and Amp splitter harness.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable

Icon Label Type Size Download
pdf Gecko IN.XE Techbook pdf 6 MB Download
pdf Aftermarket help pdf 9.8 MB Download
pdf Configuration of IN Ex pack pdf 116 KB Download
pdf Y series and in.xe Start up guide pdf 1.2 MB Download
pdf Y series and in.xe Troubleshooting guid pdf 4.2 MB Download
pdf XE Start Up Guide pdf 746.8 KB Download
