SKU
45731
0610-221108-634

Gecko IN.YE 3 Control Box

£506.23 £421.86
Out of stock. Available for back order.
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

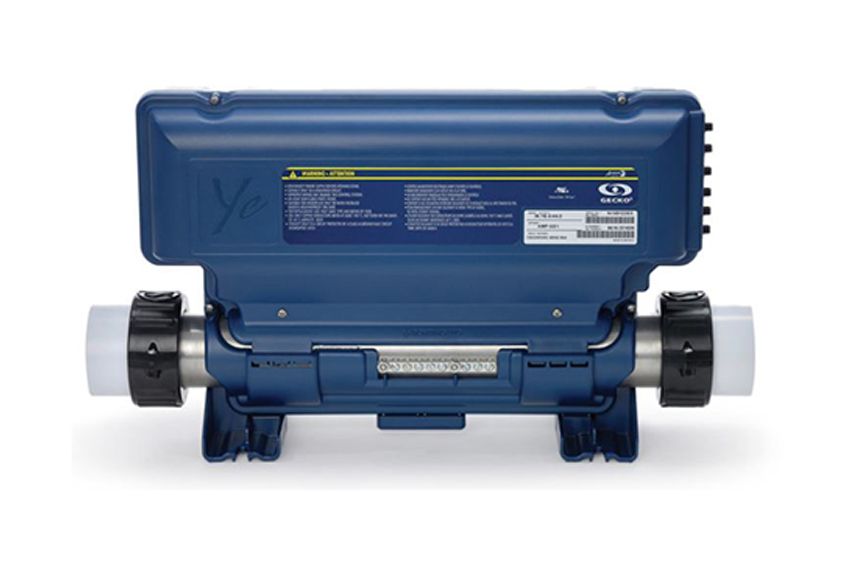

This is a Gecko IN.YE-3 Control Box, a perfect choice for entry level - the little brother of the in.ye-5 , having the same characteristics as its bigger brother based around reliability and simplicity. It is equipped with a 3kW heater with the in-flo system.

For ease of understanding, this pack will take upto 3 pumps (dependant on speeds) and a blower, we recommend picking your set up from the quick start card in associated documents labelled 634 (the most current version) - any problems, please ring our technical team who will be happy to help

Easily installed and connected to pumps and accessories. It delivers optimal performance and has the ability to open up to the addition of add-ons such as  IN.Touch wireless control from mobiles, audio streaming and water sanitation, increasing your spa experience.

In.Temp Heat Pumps

The IN.YE V3 is compatible with IN.TEMP heat pumps with the use of an RS485 Communication Extension board (sold separately).

  • Each pack supports a keypad, 3kW heater, a 12v AC light and 3 configurable relays.
  • Solid-state water flow detection: No pressure switch to adjust
  • IPX5 rated waterproof design
  • Preloaded configuration allows fast and easy installation
  • in.touch WI-FI module compatible
  • Connector: AMP, Quick Connect, JJM adaptor available
  • Supports 1, 2 and 3 phase input power
  • Standard 3kW, 2" x 15" flow thru heater
  • Temperature probe is built into the heater
  • Freeze & Overheat protection
  • Self-Diagnostic
  • Programmable filter cycles
  • Corrosion-free enclosure

See Gallery

  • Heating: 3kW at 230-240V.
  • Heater Flow Rate: Minimum of 18 GPM (68.1 LPM) is required.
  • Operates in temperatures from 0°C to 58°C with up to 85% non-condensing humidity.
  • Max Load: 48A (Single-Phase) / 20A (Dual-Phase) / 16A (3-Phase).
  • Compatible with North American and European electrical systems.
  • Supports 120/240V heaters with wattages up to 5.5kW.
  • IPx5 waterproofing.
  • Heating: 3kW at 230-240V.

For compatible topside panels see the photo gallery.

If using both circulation pump and ozone system, it must be in the same voltage and will need and Amp splitter harness.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable

Icon Label Type Size Download
pdf Yseries Techbook pdf 4.3 MB Download
pdf Yseries Brochure pdf 2.9 MB Download
pdf Quick Start Card - Software #382 pdf 3.4 MB Download
pdf Quick Start Card - Software #634 pdf 673.5 KB Download
pdf Y series and in.xe Troubleshooting guid pdf 4.2 MB Download
pdf Y series and in.xe Start up guide pdf 1.2 MB Download
