Gecko IN.YE 5 / in.k8-3OP System Bundle

£528.25 £440.21

Availability: Out of stock. Available for back order.

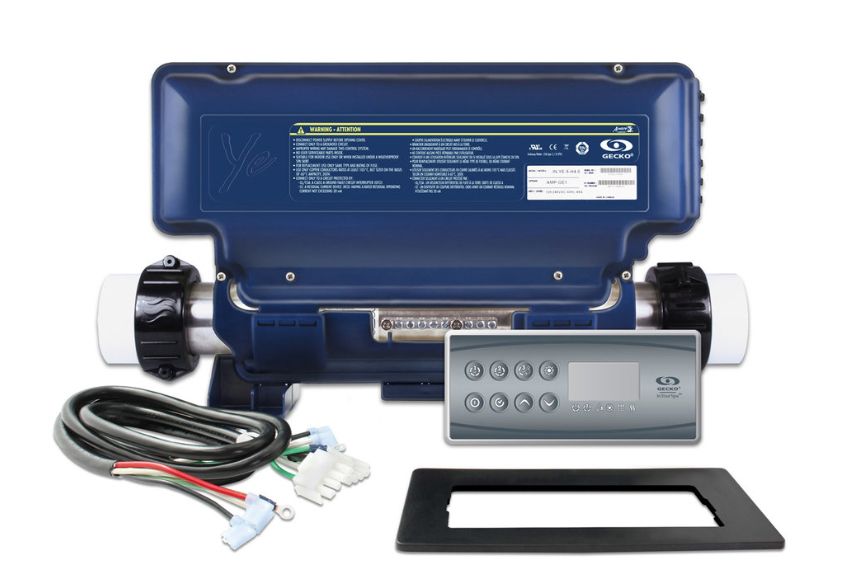

The Gecko IN.YE-5 bundle includes the k8-3OP keypad, adaptation plate, cables and light.

MPN: 0610-300009

In-stock orders dispatched:14:00

Free Delivery (UK Mainland)

Why choose us?

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

This is a Gecko IN.YE-5 Control Box, a perfect choice for entry level - mid range spas with 1 pump (1 or 2 speeds), 2 pump (1 or 2 speeds), Blower, Circulation pump or Ozone System. It supports 5 configurable outputs, keypad, heater, 12V light (Dual speed pumps use 2 outputs) and can easily be installed and connected to pumps and accessories. It delivers optimal performance and has the ability to open up to the addition of add-ons such as wireless control from mobiles, audio streaming and water sanitation, increasing your spa experience.

Features

IPX5 rated waterproof
Solid state water flow detection
Programmable filter cycles
Self diagnostic
Aeware keypad compatible
Supports 1,2,3 phase input power
In.Touch Wireless remote compatible
Protection against overheating
Easy installation
Quick Connect, AMP connections available
Integrated temperature probe

Dimensions

Dimensions: (W x H x D) 19.58" x 10.75" x 4.98" (497 x 273 x 126 mm)
Weight: 9.7 lb (4.4 kg)

Specifications

Ideal for entry level to mid-range spas, the in.ye-5 supports 5 configurable outputs:

3kW heater
Standard 12V light
Pump 1 with 1 or 2 speeds
Pump 2 with 1 or 2 speed
Blower or Circulation Pump or Ozonator

Y series Product Comparison

Features	in.yj-2 (2 outputs)	in.ye-5 (5 outputs)	in.yt-7 (7 outputs)
Model & PN	0612-221031-287	0610-221045-338	0611-221027-349
Receptacle type	Quick Connect only	AMP or Quick Connect	AMP or Quick Connect

Accessories	Up to 3 out of the list. Dual speed pumps use 2 outputs	Up to 5 out of the list. Dual speed pumps use 2 outputs	Up to 7 out of the list. Dual speed pumps use 2 outputs

Direct outlet	y	y	y
Light (12w@12v)	y	y	y

4kw heater	available	available	standard
3kw heater	standard	standard	available
2kw heater	available	available	available
1kw heater	available	available	available

in.k1000 / in.k800 / in.k500	y	y	y
in.k600 graphic			y
in.k600 ST 5 OP	y	y	y
in.k450	y	y	y
in.k19 / in.k35 / in.k45	y	y	y
in.k300	y	y	y
in.k200	y	y	y
in.k120 aux	y	y	y
in.k100 aux

Includes

Spa pack: in.ye-5 (0610-221045-338)
Keypad: in.k8-3OP (0607-007067)
Cables: 2 x dual spd AMP cable (95100519) & 2 x single spd AMP cable (95100517) & Light (9920-400489 - 9920-401507)
Adaptor plate (9917-102122)

Additional Info

If using both circulation pump and ozone system, it must be in the same voltage and will need and Amp splitter harness.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable
