SKU
45206
0611-221104-691

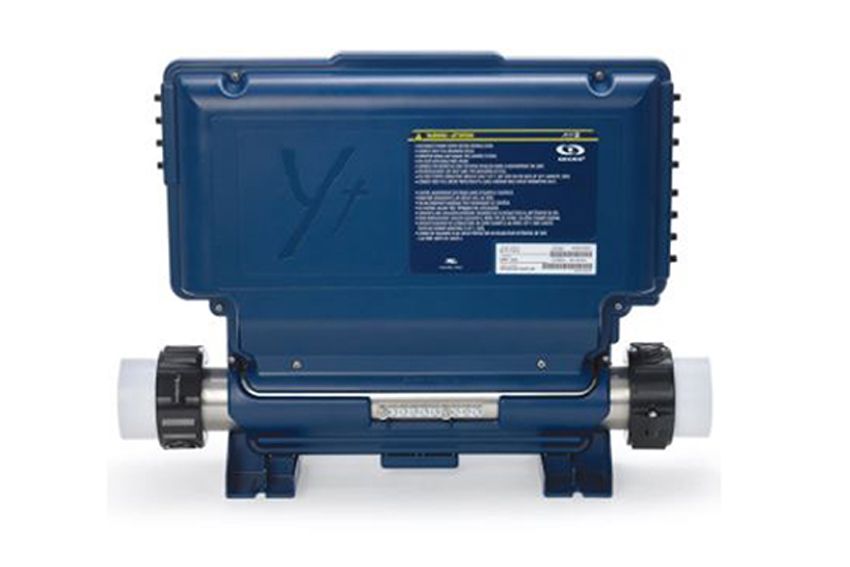

Gecko IN.YT-8 Control Box with RS485

£657.78 £548.15
1 In stock
- +
Add to Wishlist

In-stock orders dispatched:14:00

We are the Master Distributor for Gecko in the UK and as such all products are warrantied.

The Gecko IN.YT-8 Control Box is the ideal choice when looking for total flexibility, total compatibility, total satisfaction, the top of the line in.yt has all it takes to easily power larger size spas.

All spa configurations are supported including a variety of add-ons. It supports 8 configurable outputs (equipped with 8 relays, hence the number 8 in its YT-8).

The in.yt-8 can manage up to 8 pumps and/or blowers

Knowing that a two-speed pump needs 2 relays. 29 different configurations are possible, up to:

  • 3 dual-speed pumps, or 1 dual-speed pump and 4 single-speed pumps, or 5 single-speed pumps
  • a circulation pump
  • an in.temp heat pump
  • a blower
  • an ozonator
  • a lighting system
  • an audio system

The control box scomes with a 3kW heater and standard 12V light. It is perfect for mid-range to high-end spas with up to multiple pumps, a blower, circulation pump and ozone system.

This high quality, long lasting control box takes into account future compatibility to add-ons, accessories and is constructed with an IPX5 waterproof design and corrosion free enclosure. Quick and easy to install with pre-loaded configuration and compatible with Gecko In.Touch 2 WIFI Kit

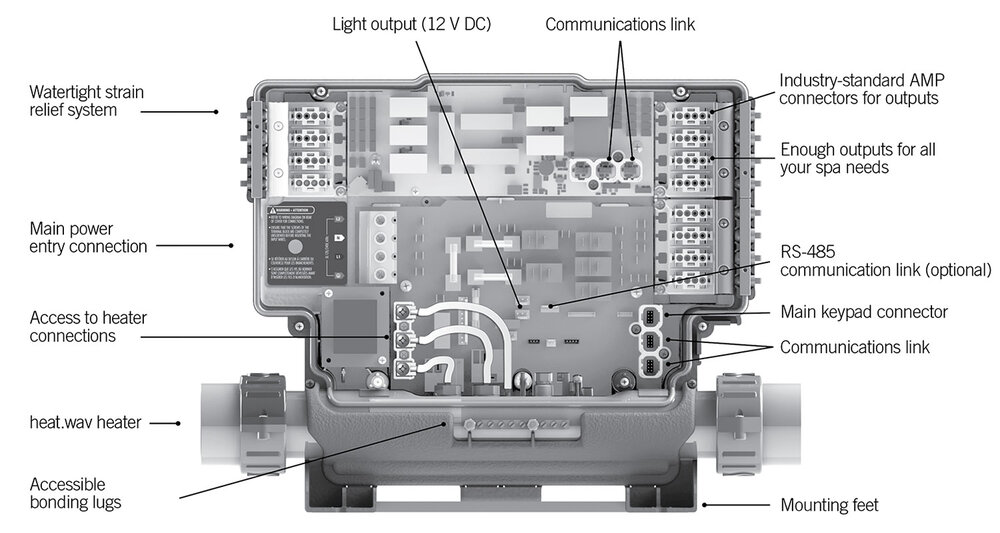

  • Supports keypads, heater, a 12 V AC light, and 8 configurable relays
  • K25 relay installed
  • Solid-state water flow detection: No pressure switch to adjust
  • IPX5 rated waterproof design
  • Preloaded configuration allows fast and easy installation
  • in.touch Wi-Fi module compatible
  • Connector: AMP, Quick Connect, JJM adaptor available
  • Supports 1, 2 and 3 phase input power
  • Standard 3 kW, 2” x 15” flow thru heater (minimum of 75 l/min required)
  • Aeware keypad compatible
  • Temperature probe is built into the heater
  • Overheat protections
  • Self-Diagnostic
  • Programmable filter cycles
  • Corrosion-free enclosure
  • With RS485 on-board - compatible with Gecko IN.TEMP Heat Pumps
  • Swim mode software pre-installed





This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate warranty.

We advise to use this control box only for like for like replacement only

Please ensure this is the correct box and this item is non refundable

Icon Label Type Size Download
pdf Yseries Techbook pdf 4.3 MB Download
pdf Yseries Brochure pdf 2.9 MB Download
pdf Gecko IN-YT-8 Quick Start Card #691 pdf 1.7 MB Download
pdf Y series and in.xe Troubleshooting guid pdf 4.2 MB Download
pdf Y series and in.xe Start up guide pdf 1.2 MB Download
