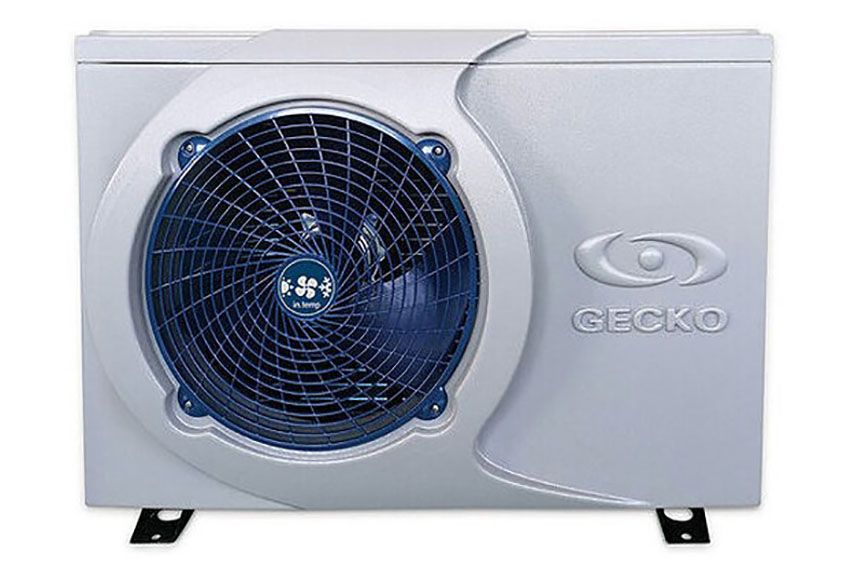

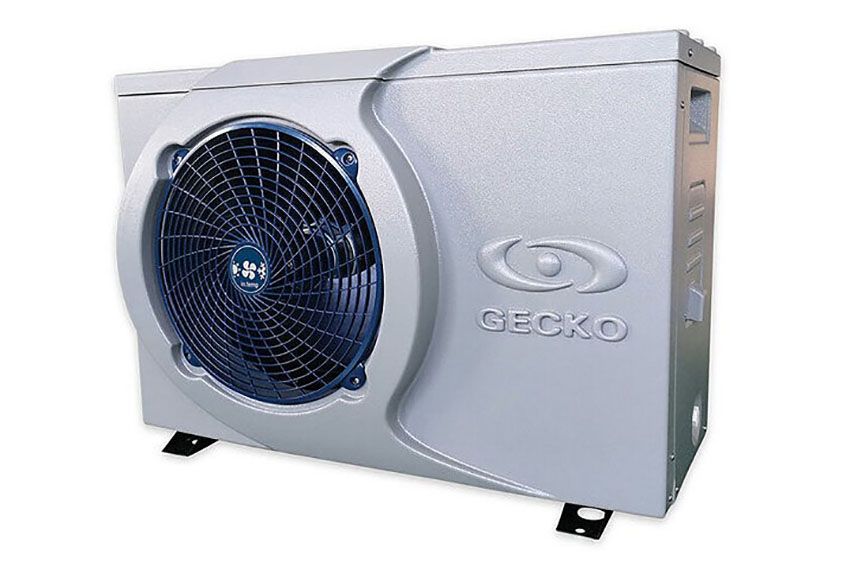

Gecko IN.TEMP Heat Pumps

Here comes Gecko’s new heat pump solution. Using Gecko's IN.TEMP has never been so easy! Simply connect it to a Y series control that supports it and you’re good to go! Automatic detection, smart power management and no additional power circuit required, the IN.TEMP powers directly from the spa control.

Air sourced heat pumps will allow you to save up to 75% energy consumption in comparison with eletric elements. The icing on the cake: Gecko’s IN.TEMP also uses an ecofriendly refrigerant.

With IN.TEMP, you can choose one of its six modes of operation that suits you the best, depending on your climate. Smart modes including: Eco Heat, Smart Heat, Eco Auto, Smart Auto, Cool and Electric, let you taking full advantage of your IN.TEMP to optimize your savings.

Please see the photo gallery for full dimensional drawing.
Weight: 5kw: 45kg / 7.5kw: 48kg

• Input supply: 220V ~ 240V, 50Hz
• Power input (max): 5kw: 1.29kw / 7.5kw: 1.91kw
• Rated current: 5kw: 3.9A / 7.5KW: 5.49a
• Max current: 5kw: 6.07A / 7.5kw: 8.67A
• Communication supply: 10-12 VDC, 80mA
• Operating temperature: -5 °C (23 °F) to 43 °C (109 °F)
• Water resistance: IPX4
• Compressor: Rotary (GMCC)
• Pressure: Min: 1,5 MPa (218 psi) Max: 4,15 MPa (609 psi)
• Refrigerant: 5kw: R32/650g (22,9oz) / 7.5kw: R32/800g (28,2oz)
• Best efficiency flow rate: 5kw: 2,27 M³/h (10 GPM)* / 7.5kw: 3,41 M³/h (15 GPM)*
• Flow detector: Flow switch
• Noise at 1 m: 5kw: 51,5dB(A) 62dB(A) / 7.5kw: 56,5dB(A)

IN.TEMP only works with Gecko’s IN.YE and IN.YT control systems are equipped with an RS-485 interface and IN.TOUCH 2 remote control app.

Compatible with a wide selection of topsides such as IN.K330, IN.K500, IN.K800 & IN.K1000 which auto-detect by the system upon connection.

Please contact us to confirm compatibility with your control system before ordering.

Please note, IN.Temp is not compatible with older Gecko systems such as the IN.XE or IN.XM.

If you have a IN.Y series pack which doesn't have the RS485 connection, you can use Gecko IN.Grid which allows you to connect and synchronize an external heat source. Click here to view third party heat pumps.

It will need to be mounted to a level and sturdy base. For further details on where to install - please click here.

The IN.TEMP has 1.5" connections and you will need to install a bypass kit so you can isolate it, if required.
